7.5 CONSOLE MAST REMOVAL
1) Remove the console as outlined in Section 7.1.
2) Remove the handlebar as outlined in Section as outlined in Section 7.2.
3) Remove the 4 screws holding the console mast to the frame (Figure A).
4) Pull the wires out the bottom of the console mast and remove the mast (Figure B).
5) When installing a new console mast, be sure to pull the console wires up through the new mast prior to installing the 4 screws into the frame.
6) Test the bike for function as outlined in Section 7.24.

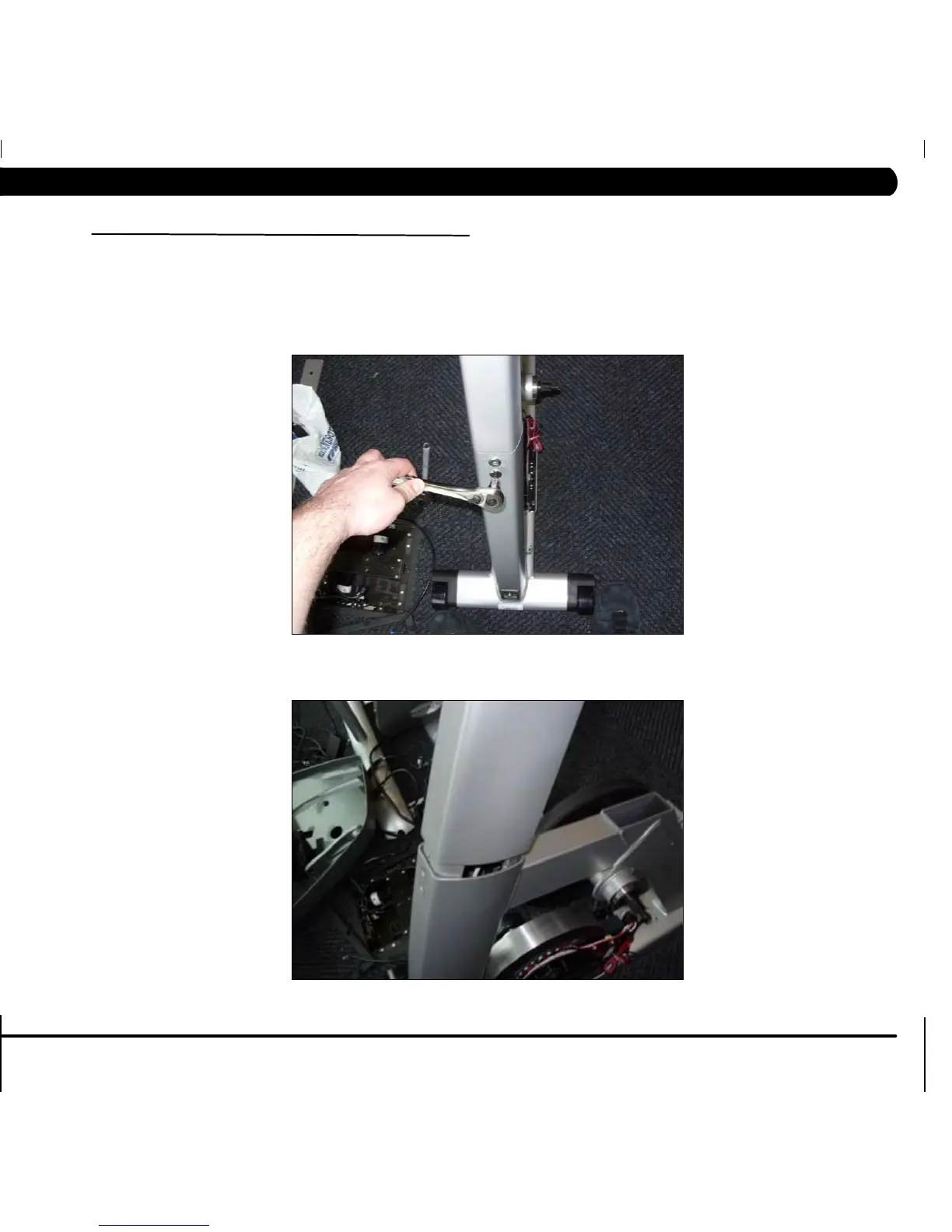

FIGURE A
FIGURE B
