7.6 ENTERTAINMENT PORT REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE
1) Remove the 4 screws holding the entertainment port to the frame (Figure A).
2) Lean the E-port away from the frame and disconnect the coax and power wires (Figure B).
3) Reverse Steps 1-2 to install a new E-port.

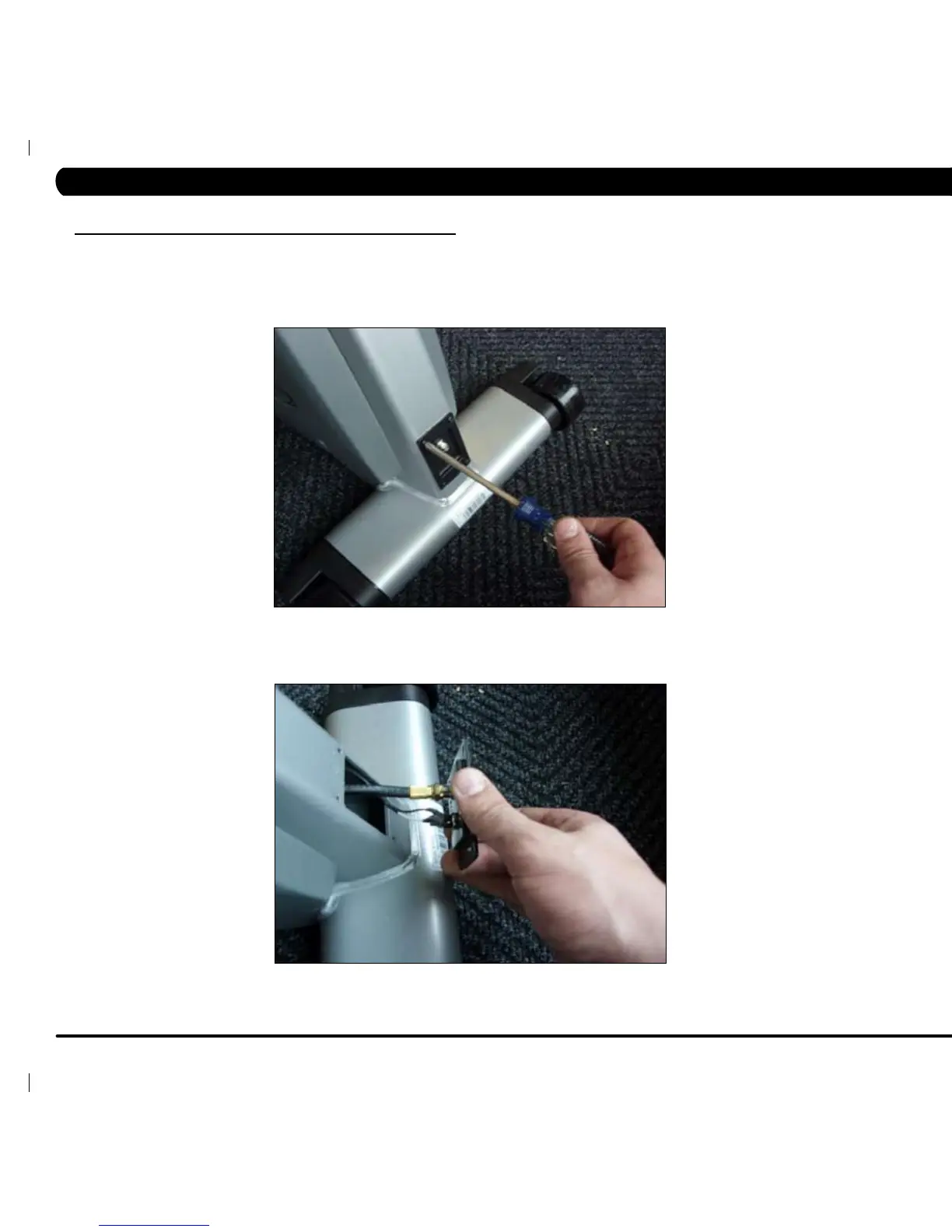

FIGURE A
FIGURE B
