36
1) Remove the seat pad as outlined in Section 7.7.

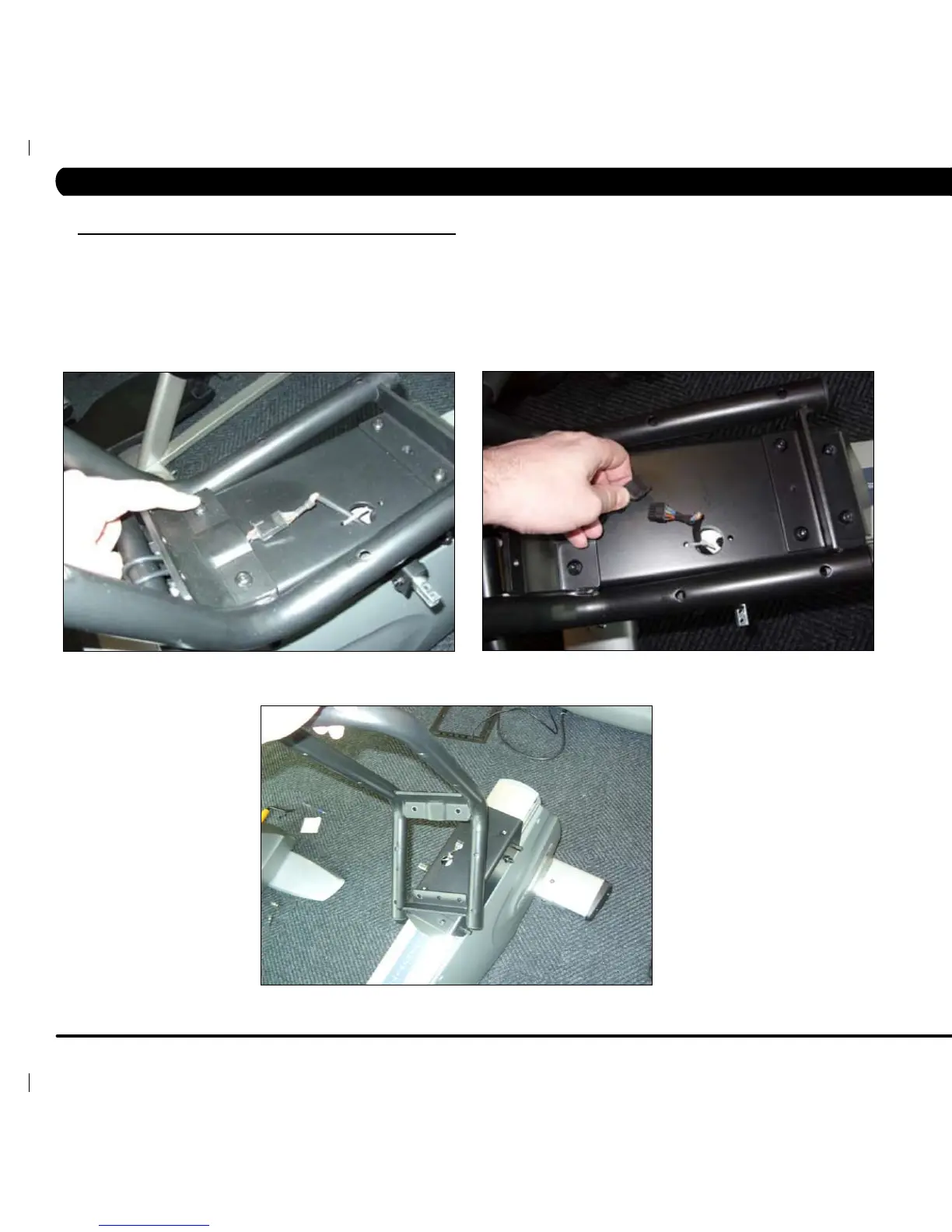

2) Remove the 4 screws holding the upper seat frame to the lower seat frame (Figure A).
3) Disconnect the HR handlebar wire (Figure B).
4) Remove the upper seat frame (Figure C shown with back pad and HR handlebar also removed).
5) Reverse Steps 1-4 to install a new upper seat frame. NOTE: The HR handlebar wire must be hooked up prior to installing the screws from the upper
seat frame to the lower seat frame.
FIGURE A
FIGURE B
FIGURE C
7.10 UPPER SEAT FRAME REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE
