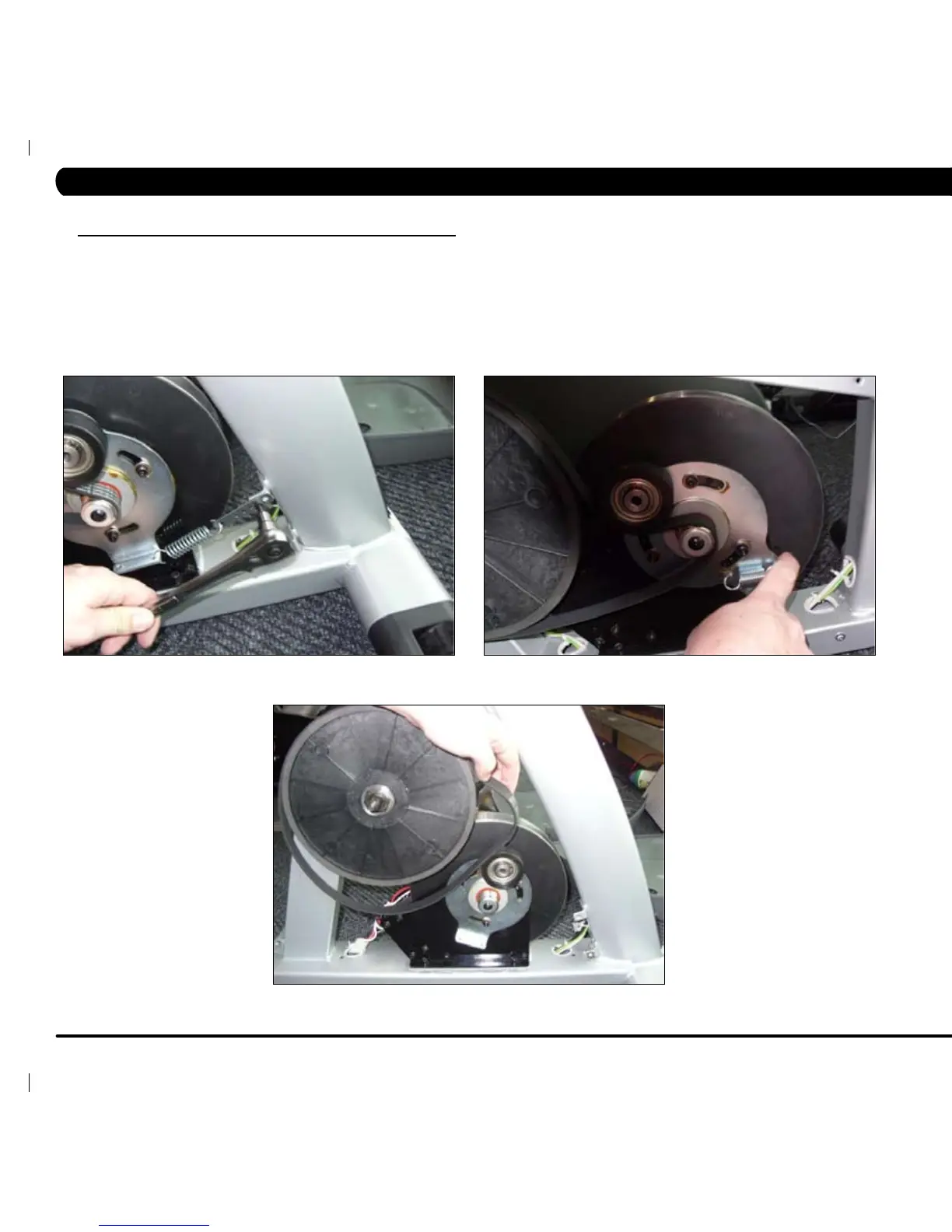

7.19 DRIVE BELT REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE
1) Remove the front shrouds as outlined in Section 7.18.
2) Remove the idler tension screw (Figure A).
3) Unhook the spring from the idler and remove the spring and 9 hole plate.
4) Rotate the idler so that the tension on the belt is loosened (Figure B).
5) Remove the belt (Figure C).
6) Reverse Steps 1-5 to install a new drive belt.
7) Test the bike for function as outlined in Section 7.24.
FIGURE A FIGURE B
FIGURE C
46
