7.13 HR GRIPS / LEVEL BUTTON REPLACEMENT
1) Using a flat screwdriver, pry the bottom silver metal HR plate away from the plastic of the HR grip (Figure A).
2) Remove the 3 screws holding the HR grip together (Figure B).
3) Disconnect the HR grip wire and level button wire and remove the two halves of the HR grip (Figures C & D).
4) Reverse Steps 1-3 to install new HR grips.
5) Test the bike for function as outlined in Section 7.24.
CHAPTER 7: PART REPLACEMENT GUIDE

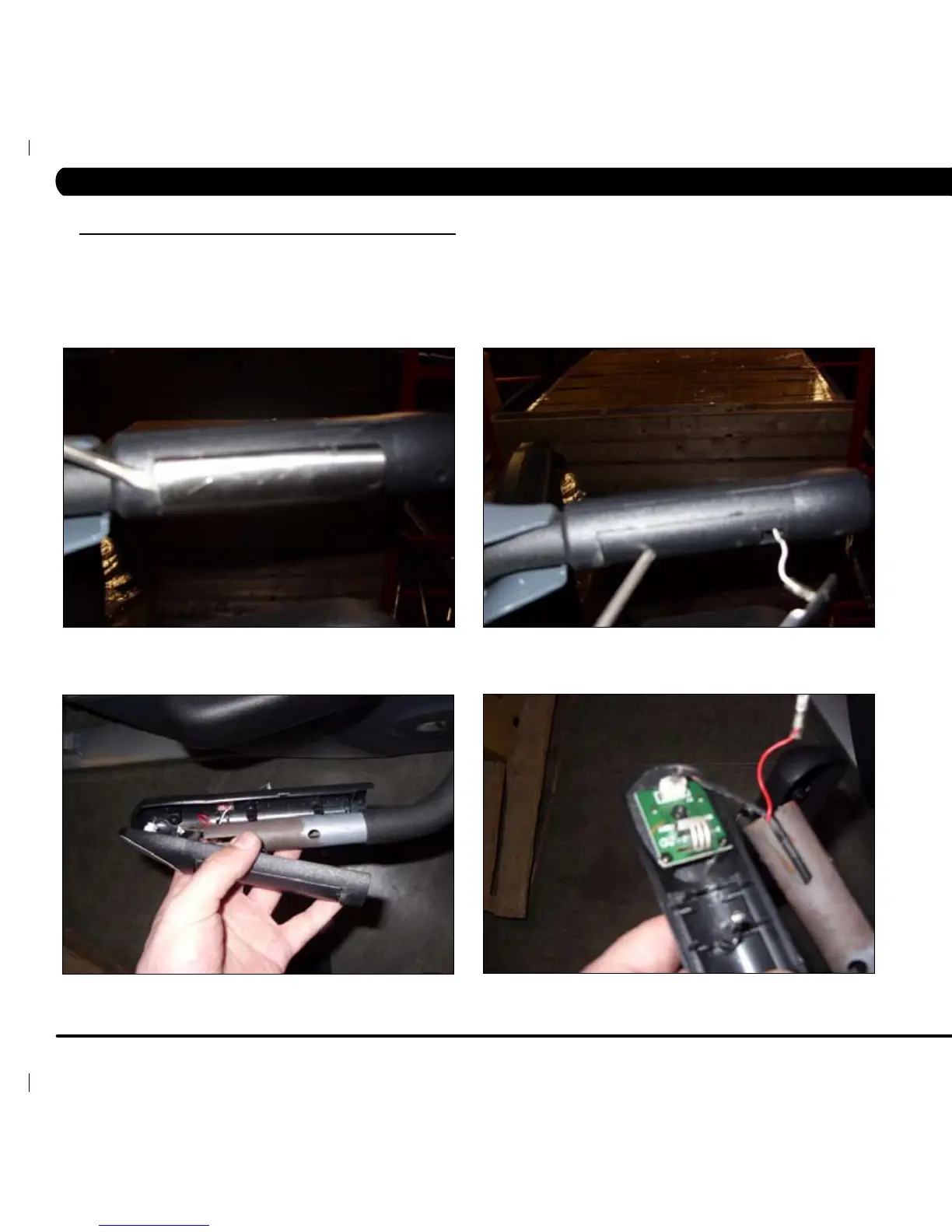

FIGURE A FIGURE B
FIGURE C FIGURE D
