8.4 ASSEMBLY INSTRUCTIONS CONTINUED
HANDLEBAR

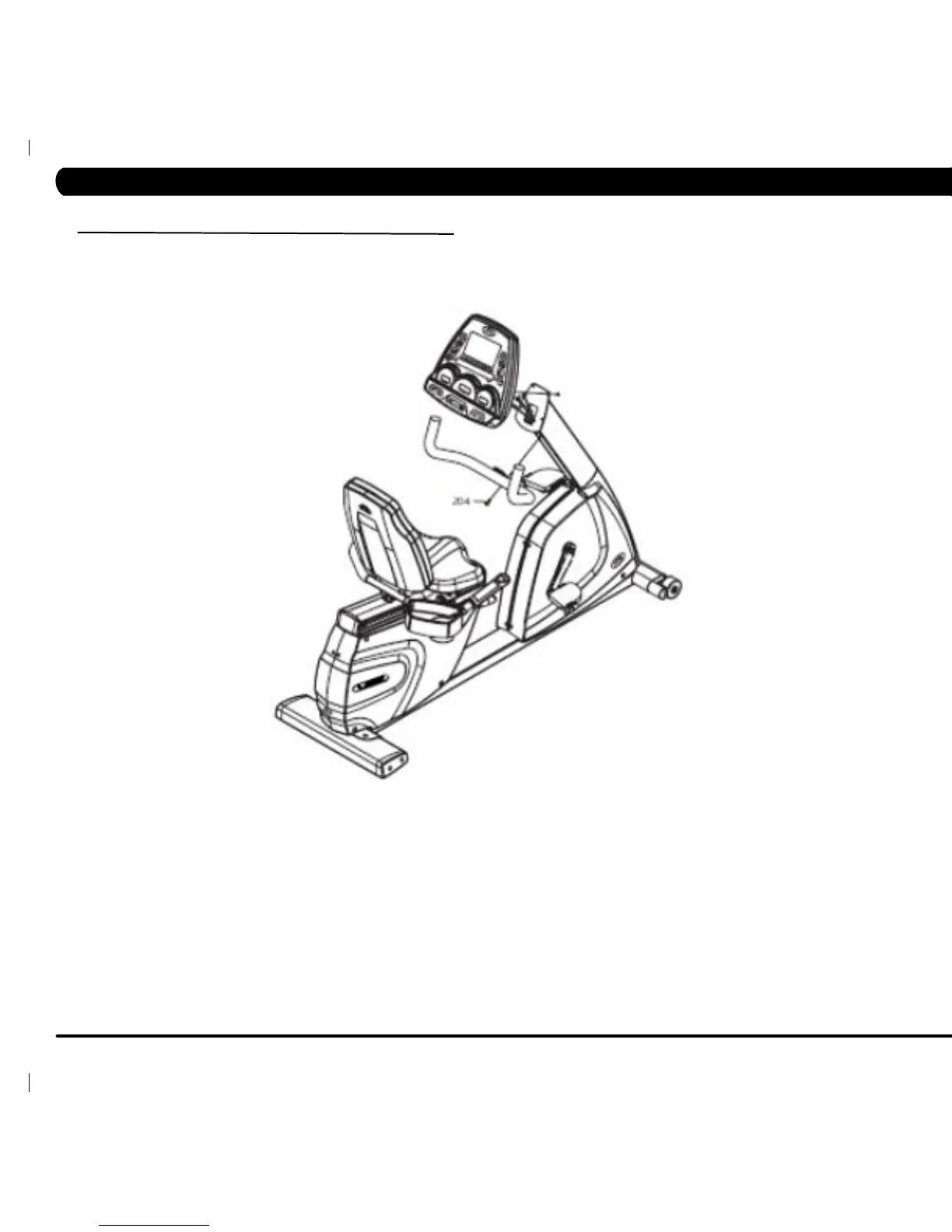

Mount the upper handlebars to the console mast using four screws (Z04). Tighten with the #5 Allen Wrench (Z32).
CONSOLE
Remove the four mounting screws from the back of the console. Connect the wire harnesses and heart rate wires that come from the console mast into
the plugs located in the back of the console. Attach the console to the mast with the four screws removed earlier in this step.
STEP 6
CHAPTER 8: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
