44 Chapter 2: Getting started with your Matrox 4Sight EV6 unit

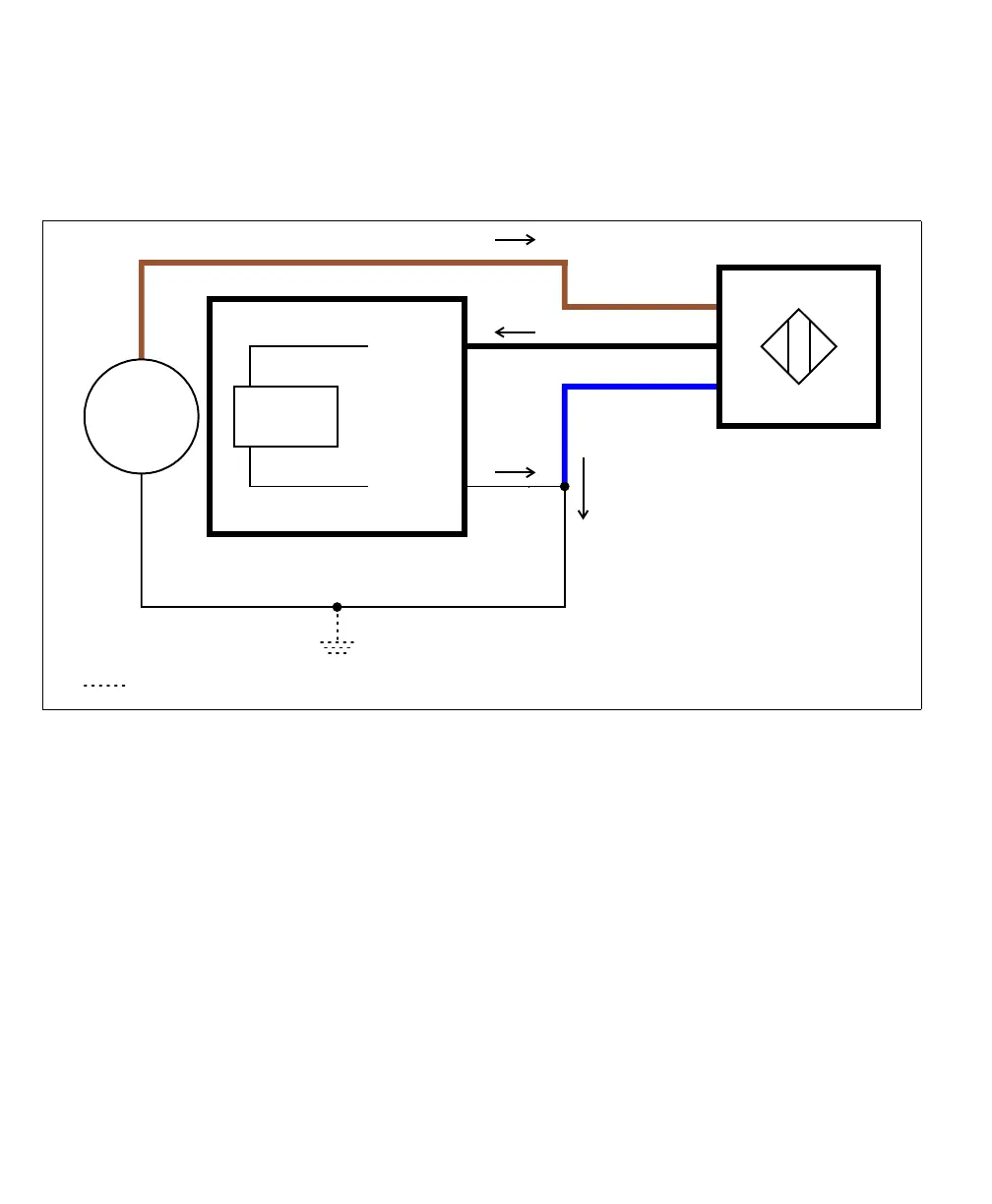

Connecting a 3-wire PNP proximity sensor to an auxiliary input signal
Connect a 3-wire PNP proximity sensor to a Matrox 4Sight EV6 auxiliary input
signal, as shown below.
Equivalent circuit only
Brown wire
Black wire
Blue wire
3-wire PNP
proximity sensor
24V
Sensing
Circuit
AUX INn+_
AUX INn-_
Matrox 4Sight EV6 in a sinking
configuration
+
-
Optional because the auxiliary input signals are electrically isolated.
