70 Appendix B: Technical reference
Chassis and dimensions
Matrox 4Sight EV6 provides a fanless design, with no moving parts. This reduces
the need for physical maintenance and the cost associated with replacing
consumable parts (for example, filters and fans).
The mounting options available for Matrox 4Sight EV6 are:
• Four keyholes.
• Four 6-32 UNC threaded inserts.
Important Ensure that Matrox 4Sight EV6 is mounted to equipment that is sturdy and
durable (for example, metallic equipment). When mounting the unit using the
keyholes, use fasteners of an appropriate size and length to mount securely. When
mounting the unit using the threaded inserts, ensure the threads of the screws
match those of the inserts and that their length is enough to mount securely.

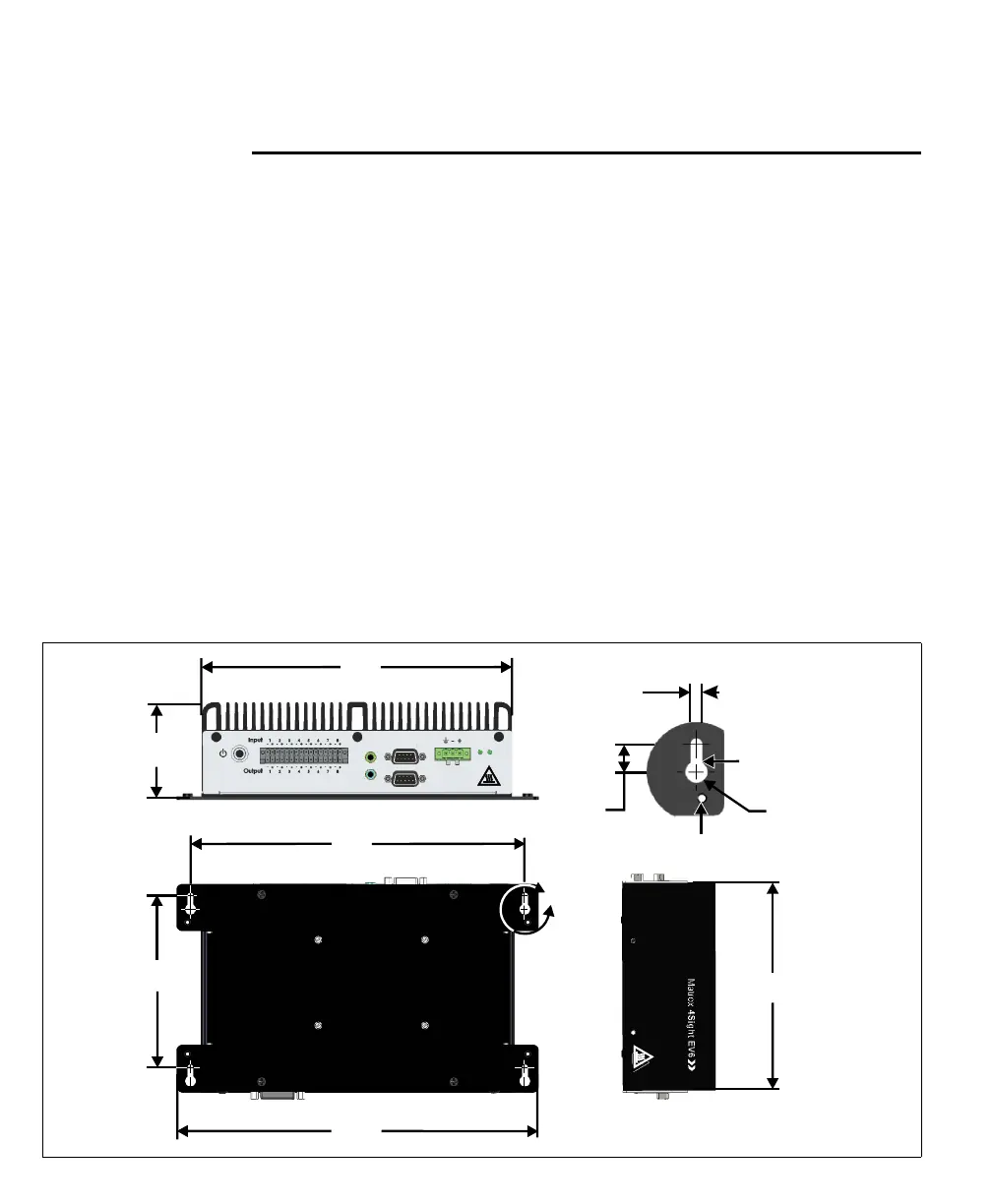

Matrox 4Sight EV6 weighs 2 kg and has the following dimensions:
[8.9]
225.0
[2.7]
68.05
A
[9.5]
240.0
[4.9]
124.0
[10.2]
260.0
[5.8]
147.5
[0.17]
4.25
[0.39]
10.0
[0.16]
R4.0
Audio
COM1
-232/485RS
-232RS
COM2
Input
9-27 VDC
1- A55
HDD
On
Out
In
Dimensions in [inches] and mm
Keyhole
6-32 UNC threaded insert
DETAIL A
