52 Chapter 3: Adding devices to Matrox 4Sight EV6
Overview
Matrox 4Sight EV6 is designed to accommodate hardware additions through its
internal connectors:
• An M.2 connector. An M.2 mass storage device comes already attached from the
factory.
• Two SATA 3.0 data connectors and one SATA 3.0 power connector. Connect a
third-party SATA mass storage device to provide additional mass storage for your
unit.

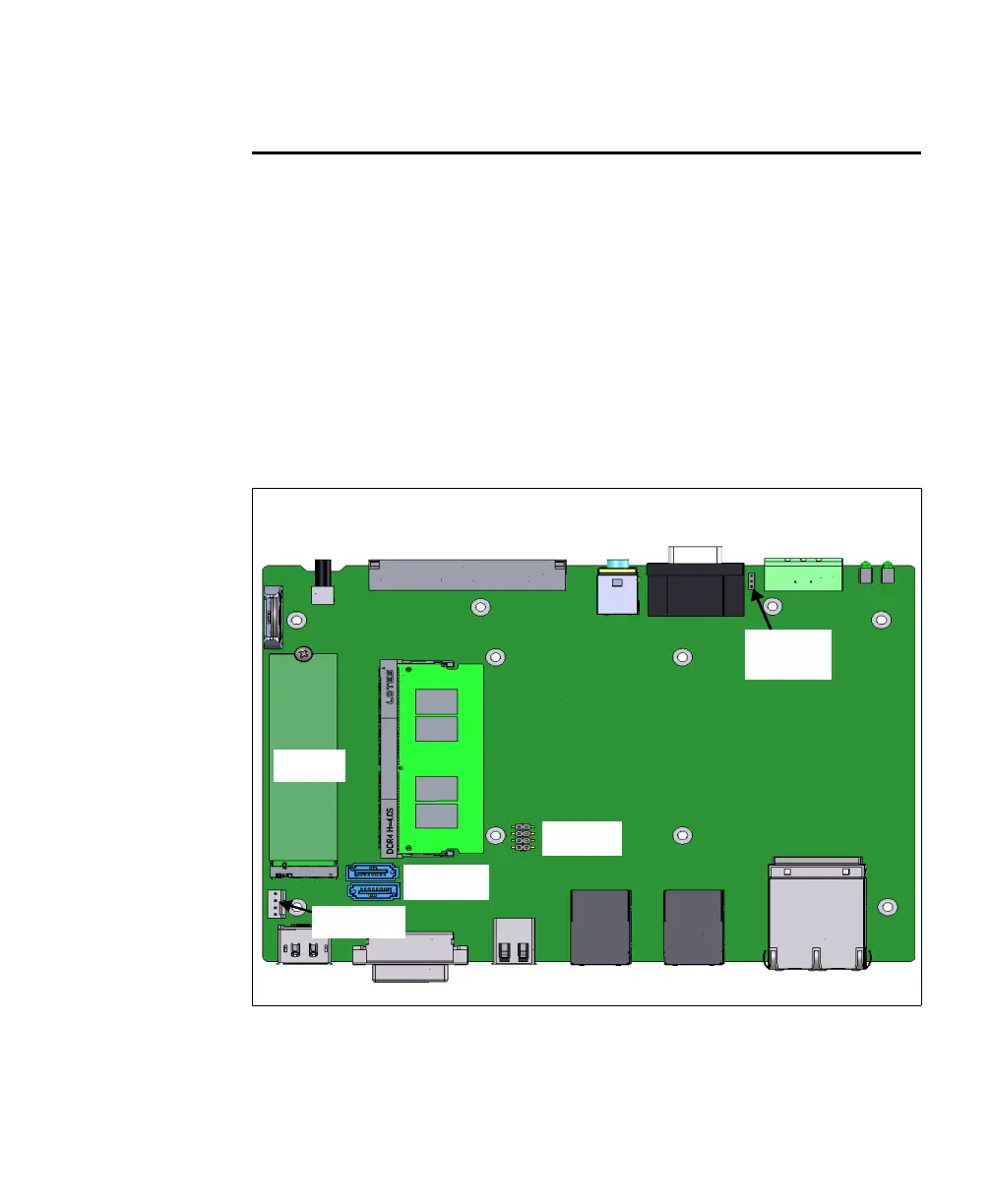

The following diagrams provides a reference to these connectors.
SATA data
connectors
Recovery
connector
M.2
connector
RS-485
termination
connector
Matrox 4Sight motherboardEV6
Internal connectors
SATA power
connector
Back panel
Front panel
