8 Chapter 1: Before you begin
Overview
Matrox 4Sight EV6 is a self-contained, fanless, industrial computer that integrates
processing and display capabilities, along with image capture from multiple GigE
Vision and/or USB3 Vision cameras. Matrox 4Sight EV6 supplies networking,
industrial communication (over GigE Ethernet ports or RS-232/RS-485 ports),
and general purpose auxiliary I/O signals (digital I/Os) with linear/rotary encoder
support. It includes a Matrox Advanced I/O Engine for real-time synchronization
of a vision application with automation devices.

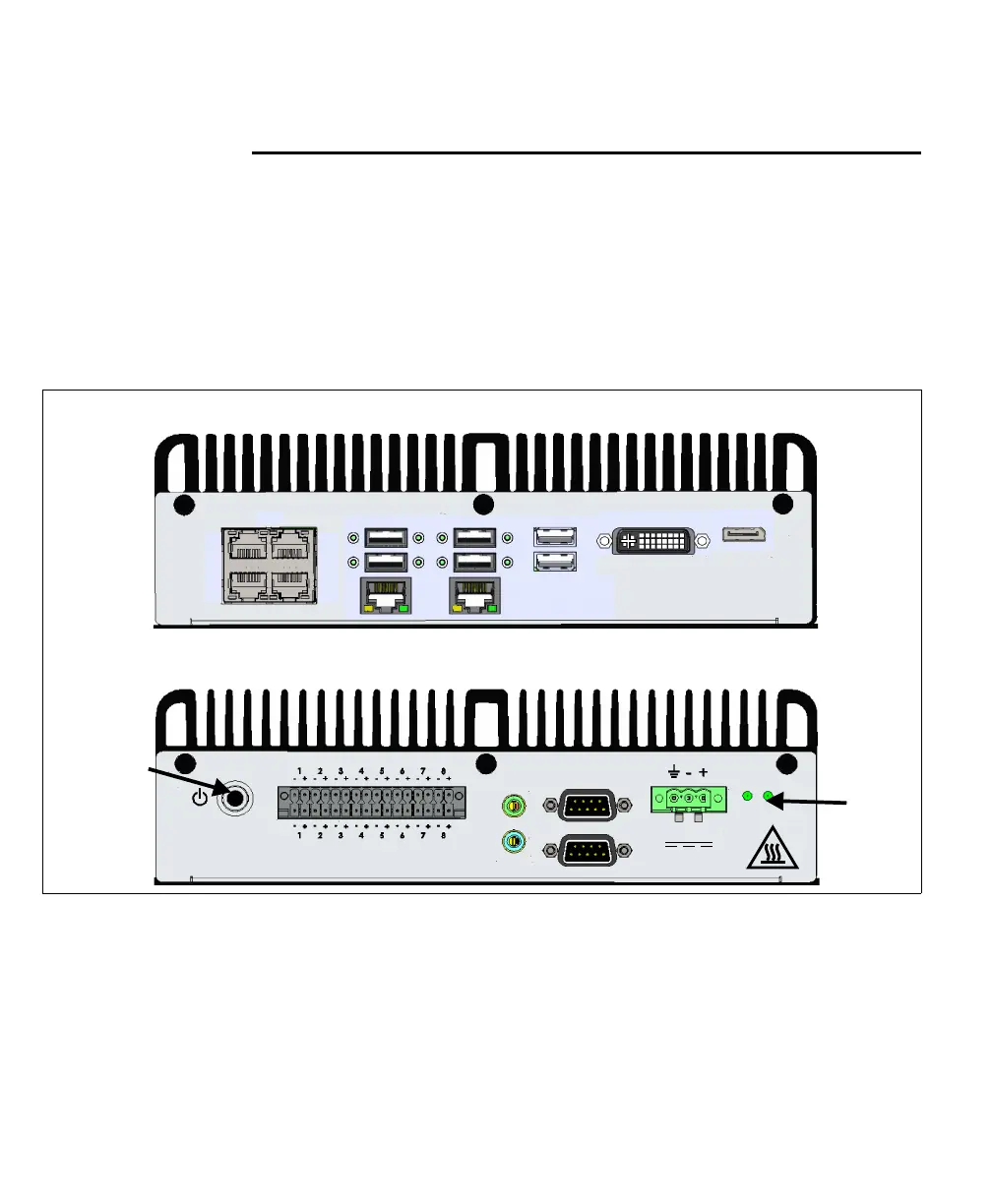

Back panel
Front panel
USB 3.0
LAN
2
LAN
1
USB 2.0USB 3.0
1
2
3
4
1
2
Yellow - Act/Link
Green - 100 Mbps
Orange - 1 Gbps
DP
DVI-I
3
4
1
2
PoE
HDD
On
Input Rating
9-27 VDC
1- A55
COM1
-232 / 485RS
RS-232
COM2
Audio
OUT
IN
Output
Input
LEDs
Power
button
