Pinout descriptions of external connectors 75
Gigabit Ethernet connectors
The 6 Gigabit Ethernet connectors (10/100/1000 BaseT) are identical 8-pin,
RJ45 connectors. The pinout of these connectors follows the 1000 BaseT Gigabit
Ethernet standard found in the IEEE 802.3-2002 standard. The 4 connectors
identified as “PoE” support Power-over-Ethernet.
• When enabled, each Matrox 4Sight EV6 PoE port is powered at +48 V
dc
, for a
maximum load of 15.40 Watts.
Important A PoE camera connected to your Matrox 4Sight EV6 must be electrically isolated
from the Matrox 4Sight EV6’s chassis ground (functional ground). If required,
use some isolation material between the camera and its fixture (camera mount).
The Matrox 4Sight EV6 units provide a connected PoE device +48 V
dc
of power.
The PoE +48 V generated by the Matrox 4Sight EV6 unit is not electrically
isolated from the chassis ground. It is important to avoid any alternate current
return path to the Matrox 4Sight EV6 unit, which could jeopardize proper
operation of your PoE camera.
The network interface can be used for acquisition from GigE Vision cameras, for
general purpose, Gigabit network communication, or for communications with
external devices using EtherNet/IP or Modbus industrial protocols. Typically, the
PoE connectors are used to connect GigE Vision cameras.
DVI-I video output connector

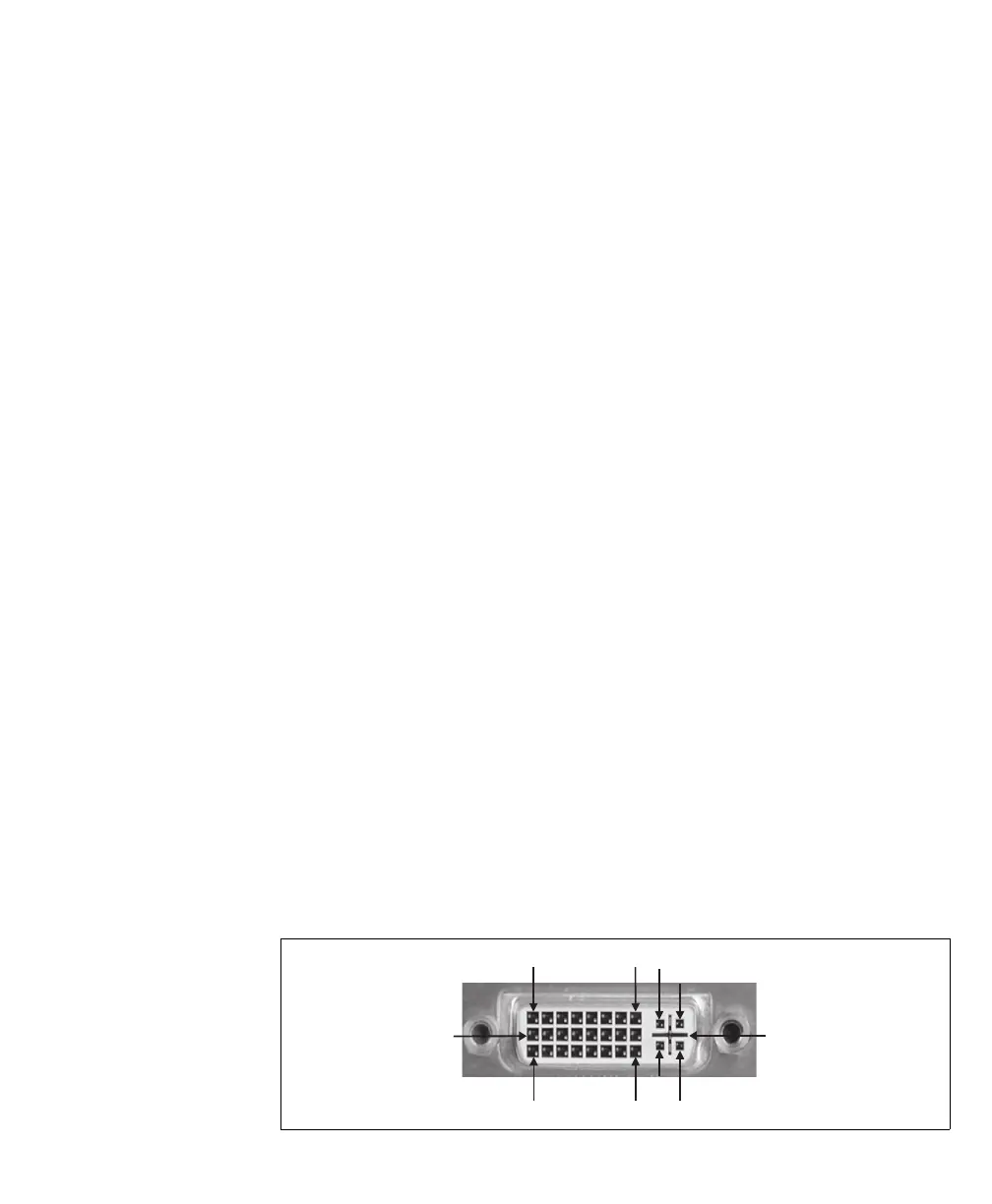

The DVI-I video output connector is a 29-pin female DVI connector. This
connector is used for digital or analog video output and can support the
HDMI 1.4 standard. The connector’s pinout is outlined in the following table.
• Output voltage and maximum current: 5 V, 0.20 A.
• Auto-resettable fuse: Yes.
