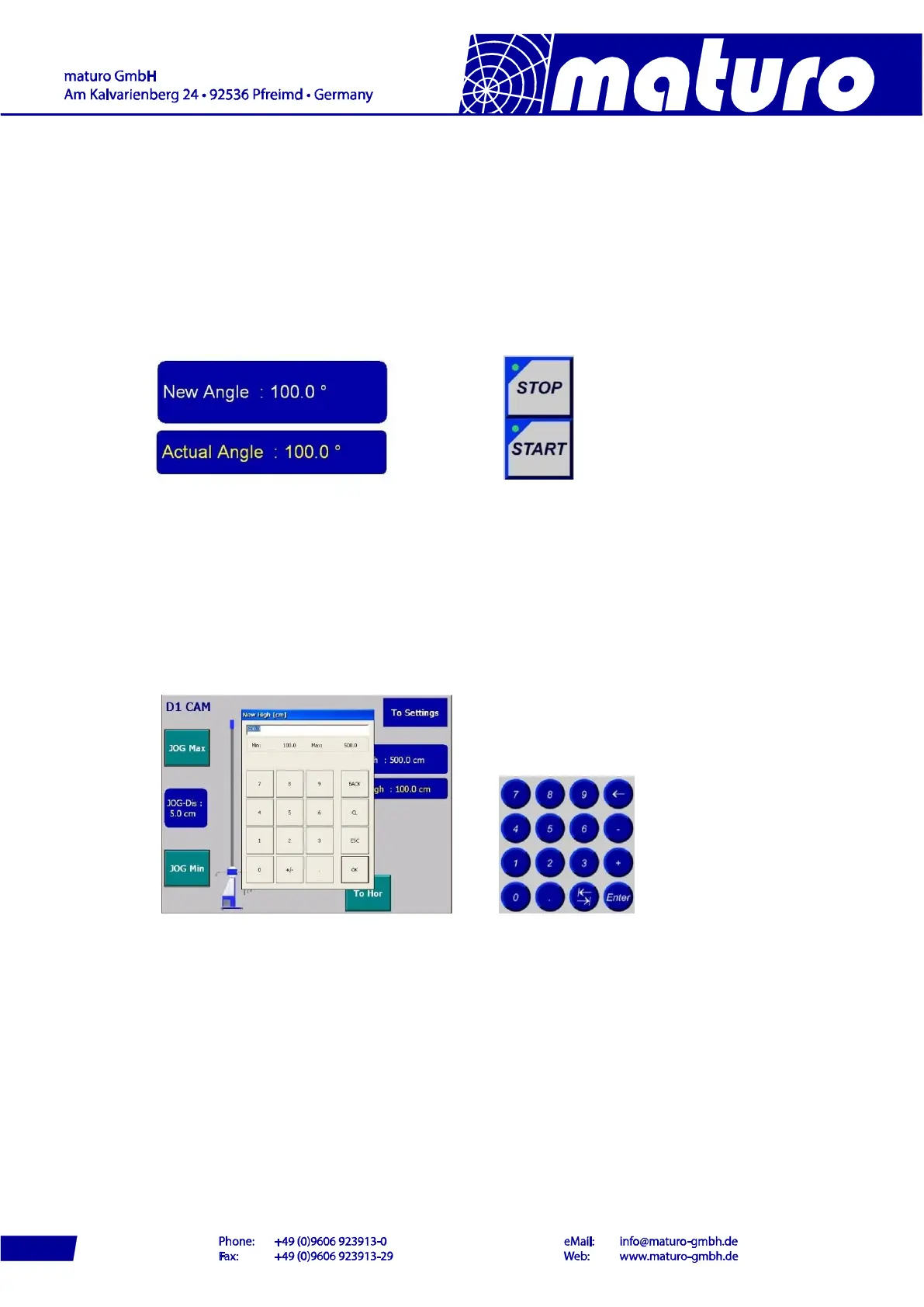

4.4 Actual and Target Position
The actual position is indicated in the respectively column “Actual Angle/High”.
Any target position can be entered at “New Angle/High” and afterwards the positioning can
be activated with the “START” key.
During the movement the positioning can be stopped with the “STOP” key and activated
again with the “START” key.
Note: The “START” key is only valid for the selected device whereas the “STOP” key is valid
for all devices.
4.5 Input of a Value
The input of any numerical value can be entered by either the Touch panel or the number
pad.
By pressing „New Angle/High“-key the input is activated.
The following input field appears:
Any numerical value within the displayed minimum and maximum limits can be entered.
The value is applied by pressing “OK” key.
The input can also be done by the number pad and applied with “Enter” key.
12
