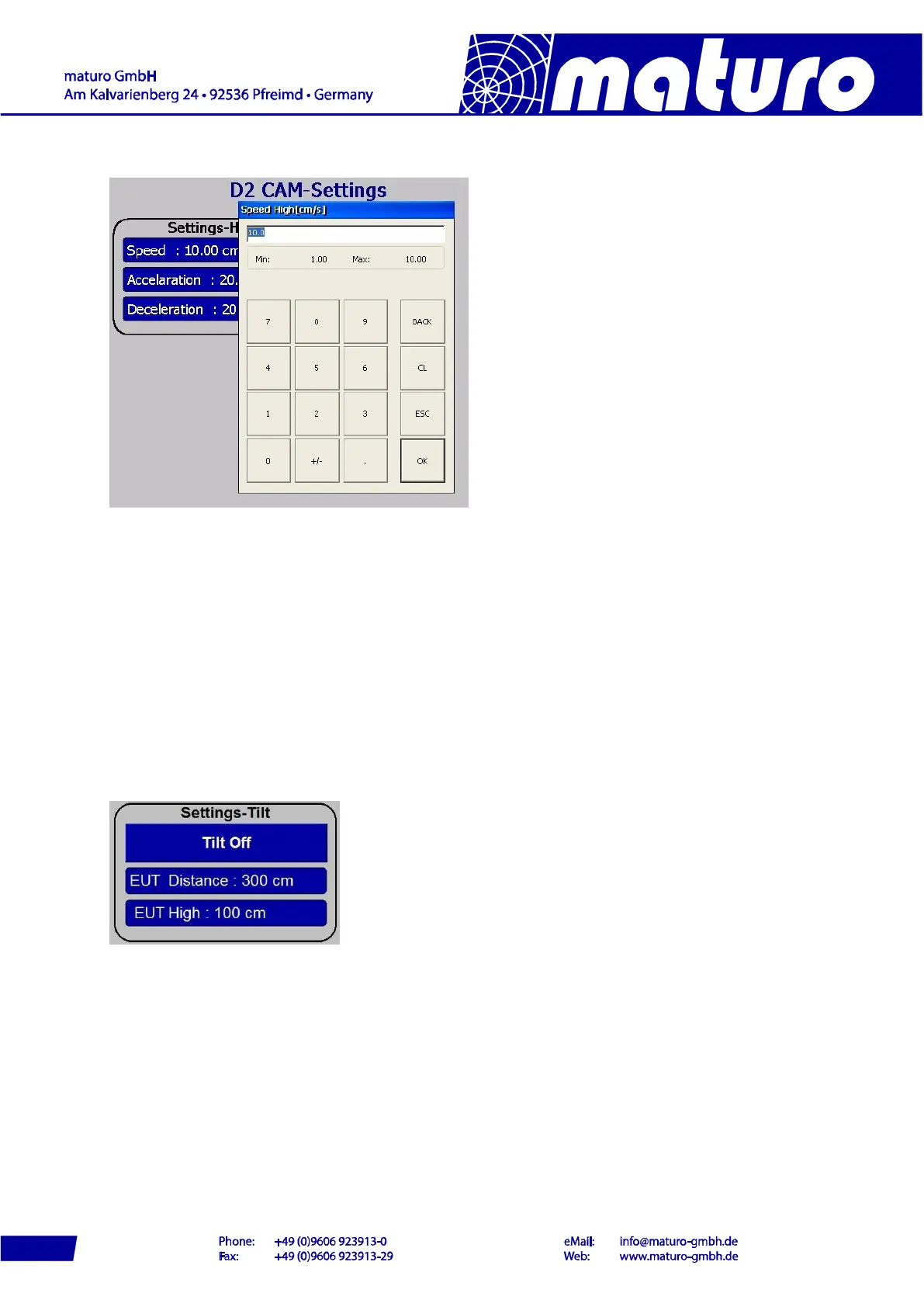

4.6 Settings
Speed and Acceleration/Deceleration
The speed and acceleration for both rotation axes can be changed by pushing the “Speed” or
“Acc” keys at the Touch panel. Different speeds and accelerations can be entered within the
indicated limits.
The indicated values are always used at operation directly from the NCD. At remote control
via GPIB the values of speed and acceleration can be adjusted separately by the software.
Note: Acceleration/Deceleration cannot be set with GPIB
4.7 Settings for Tilt-Function and measurement distance at TAM
At this menu it is possible to activate or deactivate the tilt function and to set the
measurement distance and EUT height.
EUT height:
- Before referencing balance the antenna with the levels.
- After referencing or if the EUT height was changed with key “EUT High”, the new EUT
height must first be confirmed by pressing the “Start” key and moving to the new
height.
- The movement of the antenna mast is now possible again.
With these settings the required tilt angle depending on the distance is calculated
automatically.
13
