LED Indicator and Charge Status
Fast charge (Red LED)
- The charger is in constant current mode.
- Charge current is at the maximum.
Final charge (Red LED)
- The charger is in constant voltage mode.
- Charge current is less than the maximum.
- The battery is normally 80-95% charged.
- The charger stays in this mode until the charge current decreases to charge termination level.
Charge completed (Green)
- The charge is stopped.
- Charge current is zero.

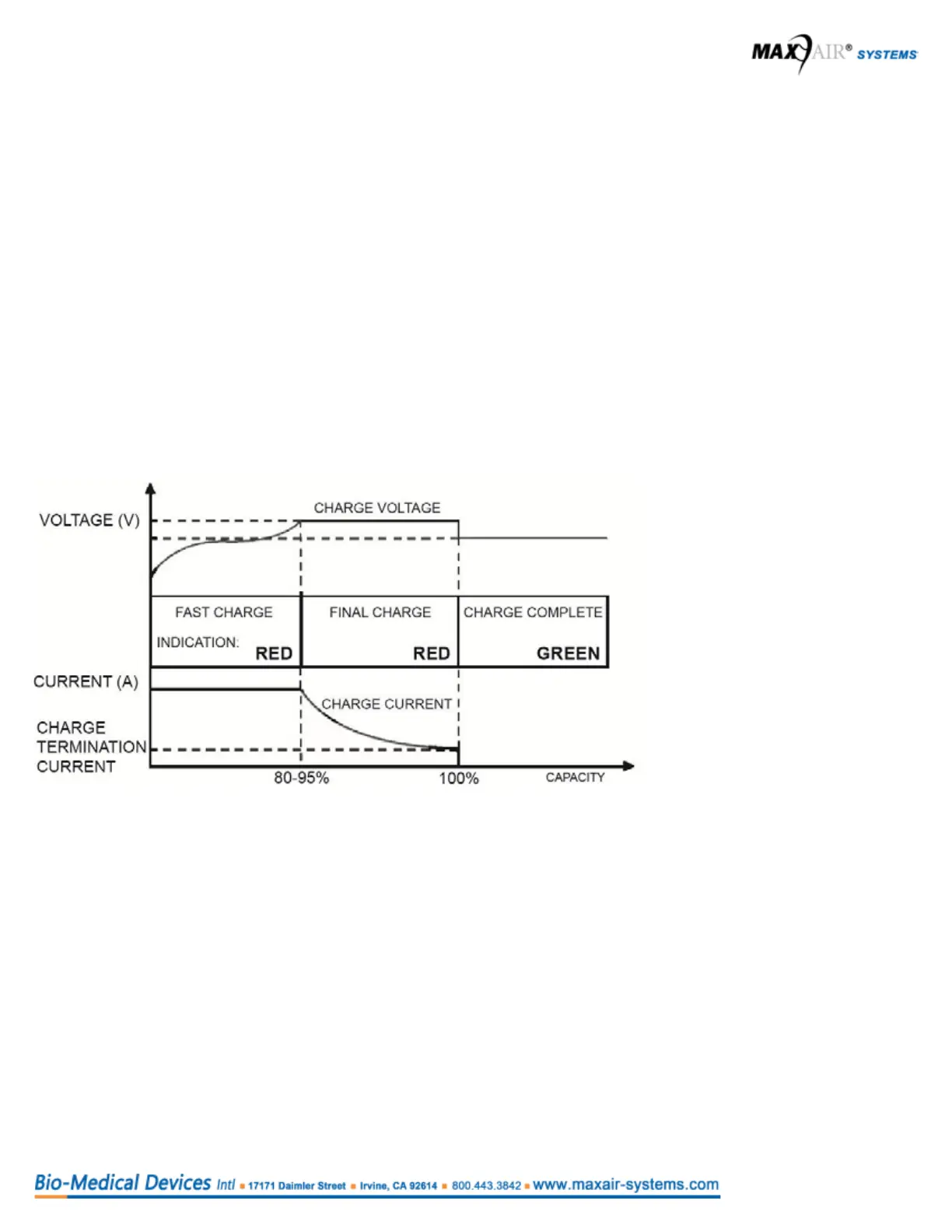

Charging Diagram
