Gang Battery Chargers
2601-06 6-Gang Battery Charger
Includes six 2600-01 Chargers that can be charged simultaneously from one wall power outlet.
2601-06B 6-Gang Charger Bracket
The 6-Gang Charger Bracket is for use with from one to six already purchased 2600-01 Chargers.
Installing the 6-Gang Battery Charger and Bracket
The 6-Gang Charger and 6-Gang Charger Bracket ship with basic mounting hardware for mounting into solid wood and
plasterboard.
Locate a suitable location for placing them on a surface. If it is desirable to mount them to a wall, cabinet, etc., use the mounting
hardware supplied.
Charging Batteries with the 6-Gang Battery Charger
Plug the power cord into a standard 110v outlet.
If necessary, connect from one to six 2600-01 Chargers into the clips, at any given time, and connect the chargers to the six-
connector cable using the 1-6 charger connectors on the power cable.
NOTE
Each connected Charger’s LED should be green before a Battery is connected for charging.
Connect batteries to appropriate Chargers and the Charger’s green LED should turn red.
NOTE
If a charger LED remains red when a Battery is connected, the Battery is charged sufciently and is ready for use.
The Charger LED should change back to green when the Battery is charged, typically in 4-6 hours for a fully drained
Battery.

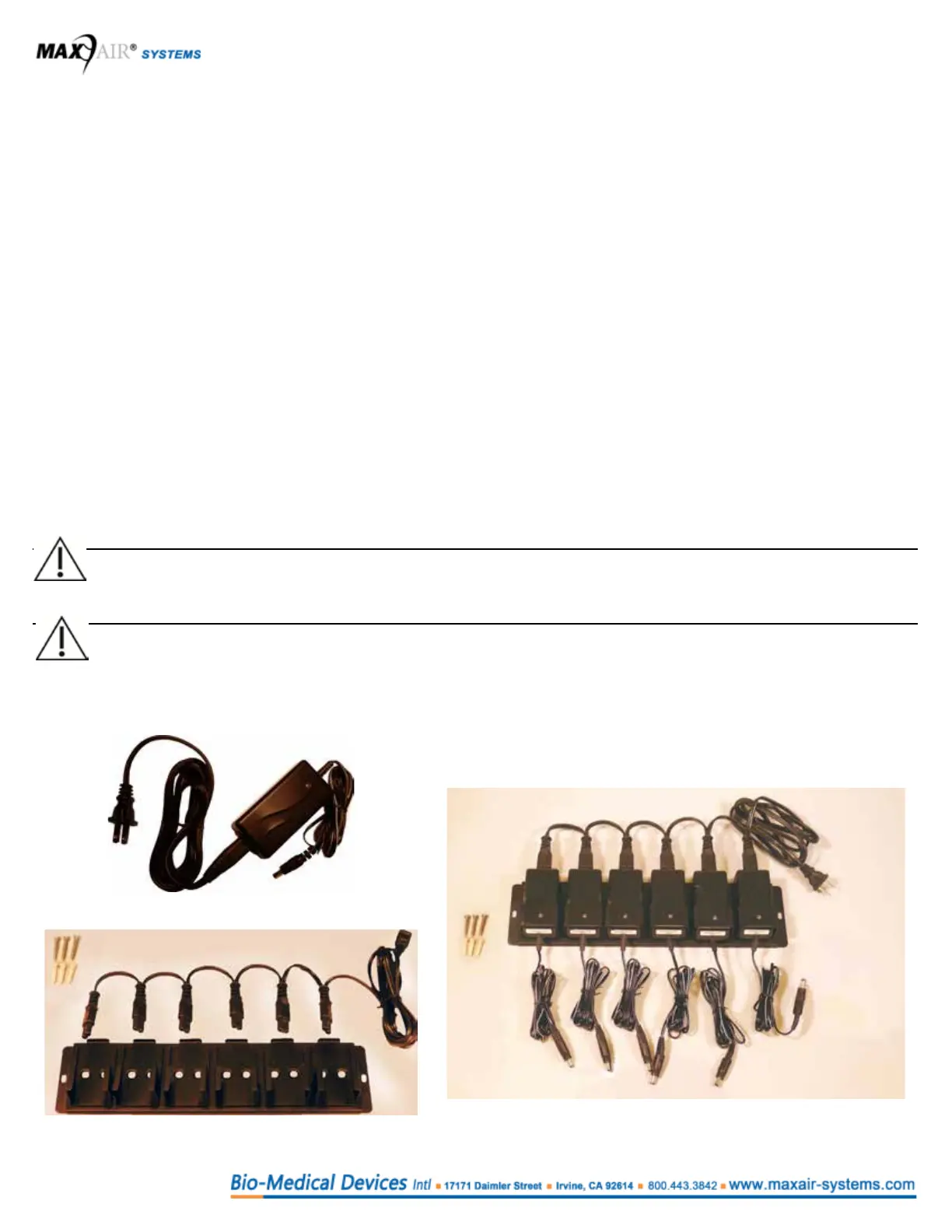

2600-01 (01432089)
2601-06B
2601-06
