Page 60 P/N 03521015 Rev K

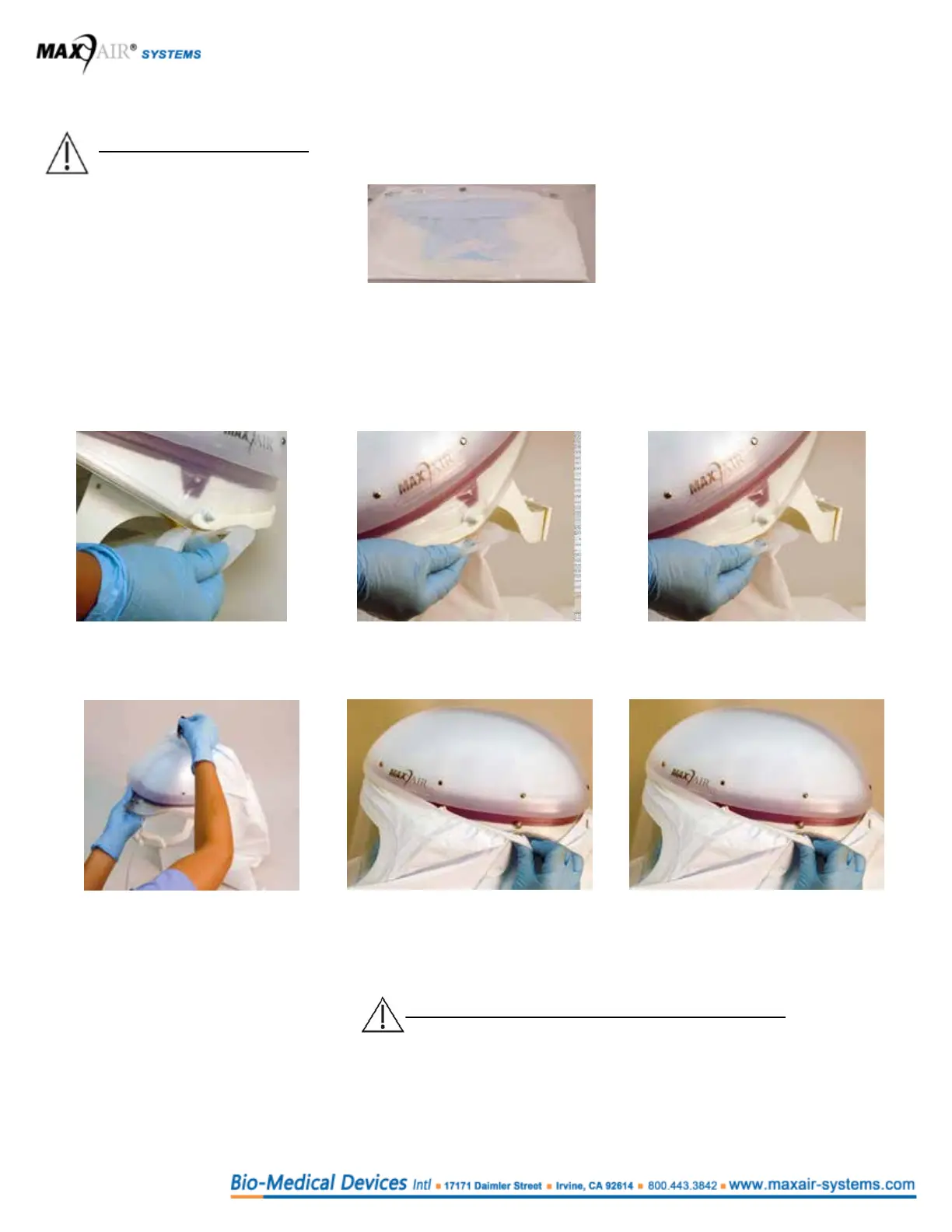

Prepare Shroud and Helmet for assembly
NOTE
Read Sections 1 through 13
before proceeding.
1.Remove Shroud from
packaging and lay shroud on
the counter with lens/snaps
facing up.
Assembly
2. Attach one side of the DLC alignment
hole to the Helmet side attachment post
(Cuff facing inward).
3. Secure the center DLC
alignment hole over the FCC
front alignment post.
4. Attach the other side of DLC to the
other Helmet side attachment post.
5. Hold helmet securely, grasp shroud’s
rear pull tab and pull shroud up and
over helmet.
6. Pull Shroud down over back of
helmet and fasten rear snap to
FCC T-Tab snap.
7. Pull shroud down around Helmet and
secure
rear side snaps to each FCC rear side
snap (Both sides).
Dis-assembly:
Reverse steps 2 through 7 to remove
Shroud from Helmet.
WARNING
Dispose of contaminated Shrouds according to your
Institution’s protocols.
