INTRODUCTION1 - 4
D-MAXE with OI-TS www.maxcessintl.comMI 2-292 1 C
1D-MAXE 1 Controller
2 Operator interface OI-TS
3Sensor(s)
4 Actuator (offset pivot guide)
5Material web
--- optional

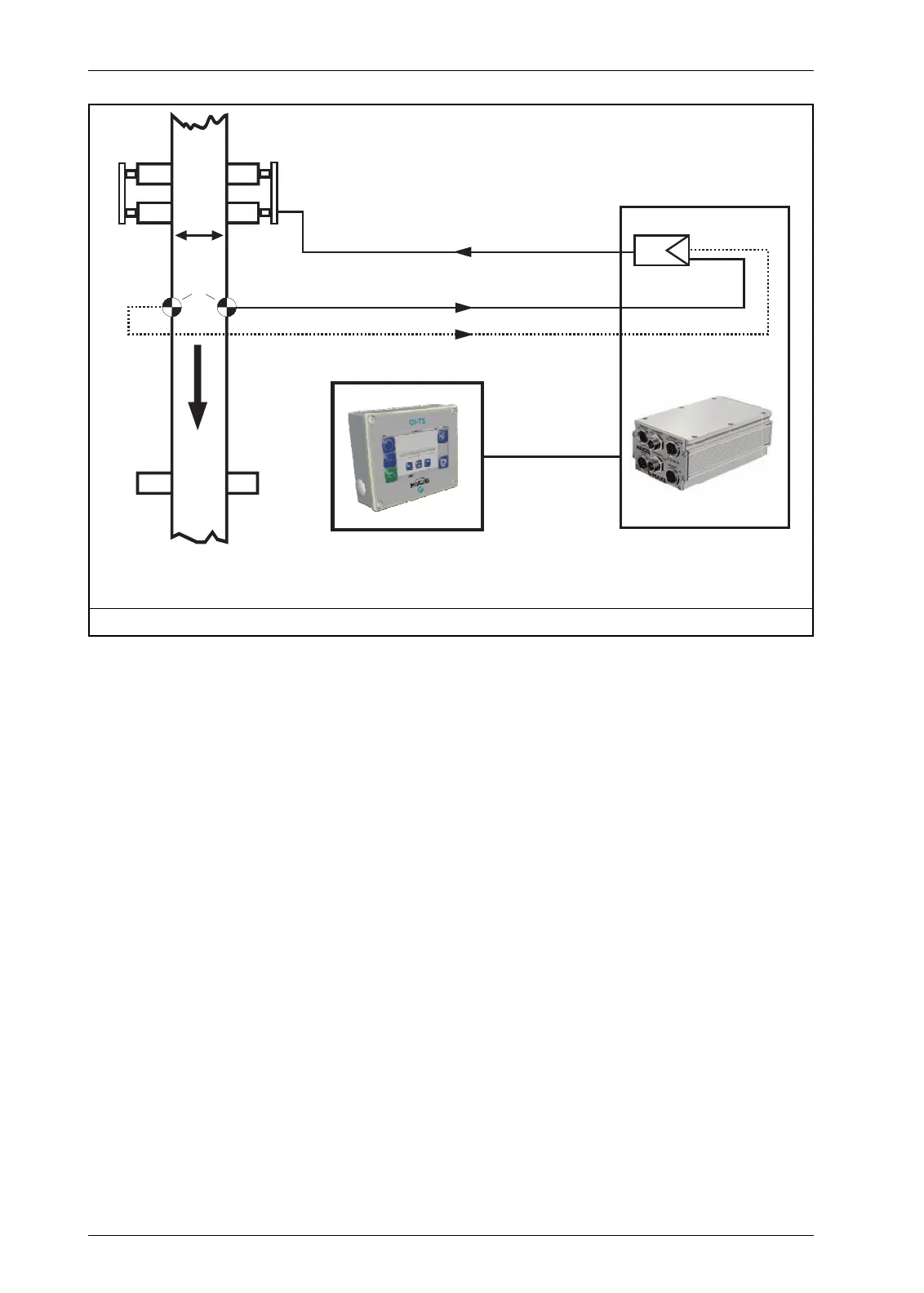

Figure 1.4: Operating principle of a control loop with modules of the D-MAXE system
D-MAXE
OI-TS
1
2
3
4
5
