INSTALLATION3 - 9
D-MAXE with OI-TS www.maxcessintl.comMI 2-292 1 C
Connections on the
D-MAXE 3 Controller
For technical details and additional information, please consult
Section
11 Technical Data .
Connection Designation
X1 Parallel inputs/outputs
X2/1 Ethernet
X2/2 Ethernet
X3 Servo-center transducer 1/Encoder 1
X4 Drive 1
X5 Sensor 1 (S1/S2)
X6 Power supply voltage
X7 Servo-center transducer 2/Encoder 2
X8 FifeNet/ OI-TS
X9 Sensor 2 (S3/S4)
X10 Drive 2
X11 Sensor 3 (S4/S3)
X12 Servo-Center transducer 3 / Encoder 3
X13 Drive 3

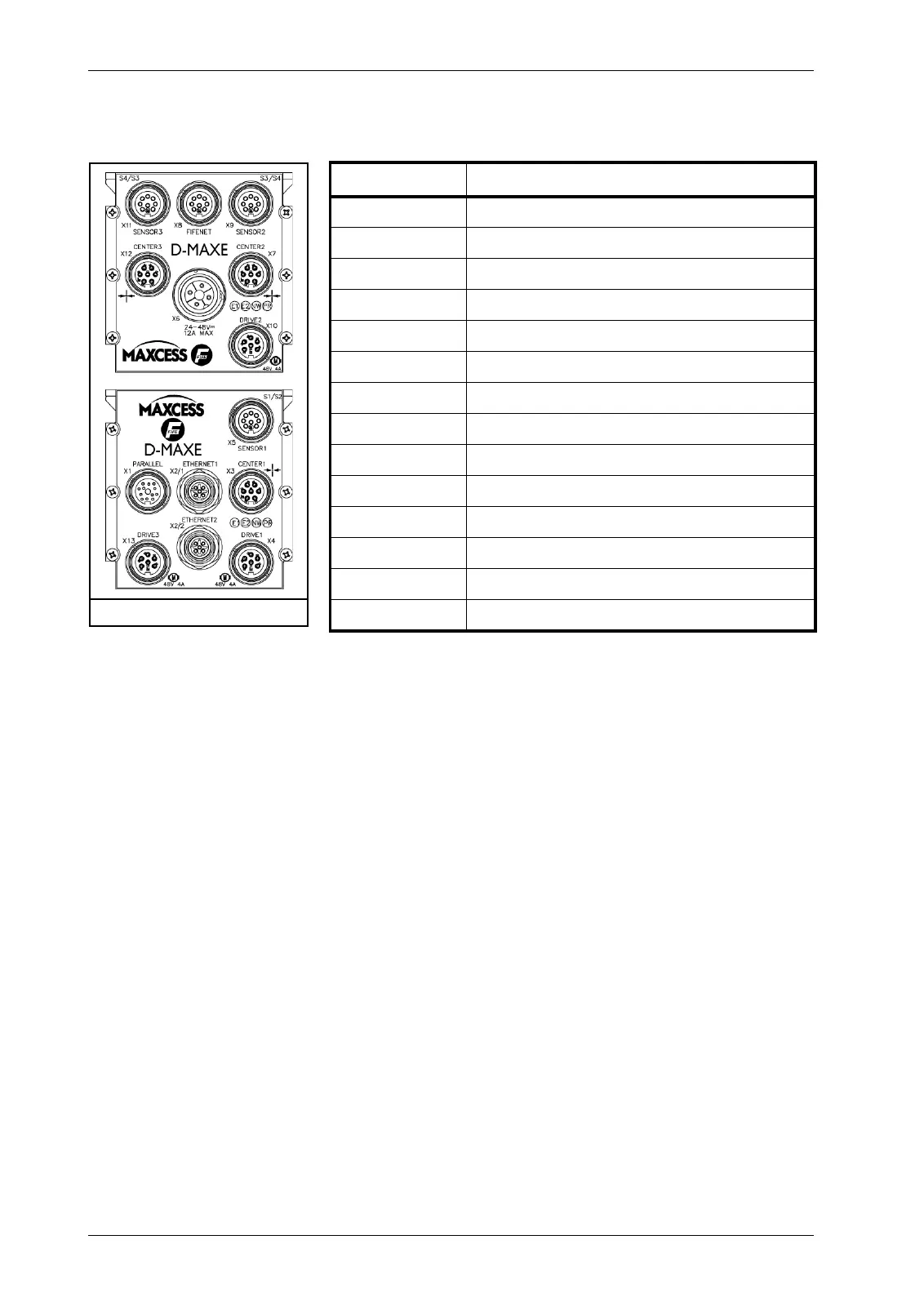

Figure 3.10: D-MAXE 3 Controller
