5 OPERATING THE CONTROLLER
User level All the functions required for normal operation of the D-MAXE
systems are available on the user level.
Buttons 1 select operating mode „Manual“
2 select operating mode „Servo-center“
3 select operating mode „Automatic“
4 Select available jobs (controller types)
5 Available for special applications only
6 Press and release: Open the
Job menu for the current job
Press and hold: Open the
Setup menu
7 and 8 „Automatic“ operating mode
: Move the guide point in
the sensor field of view
„Manual“ and „Servo-center“ operating mode: move
actuator
9 „Automatic“ operating mode
: resetting the guide point
„Manual“ operating mode: set the guide point
A Header: select devices/actuators

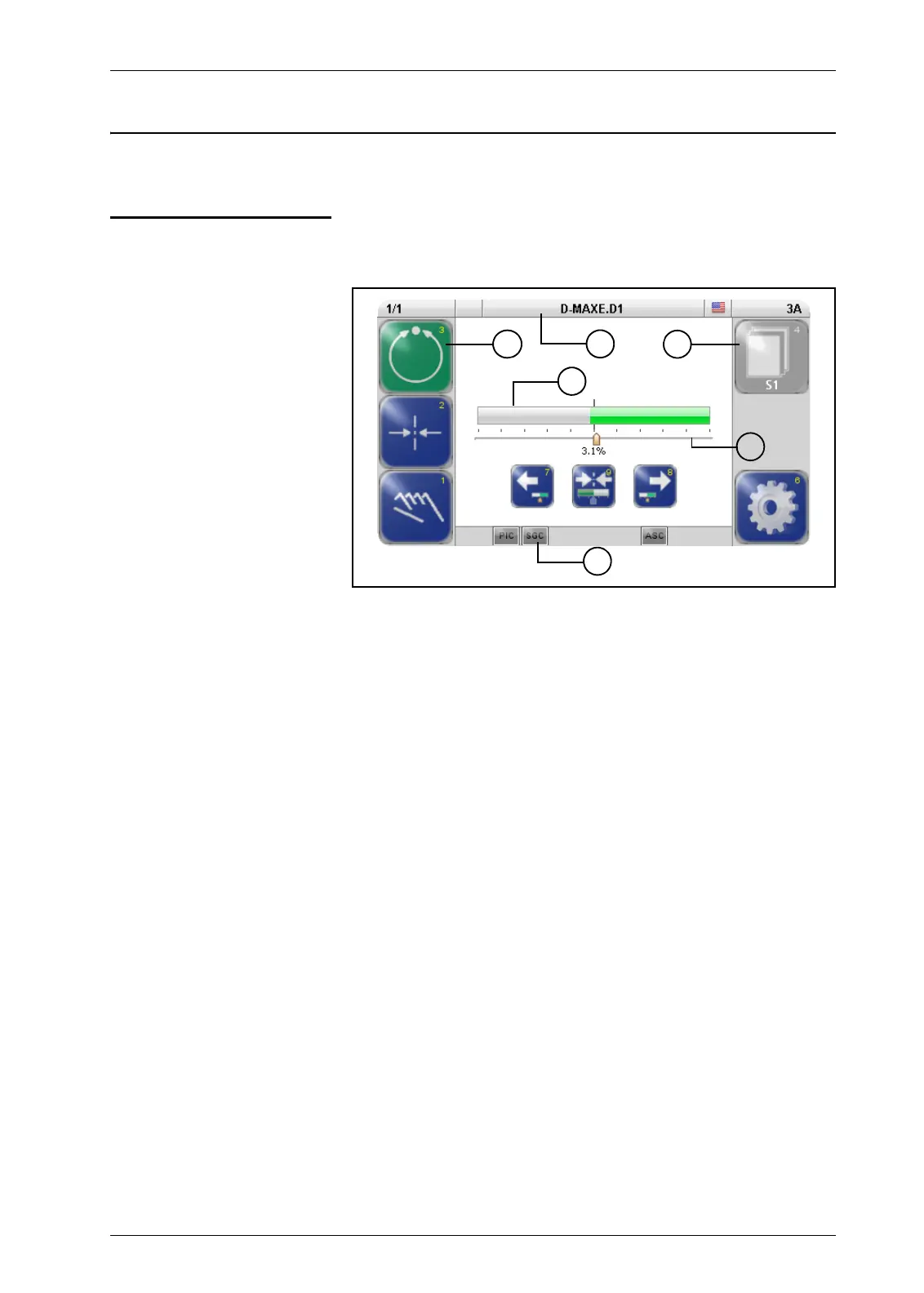

Legend A Header: Information about the D-MAXE system
BBar graph
„Automatic“ and „Manual“ operating mode: signal level of the
active sensor
„Servo-center“ operating mode: signal level of the servo-
center transducer
D
C
B
E
F
A
