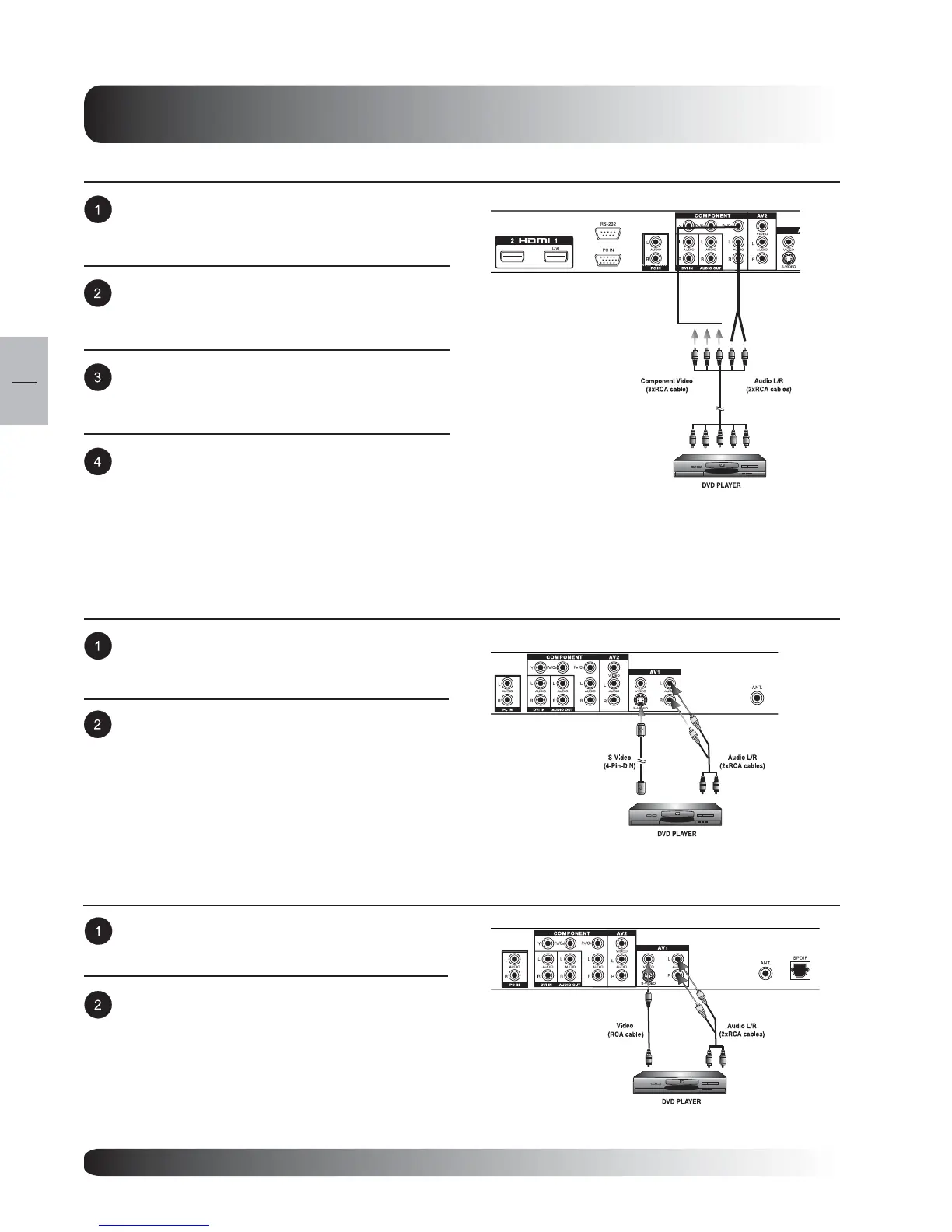

Display Connections
Using S-Video Input
Connect the red (R) and white (L) audio jacks
from the DVD to the R and L audio-in inputs
located next to the S-Video connector.
Connect the S-Video (4-pin DIN) connector from
the DVD to the S-Video input on the back of TV.
Using Composite Input
Connect the Video (yellow) out connector from
the DVD to the Video (yellow) input on the back
of TV.
Connect the red (R) and white (L) audio-out
jacks from the DVD to the R and L audio-in
inputs located next to the Video (yellow)
connector.
Note:
There are two sets of composite inputs provided.
Using Component Video Input
Connect the green-colored (labeled as Y) jack
from the DVD to the green-colored input of the
TV.
Connect the red-colored (labed as PR or CR)
jack from the DVD to the red-colored PR/CR input
of the TV.
Connect the blue-colored (labed as PB or CB)
jack from the DVD to the blue-colored PB/CB
input of the TV.
Connect the red (R) and white (L) audio jacks
from the DVD to the R and L audio-in input
located next to the PR/CR connector.
