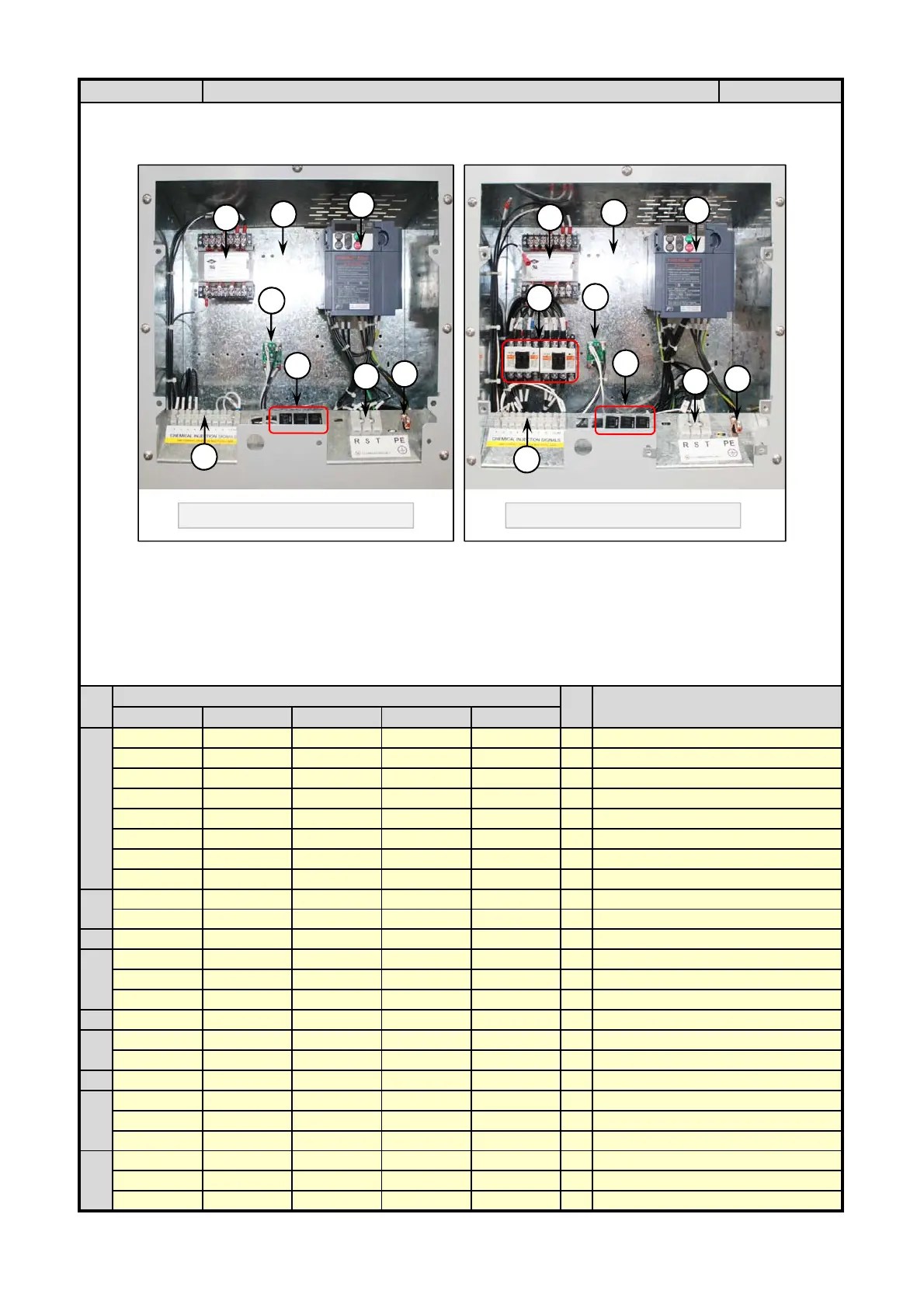

Maxi MWHE20 - Page 77

20 lb. 30 lb. 40 lb. 60 lb. 80 lb.
A0-E001-903 A0-E001-903 - - - 1 Inverter 1HP, 230V. 3PH.
- - A0-E001-919 - - 1 Inverter 2HP, 230V. 3PH.
- - - A0-E001-911 - 1 Inverter 3HP, 230V. 3PH.
----A0-E001-904 1 Inverter 7.5HP, 230V. 3PH.
A0-E001-912 A0-E001-912 - - - 1 Inverter 1HP, 430V. 3PH.
- - A0-E001-913 - - 1 Inverter 2HP, 430V. 3PH.
- - - A0-E001-915 - 1 Inverter 3HP, 430V. 3PH.
----A0-E001-908 1 Inverter 7.5HP, 430V. 3PH.
A0-E006-029 A0-E006-029 A0-E006-029 A0-E006-029 - 1 Transformer
----A0-E006-031 1 Transformer
3
A0-E007-319 A0-E007-319 A0-E007-319 A0-E007-319 A0-E007-319 1 Power Supply 24VDC.
A0-E010-031 A0-E010-031 A0-E010-031 A0-E010-031 - 2 Circuit breaker 1A
----A0-E010-035 2 Circuit breaker 2A
A0-E010-029 A0-E010-029 A0-E010-029 A0-E010-029 A0-E010-029 1 Circuit breaker 6A
5
A0-E021-039 A0-E021-039 A0-E021-039 A0-E021-039 A0-E021-039 1 Block, Terminal
A0-E021-031/1 A0-E021-031/1 A0-E021-031/1 A0-E021-031/1 A0-E021-031/1
1 Terminal Block 3 Pole
A0-E021-031/2 A0-E021-031/2 A0-E021-031/2 A0-E021-031/2 A0-E021-031/2
1 Terminal Block 4 Pole
7
A0-E055-001 A0-E055-001 A0-E055-001 A0-E055-001 A0-E055-001 1 Connector, Ground Lug
A0-E004-069 A0-E004-069 - A0-E004-069 - -
Magnetic Contactor (20 30lb.=1 Qty.) (60lb.=2 Qty.)
- - A0-E004-070 - A0-E004-070 - Magnetic Contactor (40lb.=1 Qty.) (80lb.=2 Qty.)
- - - A0-E004-071 - 2 Magnetic Contactor (220/60/3)
A1-ST01-005 A1-ST01-005 A1-ST01-005 - - 1 Electric enclosure, Rear
- - - A1-ST01-006 - 1 Electric enclosure, Rear
----A1-ST01-007 1 Electric enclosure, Rear
6
1
2
8
4
9
Section 8
Part List : Electrical Control Uni
t
Page 12
Item
Part No.
Qty. Description
4
2
1
9
6
3
7
5
4
2
1
8
6
3
7
5
9
Steam Heating & Hot Water Heating Electric Heating
