STEP 4 - BOLT LIFTGATE TO VEHICLE
METHOD 1 - PRE-INSTALLED MOUNTING PLATES & EXTENSION
PLATE ON VEHICLE

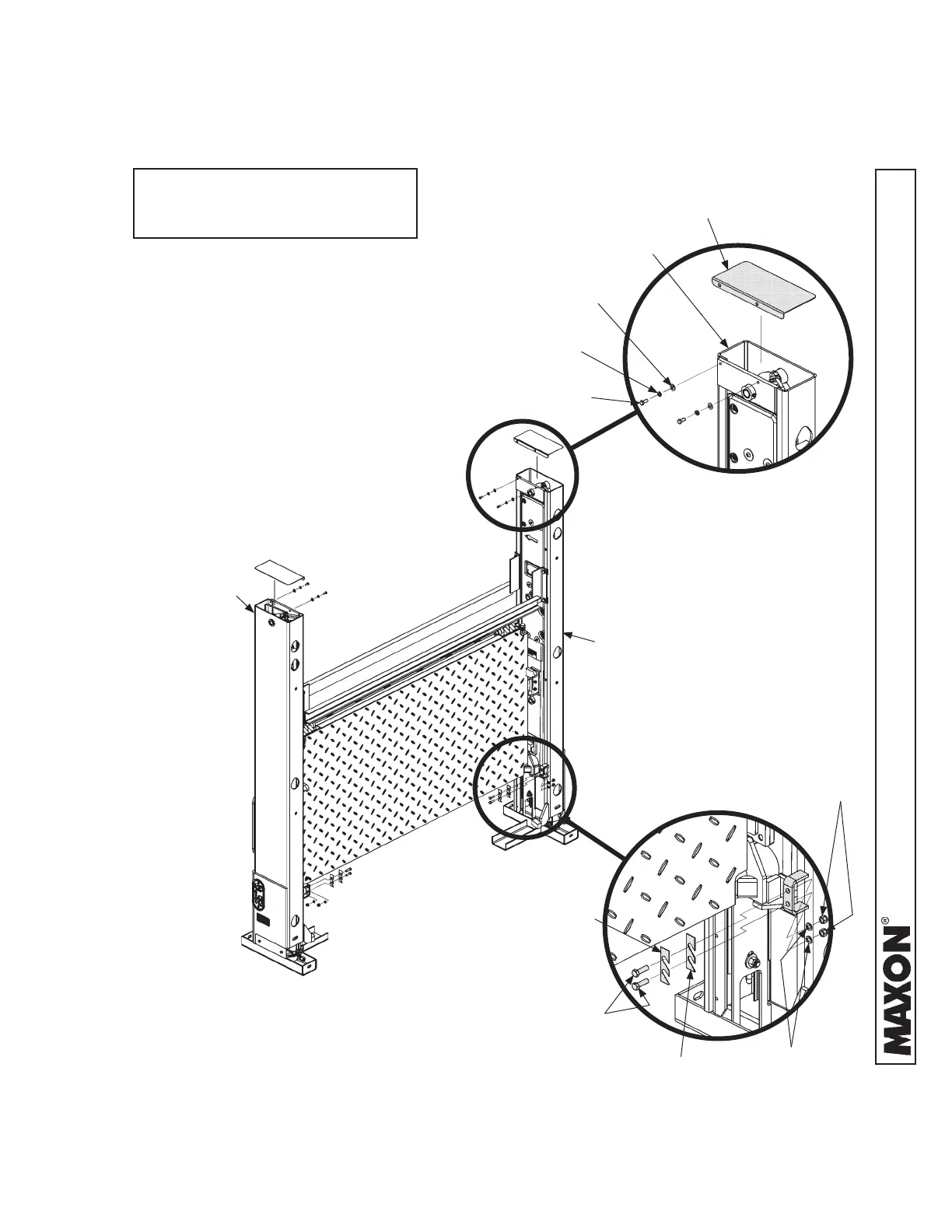

REAR VIEW OF LIFTGATE
FIG. 33-1
REMOVING LH EXTENSION
PLATE HARDWARE
FIG. 33-1B
REMOVING LH TOP
COVER HARDWARE
FIG. 33-1A
2. Remove (2) cap screws, fl at
washers, locknuts and spacers
from LH column and extension
plate (FIGS. 33-1 and 33-1B)
Repeat for RH column and
extension plate.
1. Remove screws, lock washers,
fl at washers and top column cover
from LH column (FIGS. 33-1 and
33-1A). Repeat for RH top column
cover.
NOTE: Save all hardware to re-
attach column cover and
extension plate.
LH COLUMN
SCREW
(4 PLACES)
LOCK WASHER
(4 PLACES)
FLAT WASHER
(2 PLACES)
LH COLUMN COVER
