STEP 5 - REMOVE LOWER SUPPORT FIXTURES
Unbolt and remove lower support
fi xture from LH column (FIG. 38-1).
Repeat for lower support fi xture on
RH column (FIG. 38-1).

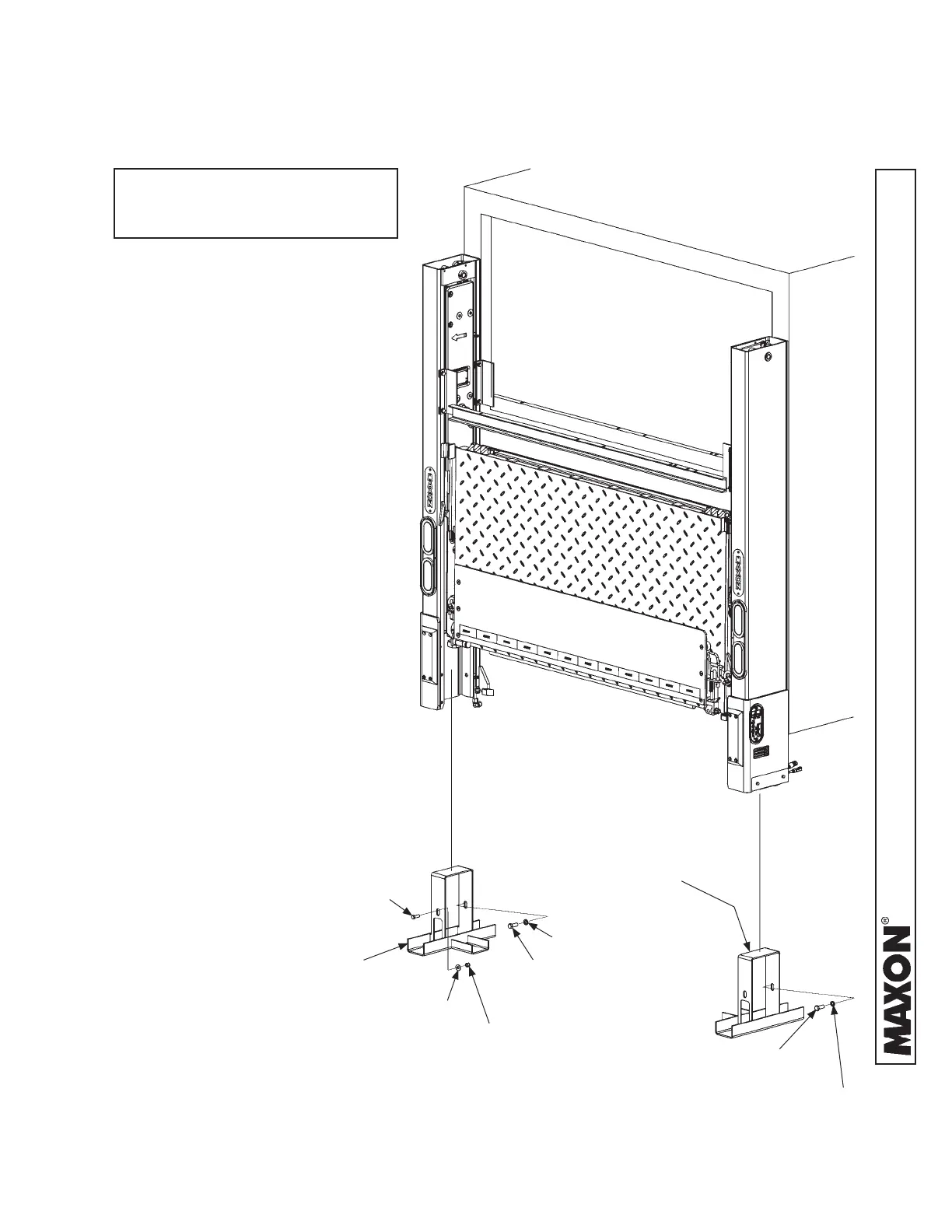

REMOVING LOWER SUPPORT FIXTURES
FIG. 38-1
CAP SCREW,
1/2”-13 X 1-1/2” LG.
HEX SCREW,
5/8”-11 X 1-3/4” LG.
HEX SCREW,
5/8”-11 X 1-3/4” LG.
FLAT WASHER, 1/2”
LH LOWER SUPPORT FIXTURE
LOCK WASHER, 1/2”
LOCK WASHER, 1/2”
LOCK NUT, 1/2”-13
RH LOWER SUPPORT
FIXTURE
NOTE: Use short wrenches for
unbolting lower support
fi xtures.
