STEP 10 - RUN CHARGE LINES - Continued
LIFTGATE

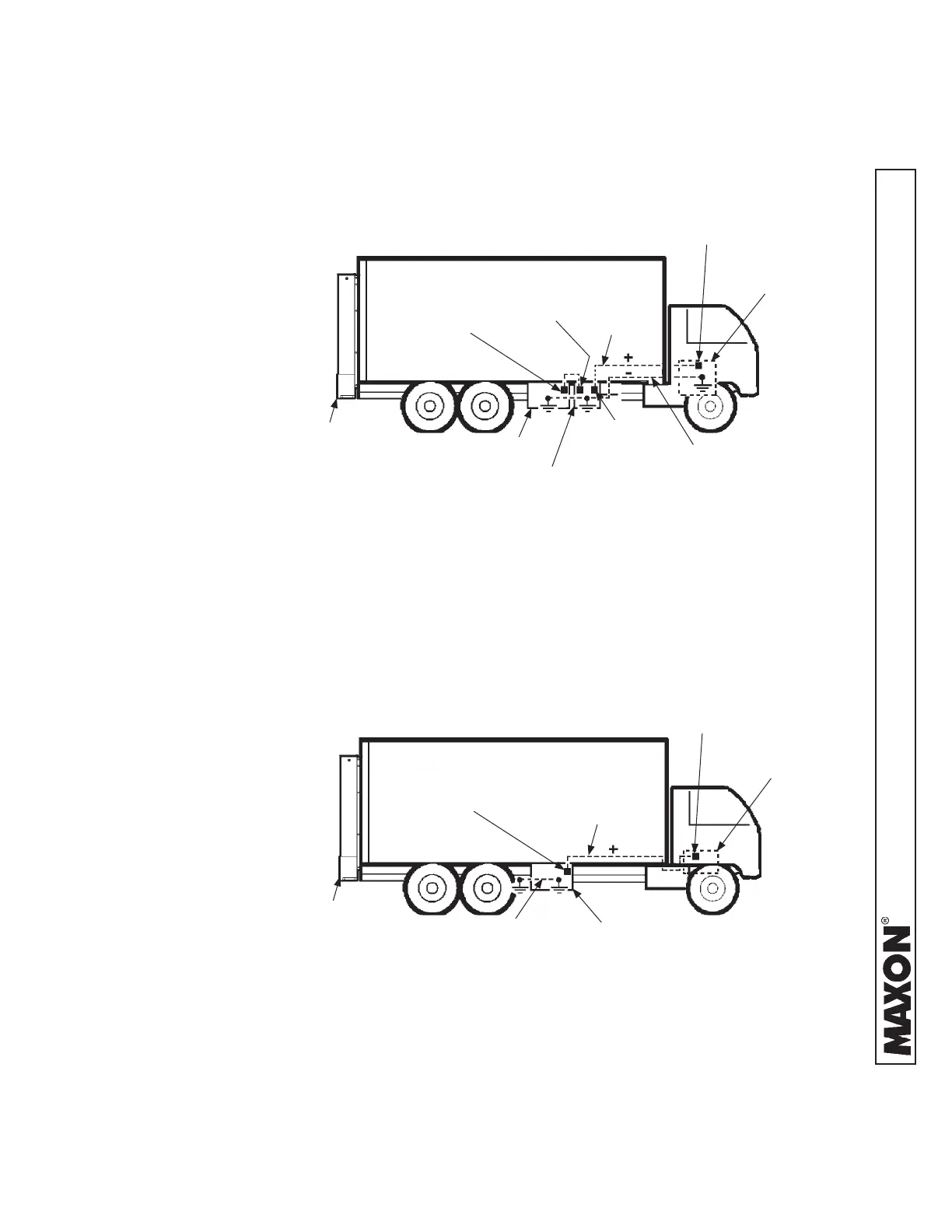

RECOMMENDED LIFTGATE INSTALLATION
WITHOUT OPTIONAL BATTERY BOX
FIG. 60-2
RECOMMENDED LIFTGATE & BATTERY BOX
INSTALLATION ON TRUCK
FIG. 60-1
TRUCK BATTERIES,
TYPICAL LOCATION
OPTIONAL
BATTERY BOX,
TYPICAL LOCATION
150 AMP
CIRCUIT
BREAKER
200 AMP
CIRCUIT
BREAKER
PUMP BOX
MASTER
DISCONNECT
SWITCH
150 AMP CIRCUIT
BREAKER
POWER
CABLE
2. Liftgate, pump box, and optional battery box
are typically installed on trucks as shown in
FIG. 60-1 and FIG. 60-2. See the following
page for battery and cable connections.
GROUND
CABLE
LIFTGATE
TRUCK BATTERIES,
TYPICAL LOCATION
PUMP BOX
MASTER
DISCONNECT
SWITCH
200 AMP CIRCUIT
BREAKER
POWER
CABLE
GROUND
CABLE
