Maxon EPOS4 Disk 60/12 - Page 16

Specifications
Dimensional Drawings
EPOS4 Disk 60/12 Hardware Reference
2-16 CCMC | 2022-06 | rel10685
Disk EtherCAT

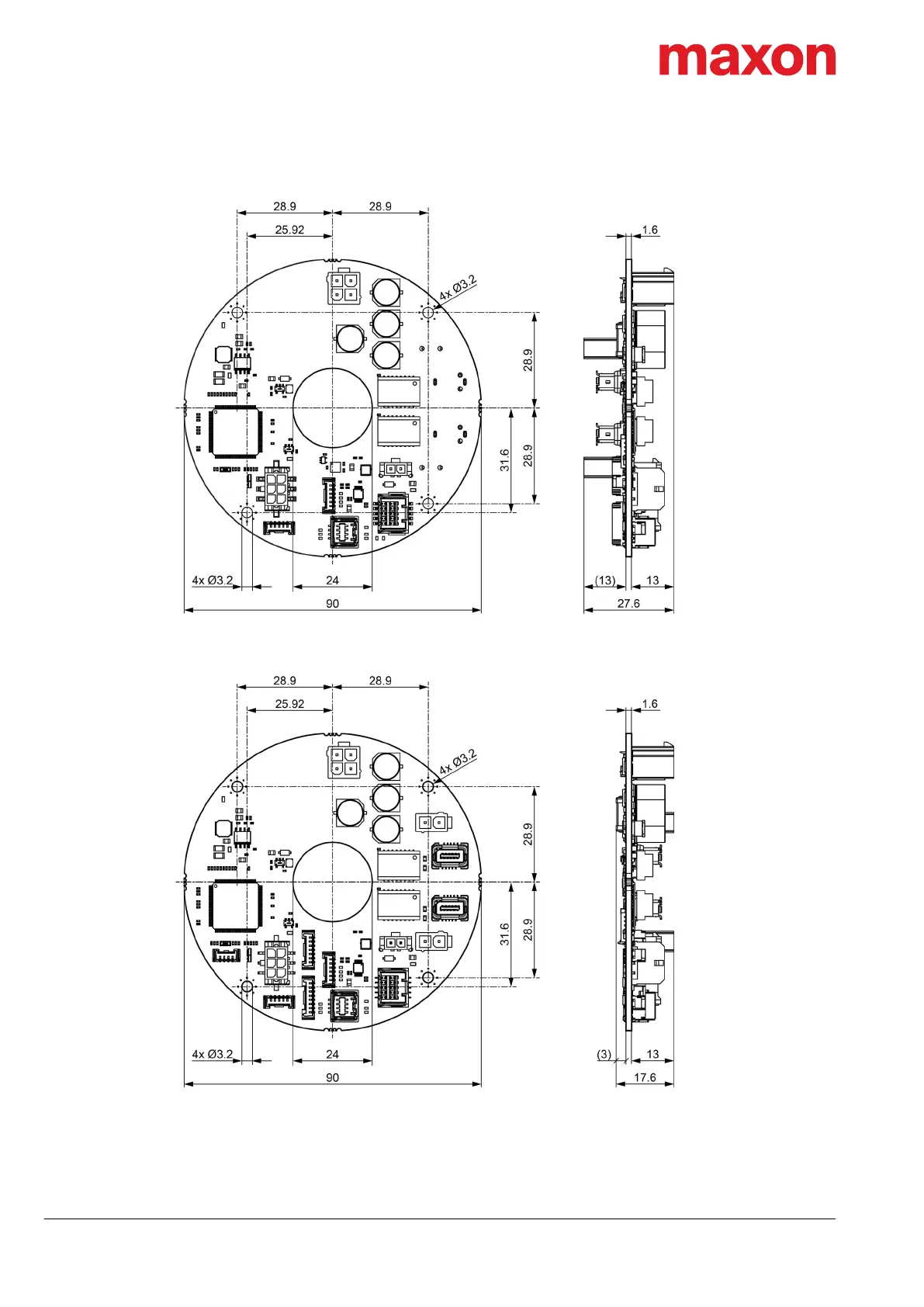

Figure 2-6 EPOS4 Disk 60/12 EtherCAT (688777) – Dimensional drawing [mm]
Figure 2-7 EPOS4 Disk 60/12 EtherCAT SSC (709862) – Dimensional drawing [mm]
