Maxon EPOS4 Disk 60/12 - Analog I;O (X8; X8 A)

Setup
Connections
EPOS4 Disk 60/12 Hardware Reference
3-42 CCMC | 2022-05 | rel10685
3.3.9 Analog I/O (X8; X8a)

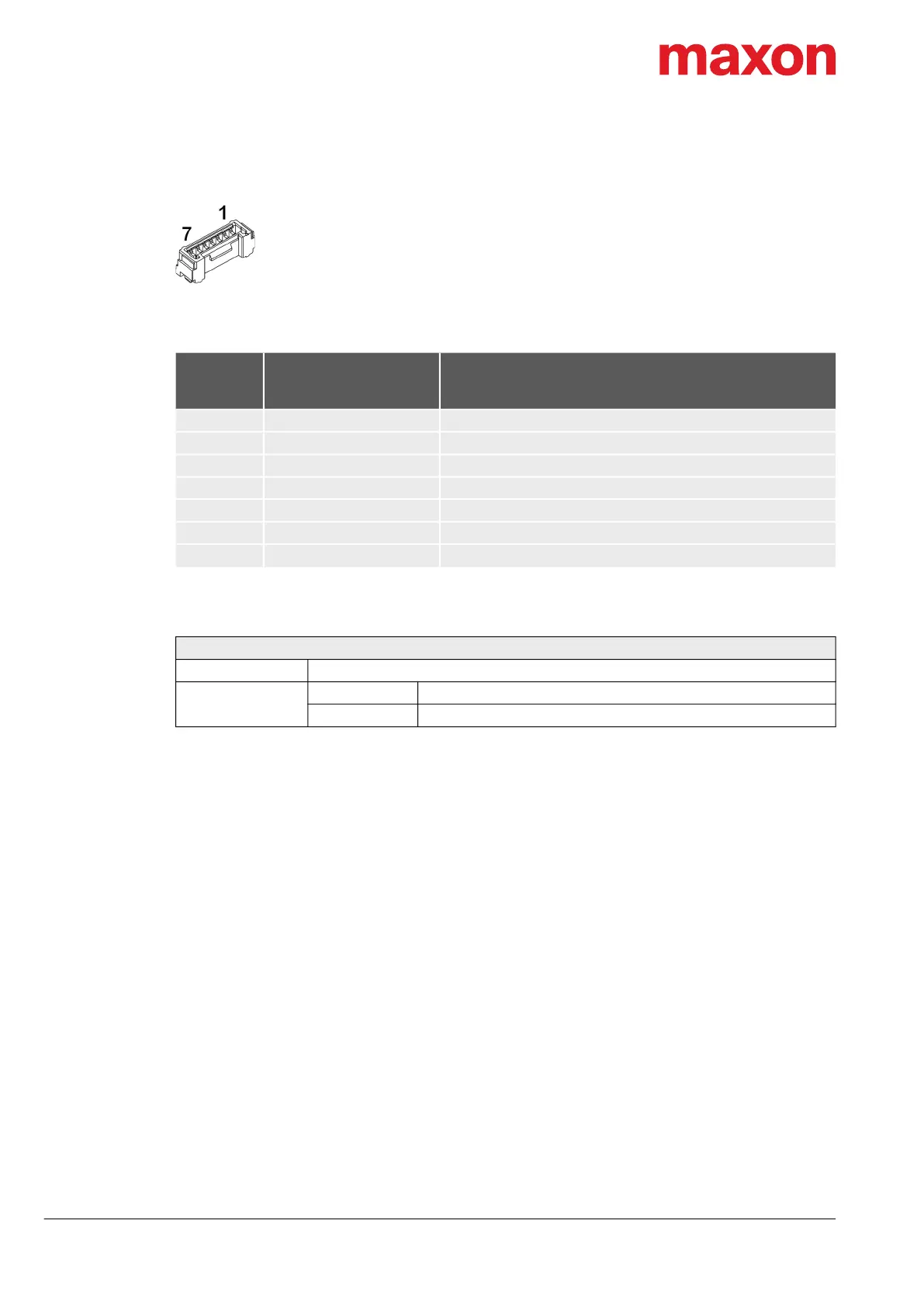

Figure 3-31 Analog I/O connector X8 or X8a
Table 3-43 Analog I/O connector X8 or X8a – Pin assignment
Table 3-44 Analog I/O connector X8 or X8a – Specifications
Continued on next page.
X8
X8a
Pin
Signal Description
1 AnIN1+ Analog input 1, positive signal
2 AnIN1− Analog input 1, negative signal
3 AnIN2+ Analog input 2, positive signal
4 AnIN2− Analog input 2, negative signal
5 AnOUT1 Analog output 1
6 — not connected
7 GND Ground
Connector X8; X8a
Suitable cable Signal Cable 7core on page 3-52
Suitable plug
Housing Molex Micro-Lock (05055650701)
Contact Molex Micro-Lock (05054311000) AWG26…30
X8
X8a
