Setup
Prefab Cable Assemblies
EPOS4 Disk 60/12 Hardware Reference
3-52 CCMC | 2022-05 | rel10685

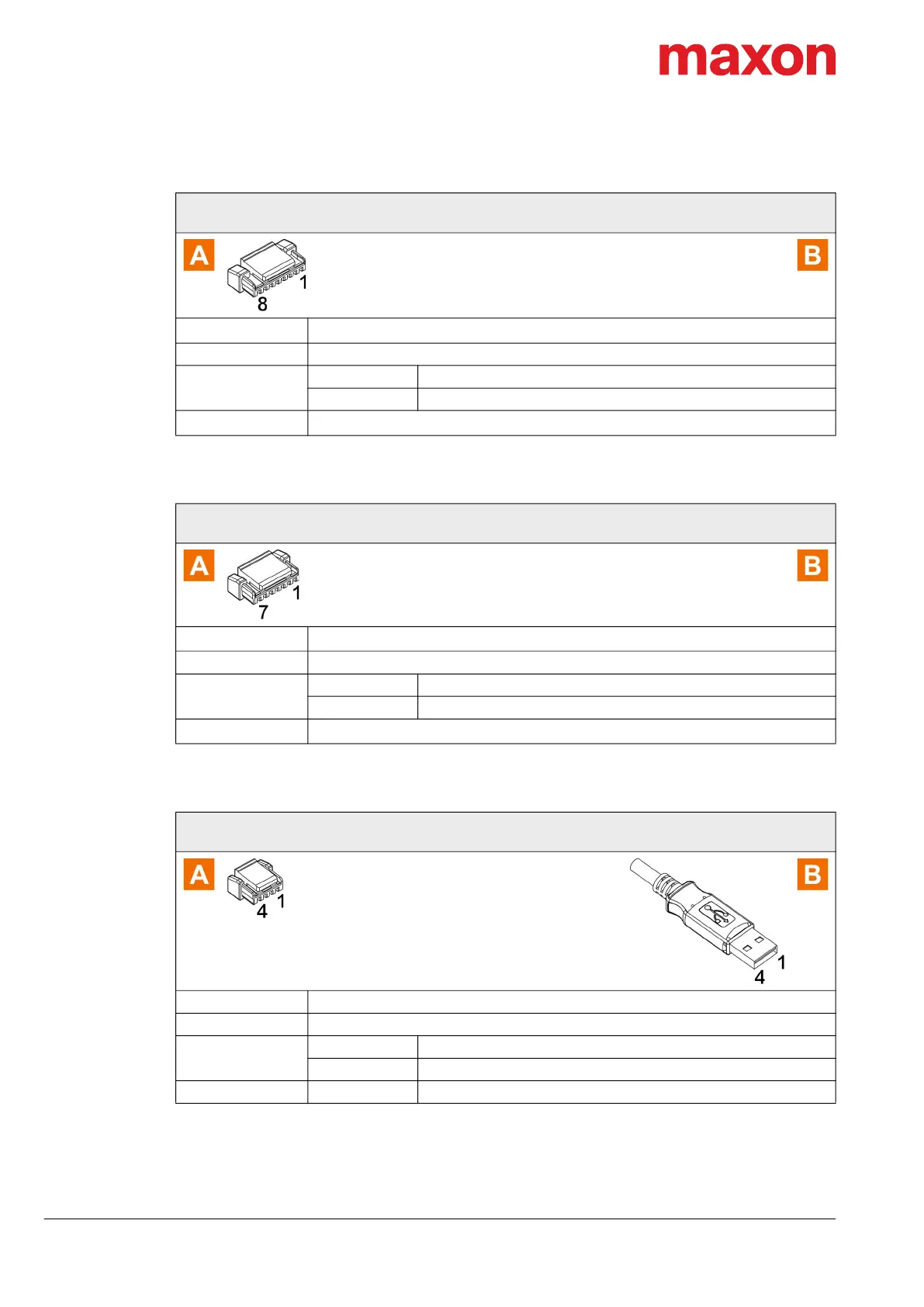

Table 3-66 Signal Cable 8core
Table 3-67 Signal Cable 7core
Table 3-68 USB Type A-Micro-Lock Cable
Signal Cable 8core
(696287)
This cable fits
connector…
X7
X7a
Type / length
8 x 0.14 mm
2
, non-shielded, grey / 3 m
Wire identifier Colors white ¦¦ brown ¦¦ green ¦¦ yellow ¦¦ grey ¦¦ pink ¦¦ blue ¦¦ red
Head A
Plug Molex Micro-Lock (05055650801)
Contacts Molex Micro-Lock (05054311000)
Head B
Wire end sleeves 0.14 mm
2
Signal Cable 7core
(696288)
This cable fits
connector…
X8
X8a
Type / length
7 x 0.14 mm
2
, non-shielded, grey / 3 m
Wire identifier Colors white ¦¦ brown ¦¦ green ¦¦ yellow ¦¦ grey ¦¦ pink ¦¦ blue
Head A
Plug Molex Micro-Lock (05055650701)
Contacts Molex Micro-Lock (05054311000)
Head B
Wire end sleeves 0.14 mm
2
USB Type A-Micro-Lock Cable
(696289)
This cable fits
connector…
X13
X13a
Type / length USB 2.0 / USB3.0 (full speed), black / 1.5 m
Wire identifier —
Head A
Plug Molex Micro-Lock (05055650401)
Contacts Molex Micro-Lock (05054311000)
Head B Plug Male USB A, straight
