Setup
Prefab Cable Assemblies
EPOS4 Disk 60/12 Hardware Reference
CCMC | 2022-05 | rel10685
3-53
[d] Alternative lengths are available from HARTING: 0.5 m (33 48 111 1A20 005); 1 m (33 48 111 1A20 010)

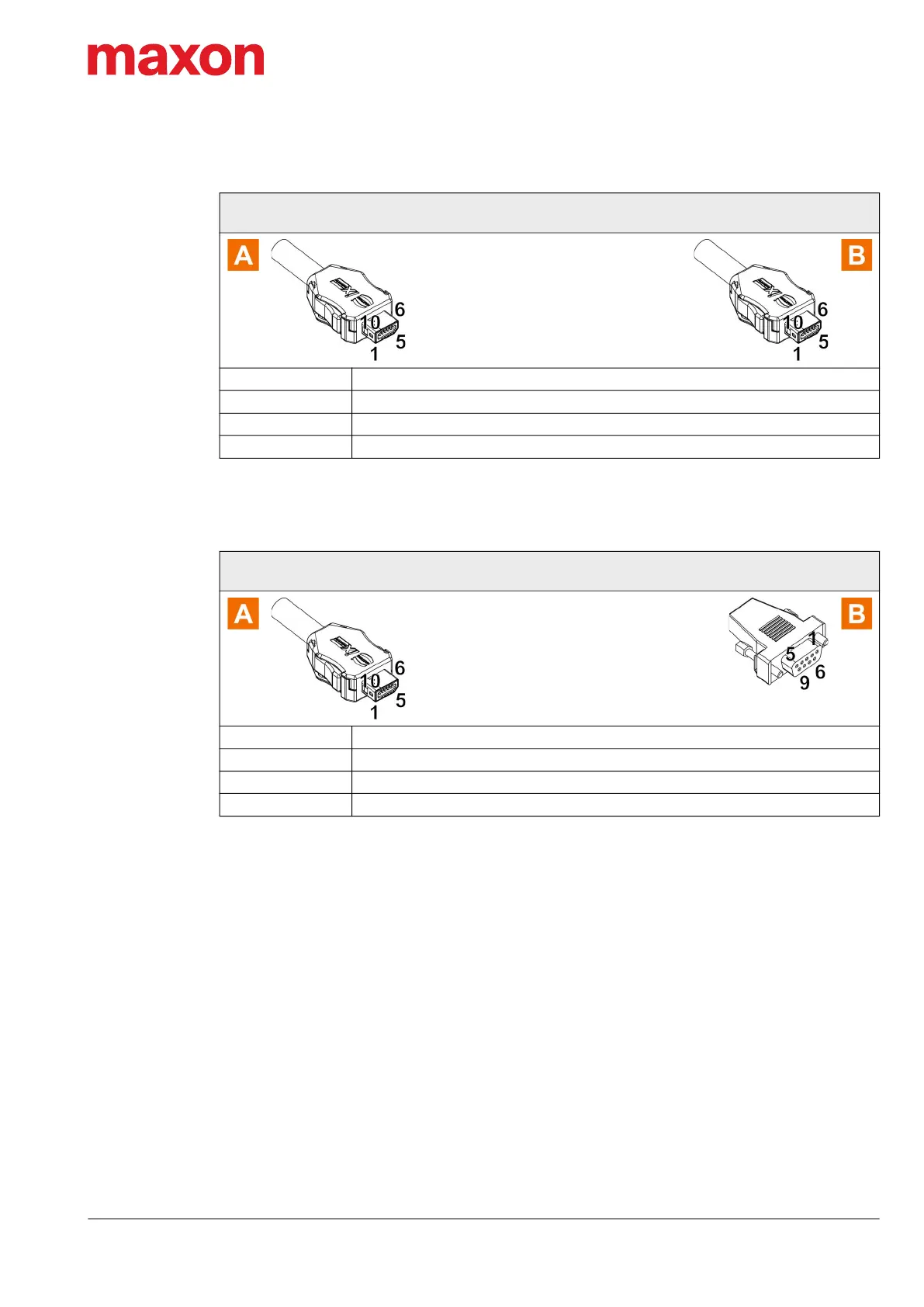

Table 3-69 CAN-CAN Cable
Table 3-70 CAN-COM Cable
CAN-CAN Cable
(710931)
This cable fits
Disk CAN’s
connectors…
X14
X14a
X15
X15a
Type / length 10 x AWG26, IEC61076-3-124, grey / 3 m [d]
Wire identifier Colors white ¦¦ brown ¦¦ green ¦¦ yellow ¦¦ grey ¦¦ pink ¦¦ blue ¦¦ red ¦¦ black ¦¦ violet
Head A HARTING ix Industrial, Type B (09 45 181 9002 XL)
Head B HARTING ix Industrial, Type B (09 45 181 9002 XL)
CAN-COM Cable
(710932)
This cable fits
Disk CAN’s
connectors…
X14
X14a
X15
X15a
Type / length 10 x AWG26, IEC61076-3-124, grey / 3 m
Wire identifier Colors white ¦¦ brown ¦¦ green ¦¦ yellow ¦¦ grey ¦¦ pink ¦¦ blue ¦¦ red ¦¦ black ¦¦ violet
Head A HARTING ix Industrial, Type B (09 45 181 9002 XL)
Head B D-SUB socket 9, female
