EPOS4 Disk 60/12 Hardware Reference
CCMC | 2022-05 | rel10685
3-59
3.6 Status Indicators
The EPOS4 features three sets of LED indicators to display the device condition.
A NET Status; the LEDs display communication RUN states and errors conditions
B Device Status; the LEDs display the device’s operation status and error conditions
C NET Port; the LED displays the NET link activity
For detailed information see separate document «EPOS4 Firmware Specification».

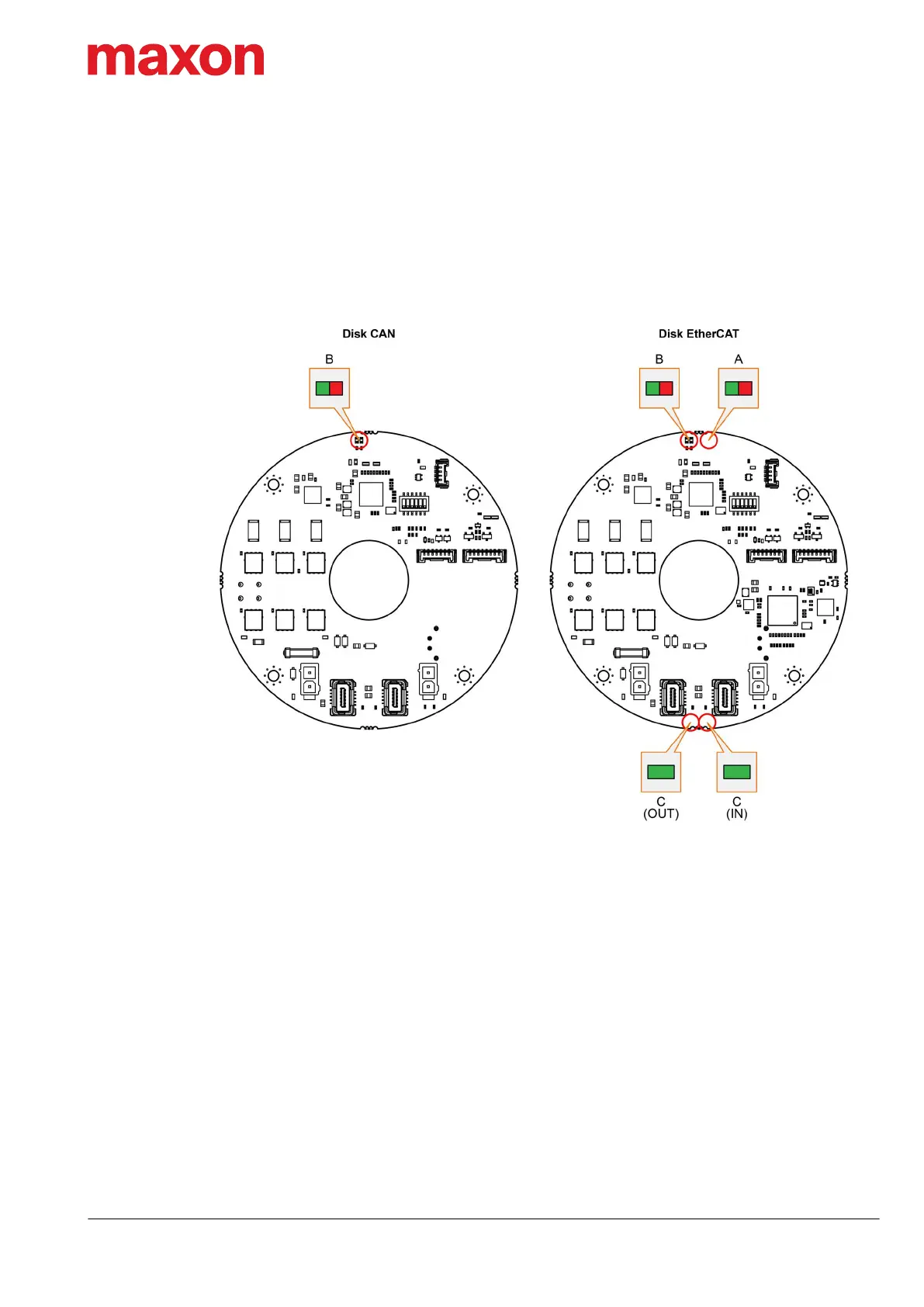

Figure 3-40 LEDs – Location
