Maxon EPOS4 Disk 60/12 - Logic Supply (X2; X2 A)

Setup
Connections
EPOS4 Disk 60/12 Hardware Reference
3-28 CCMC | 2022-05 | rel10685
3.3.2 Logic Supply (X2; X2a)
Basically, any power supply may be used provided that it meets the stated minimum requirements. A sepa-
rately sourced logic supply is optional.
Best practice
Keep the motor mechanically disconnected during the setup and adjustment phase.

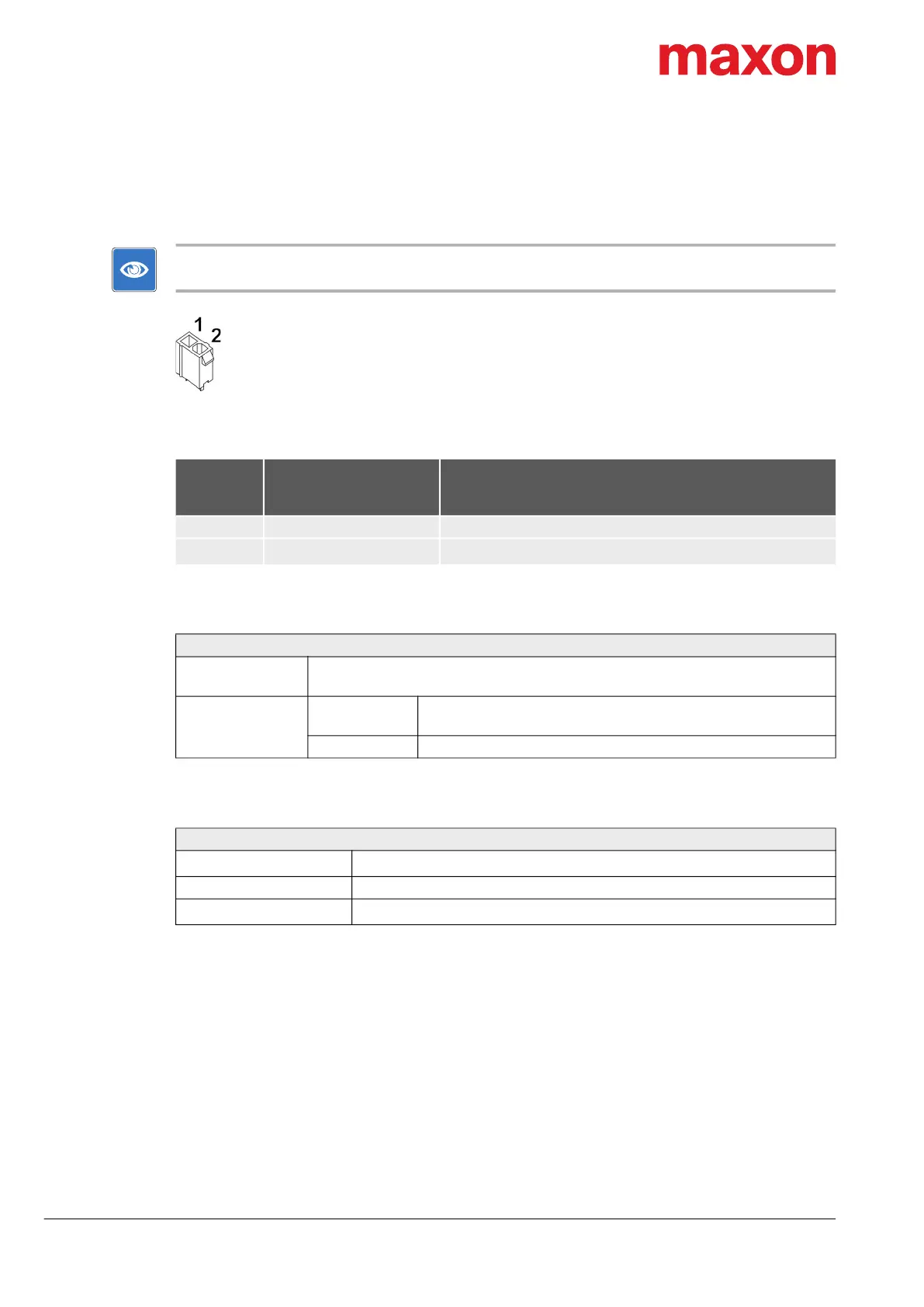

Figure 3-13 Logic supply connector X2 or X2a
Table 3-16 Logic supply connector X2 or X2a – Pin assignment
Table 3-17 Logic supply connector X2 or X2a – Specifications
Table 3-18 Logic supply requirements
X2
X2a
Pin
Signal Description
1 GND Ground
2
+V
C
Logic supply voltage (+12…+60 VDC)
Connector X2; X2a
Suitable cables
Power Cable High Current on page 3-49
Power Cable on page 3-49
Suitable plug
Housing
Molex Mini-Fit Plus (0039012025)
Molex Mini-Fit Jr. (0039012020)
Contact Molex Mini-Fit Plus (45750311x)
Logic supply requirements (optional)
Output voltage
+V
C
12…60 VDC
Absolute output voltage min. 10 VDC; max. 61 VDC
Min output power
P
C
min. 3.5 W
X2
X2a
