Maxon EPOS4 Disk 60/12 - Digital I;O (X7; X7 A)

Setup
Connections
EPOS4 Disk 60/12 Hardware Reference
CCMC | 2022-05 | rel10685
3-39
3.3.8 Digital I/O (X7; X7a)

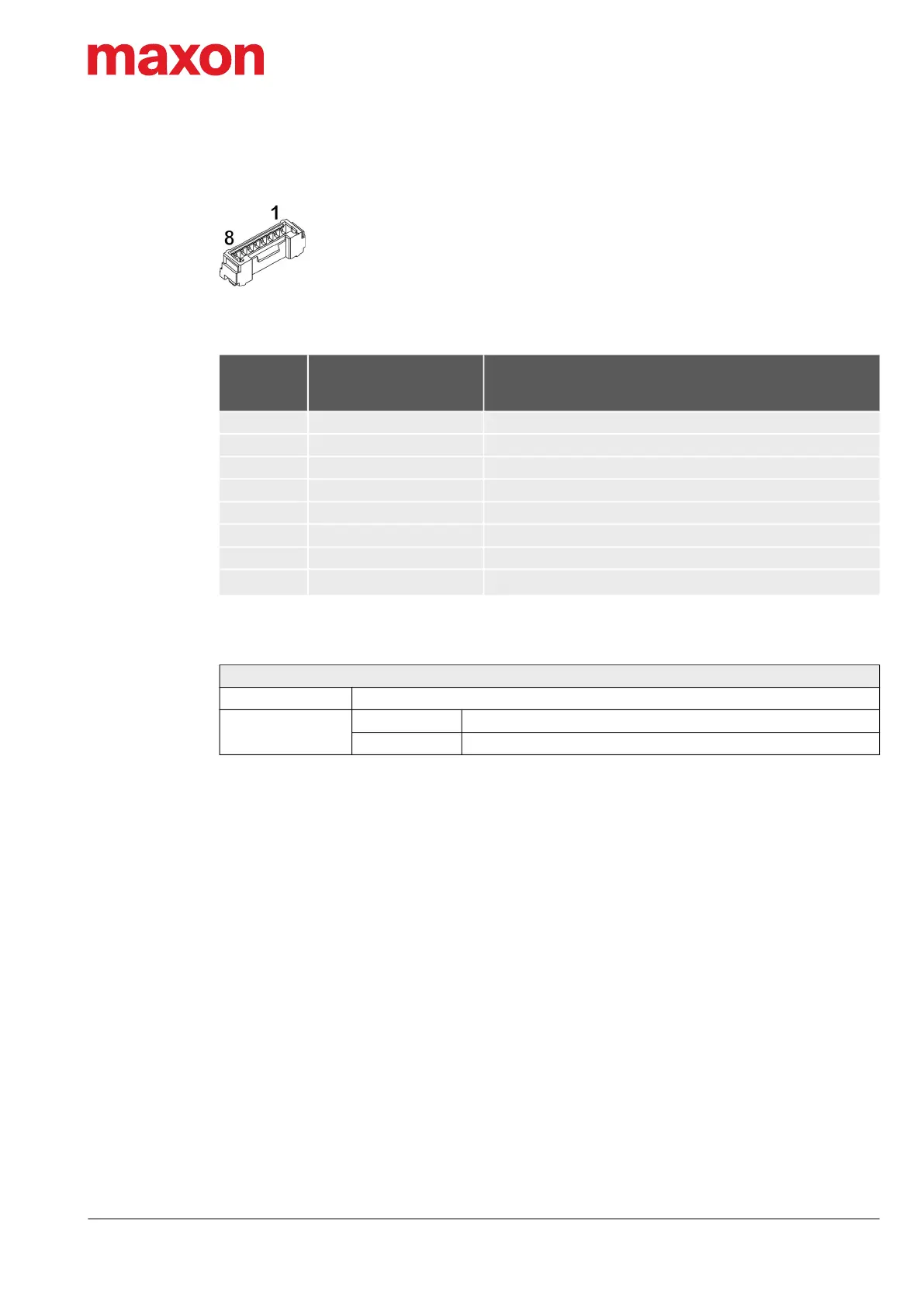

Figure 3-26 Digital I/O connector X7 or X7a
Table 3-37 Digital I/O connector X7 or X7a – Pin assignment
Table 3-38 Digital I/O connector X7 or X7a – Specifications
Continued on next page.
X7
X7a
Pin
Signal Description
1 DigIN1 Digital input 1
2 DigIN2 Digital input 2
3 DigIN3 Digital input 3
4 DigIN4 Digital input 4
5 DigOUT1 Digital output 1
6 DigOUT2 Digital output 2
7 GND Ground
8
V
Aux
Auxiliary output voltage (+5 ; I
L
150 mA)
Connector X7; X7a
Suitable cable Signal Cable 8core on page 3-52
Suitable plug
Housing Molex Micro-Lock (05055650801)
Contact Molex Micro-Lock (05054311000) AWG26…30
X7
X7a
