Setup
Connections
EPOS4 Disk 60/12 Hardware Reference
3-38 CCMC | 2022-05 | rel10685

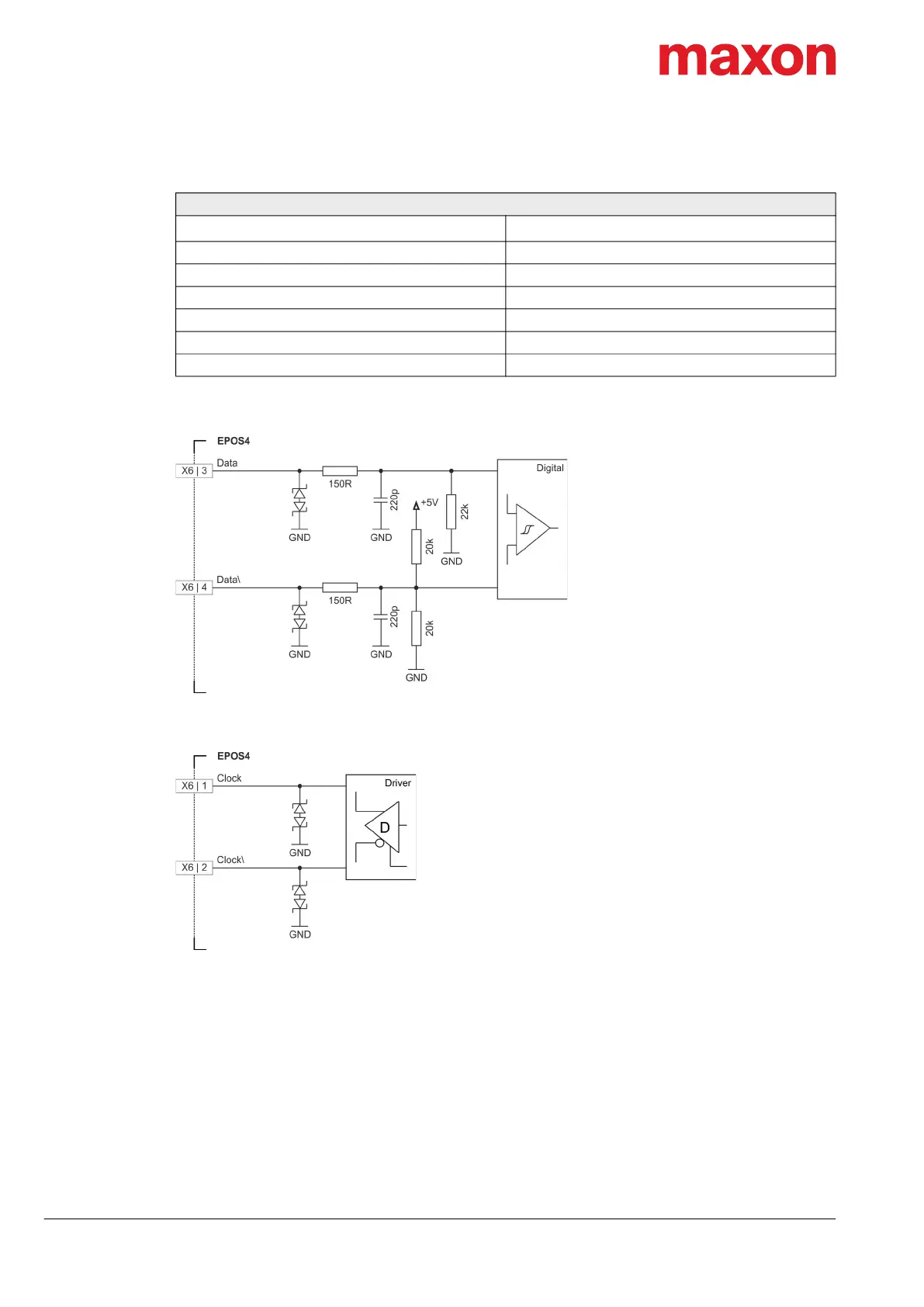

Table 3-36 SSI absolute encoder specification
Figure 3-24 SSI absolute encoder data input (analogously valid for HsDigIn4 and X5/X6)
Figure 3-25 SSI absolute encoder clock output (analogously valid for HsDigOut1 and X5/X6)
SSI absolute encoder
Auxiliary output voltage (V
Aux
)
+5 VDC
Max. auxiliary supply current 150 mA
Min. differential input voltage ±200 mV
Min. differential output voltage ±1.8 V @ external load R=54 Ω
Max. output current 40 mA
Line receiver (internal) EIA RS422 standard
Encoder input/output frequency 0.4… 2 MHz
