Setup
Prefab Cable Assemblies
EPOS4 Disk 60/12 Hardware Reference
3-54 CCMC | 2022-05 | rel10685
[e] Alternative lengths are available from HARTING: 0.5 m (33 48 06 0683 0005); 1 m (33 48 06 0683 0010)
Table 3-71 EtherCAT-EtherCAT Cable
[f] Alternative lengths are available from HARTING: 0.5 m (33 48 06 5383 0005); 1 m (33 48 06 5383 0010)
Table 3-72 EtherCAT-COM Cable

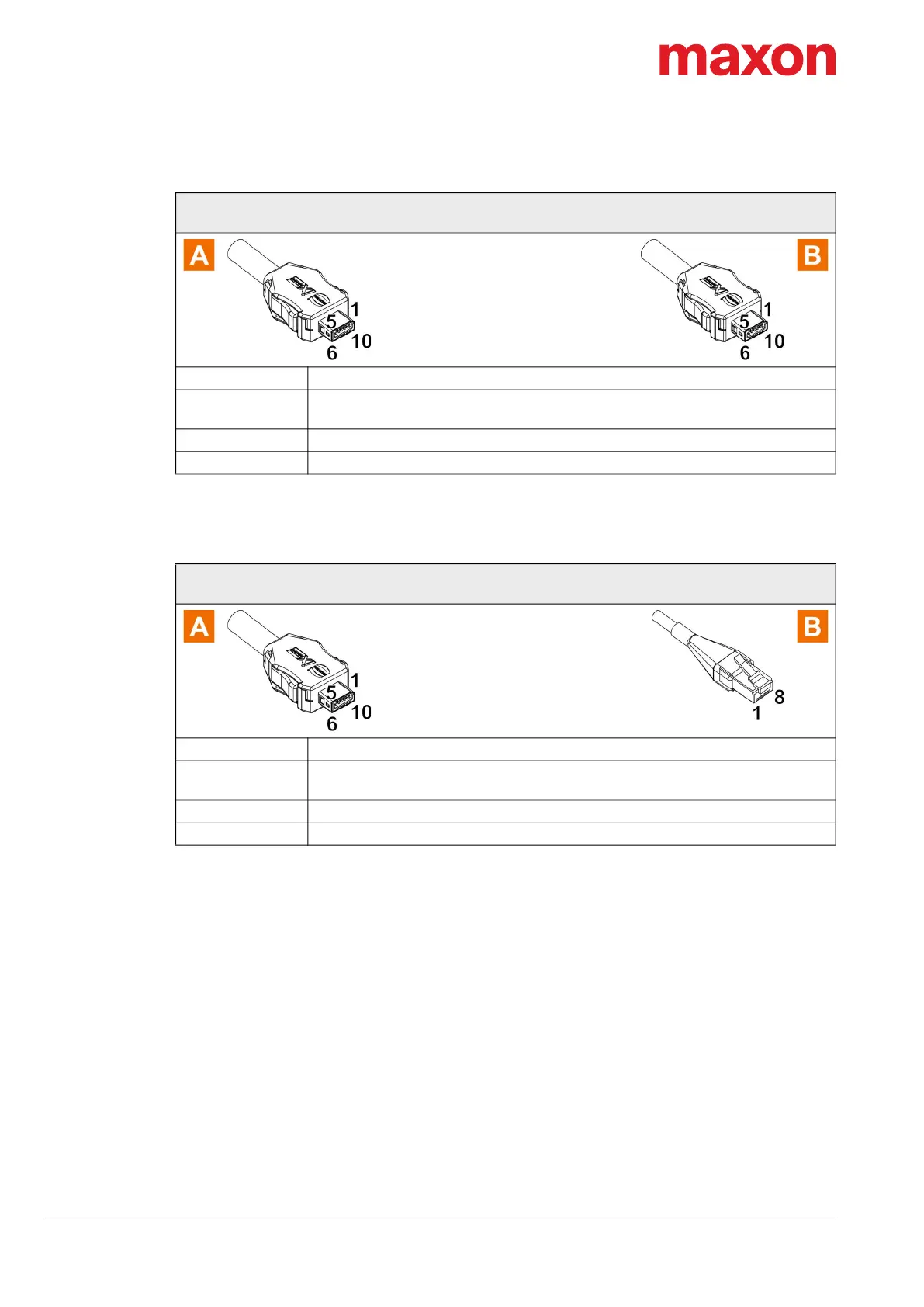

EtherCAT-EtherCAT Cable
(710933)
This cable fits
Disk EtherCAT’s
connectors…
X14
X14a
X15
X15a
Type / length 4 x 2 x AWG28/7. Cat. 6A, yellow / 3 m [e]
Wire identifier
Colors white/orange ¦¦ orange ¦¦ n.c. ¦¦ blue ¦¦ white/blue ¦¦ white/green ¦¦ green ¦¦ n.c.
¦¦ white/brown ¦¦ brown
Head A HARTING ix Industrial, Type A (09 45 181 2562 XL)
Head B HARTING ix Industrial, Type A (09 45 181 2562 XL)
EtherCAT-COM Cable
(710934)
This cable fits
Disk EtherCAT’s
connectors…
X14
X14a
X15
X15a
Type / length 4 x 2 x AWG28/7. Cat. 6A, yellow / 3 m [f]
Wire identifier
Colors white/orange ¦¦ orange ¦¦ n.c. ¦¦ blue ¦¦ white/blue ¦¦ white/green ¦¦ green ¦¦ n.c.
¦¦ white/brown ¦¦ brown
Head A HARTING ix Industrial, Type A (09 45 181 2562 XL)
Head B RJ45
