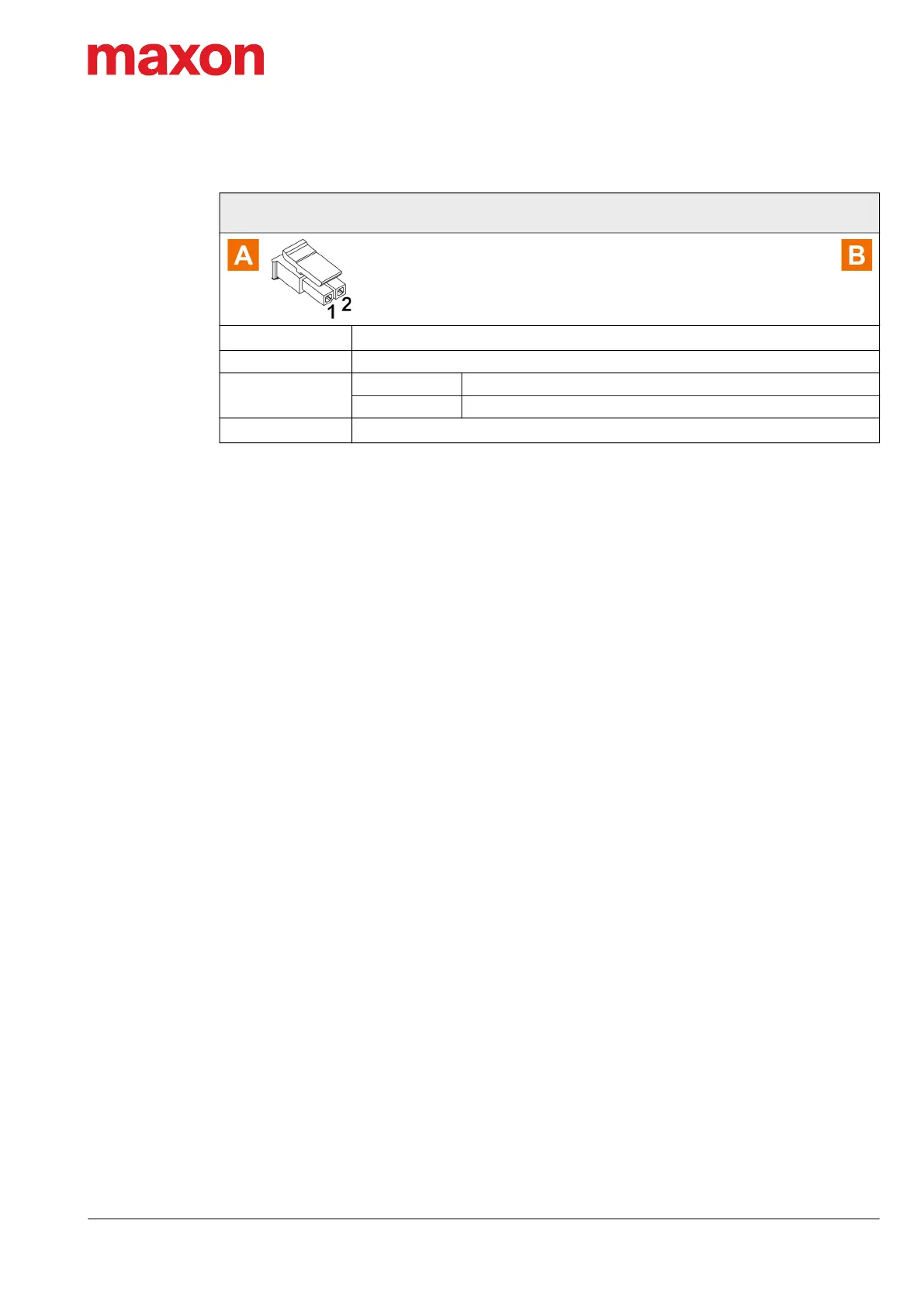

Table 3-73 Brake Cable
Brake Cable
(710928)
This cable fits
connector…
X16
Type / length
2 x 0.5 mm
2
, shielded, grey / 3 m
Wire identifier Numbers 1 ¦¦ 2
Head A
Plug Molex Micro-Fit (0436450200)
Contacts Molex Micro-Fit (0430300001) (0430300007)
Head B
Wire end sleeves 0.5 mm
2
