Setup
Prefab Cable Assemblies
EPOS4 Disk 60/12 Hardware Reference
CCMC | 2022-05 | rel10685
3-51

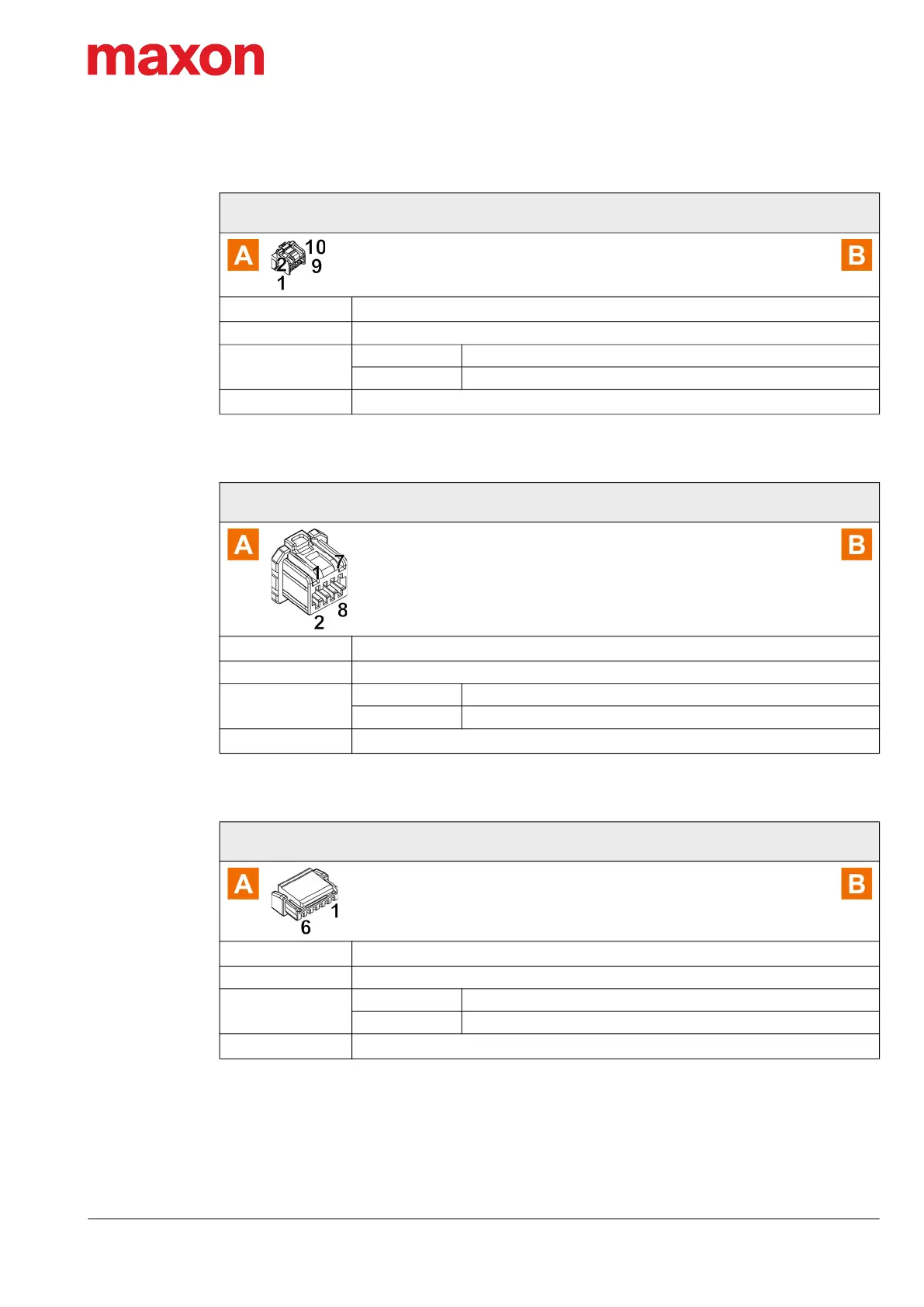

Table 3-63 Sensor Cable 5x2core
Table 3-64 Encoder Cable
Table 3-65 Sensor Cable 3x2core
Sensor Cable 5x2core
(520852)
This cable fits
connector…
X5/X6
Type / length
5 x 2 x 0.14 mm
2
, twisted pair, grey / 3 m
Wire identifier Colors white ¦¦ brown ¦¦ green ¦¦ yellow ¦¦ grey ¦¦ pink ¦¦ blue ¦¦ red ¦¦ black ¦¦ violet
Head A
Plug Molex CLIK-Mate (503149-1000)
Contacts Molex CLIK-Mate (502579)
Head B
Wire end sleeves 0.14 mm
2
Encoder Cable
(696285)
This cable fits
connector…
X5
Type / length
4 x 2 x 0.14 mm
2
, twisted pair, non-shielded, grey / 3 m
Wire identifier Colors white ¦¦ brown ¦¦ green ¦¦ yellow ¦¦ grey ¦¦ pink ¦¦ blue ¦¦ red
Head A
Plug Molex Micro-Lock (05054320801)
Contacts Molex Micro-Lock (05054311000)
Head B
Wire end sleeves 0.14 mm
2
Sensor Cable 3x2core
(696286)
This cable fits
connector…
X6
Type / length
3 x 2 x 0.14 mm
2
, twisted pair, non-shielded, grey / 3 m
Wire identifier Colors white ¦¦ brown ¦¦ green ¦¦ yellow ¦¦ grey ¦¦ pink
Head A
Plug Molex Micro-Lock (05055650601)
Contacts Molex Micro-Lock (05054311000)
Head B
Wire end sleeves 0.14 mm
2
