WIRING EXAMPLES
Table 3-41 Digital output 1 & 2 specification – Sinks

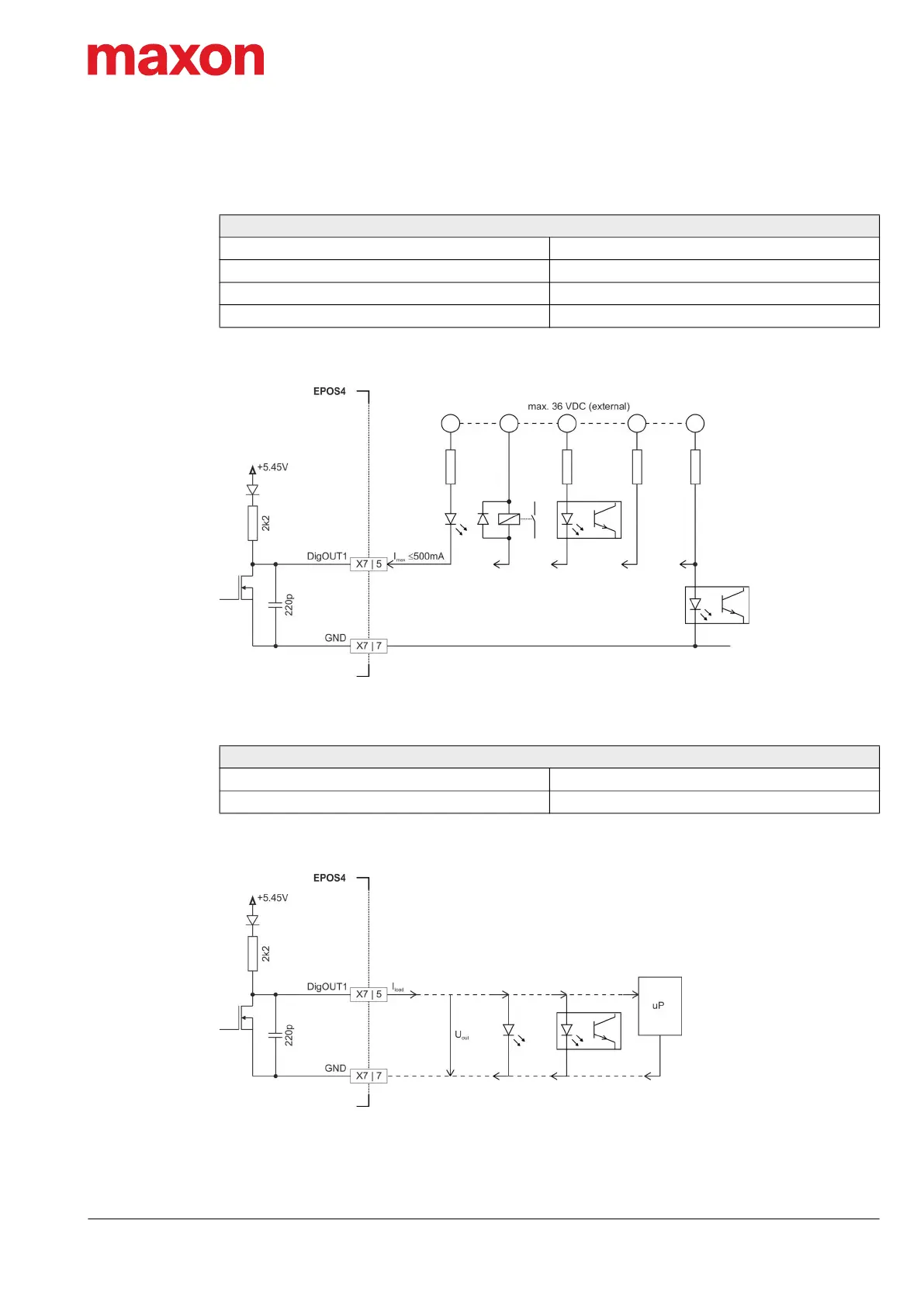

Figure 3-29 DigOUT1 “sinks” (analogously valid for DigOUT2 and X7a)
Table 3-42 Digital output 1 & 2 specification – Source
Figure 3-30 DigOUT1 “source” (analogously valid for DigOUT2 and X7a)
Digital output 1 & 2 “sinks”
Max. input voltage 36 VDC
Max. load current 500 mA
Max. voltage drop 0.5 V @ 500 mA
Max. load inductance 100 mH @ 24 VDC; 500 mA
Digital output 1 & 2 “source”
Output voltage UOut = 5.45 V − 0.75 V − (ILoad x 2200 )
Max. load current ILoad 2 mA
