Setup
Connections
EPOS4 Disk 60/12 Hardware Reference
CCMC | 2022-05 | rel10685
3-31

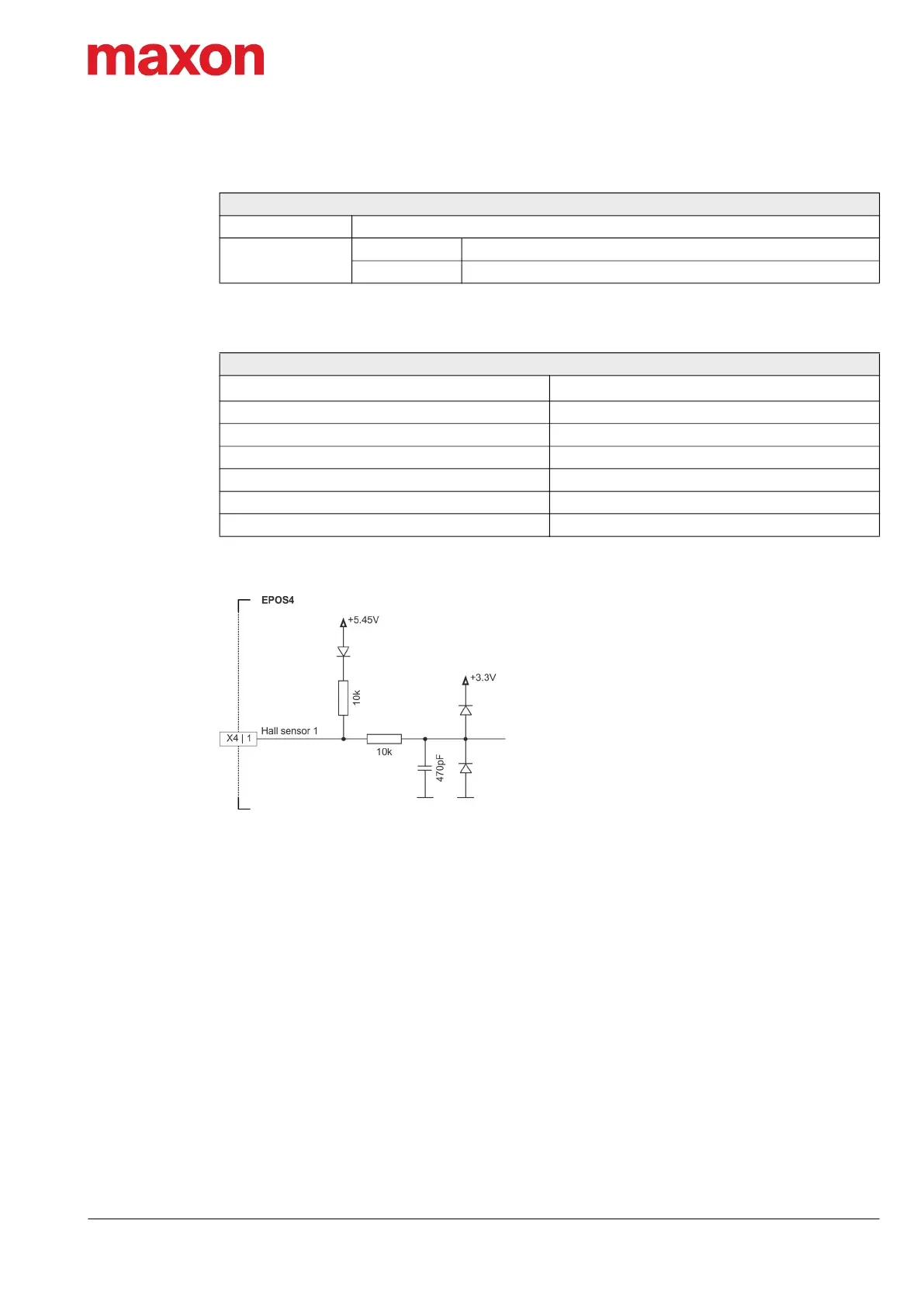

Table 3-25 Hall sensor connector X4a – Specifications
Table 3-26 Hall sensor specification
Figure 3-17 Hall sensor 1 input circuit (analogously valid for Hall sensors 2 & 3 and X4a)
Connector X4a
Suitable cable Hall Sensor Cable on page 3-50
Suitable plug
Housing Molex Micro-Lock (05055650501)
Contact Molex Micro-Lock (05054311000) AWG26…30
Hall sensor
Sensor supply voltage (V
Sensor
)
+5 VDC
Max. Hall sensor supply current 30 mA
Input voltage 0…24 VDC
Max. input voltage +24 VDC
Logic 0 typically <0.8 V
Logic 1 typically >2.0 V
Internal pull-up resistor 2.7 k(referenced to +5.45 V - 0.6 V)
