Maxon EPOS4 Disk 60/12 - Page 68

Wiring
Main Wiring Diagrams
EPOS4 Disk 60/12 Hardware Reference
4-68 CCMC | 2022-06 | rel10685
EPOS4 Disk 60/12 EtherCAT

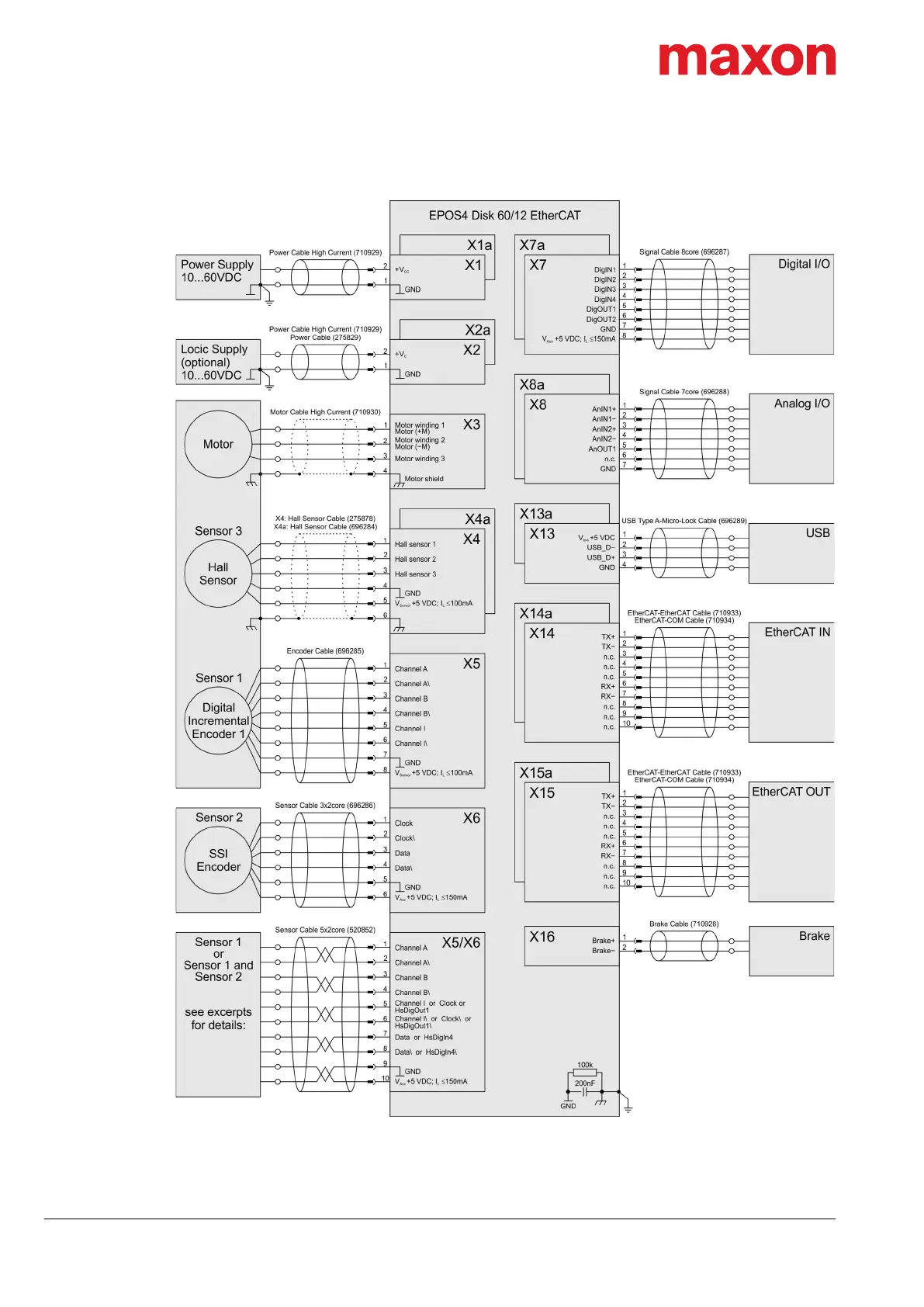

Figure 4-44 EPOS4 Disk 60/12 EtherCAT – Main wiring diagram
