Maxon IDX 70 - Dimensional Drawings

Specifications
Dimensional Drawings
IDX 70 User Manual
2-18 mmag | 2022-04 | rel10520
2.3 Dimensional Drawings

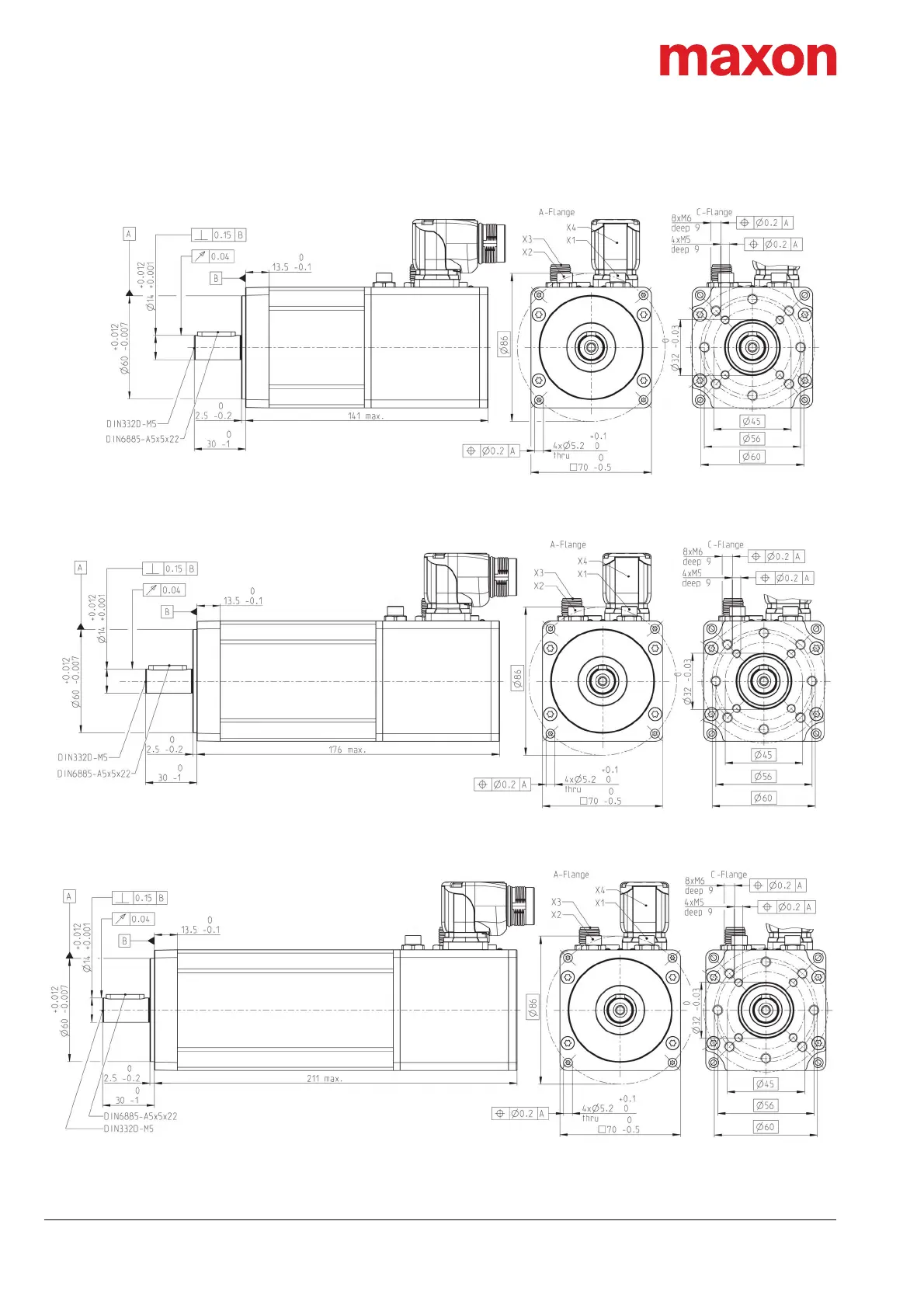

Figure 2-2 IDX 70 S | Dimensional drawing [mm]
Figure 2-3 IDX 70 M | Dimensional drawing [mm]
Figure 2-4 IDX 70 L | Dimensional drawing [mm]
