4.3.4 I/O (X3)

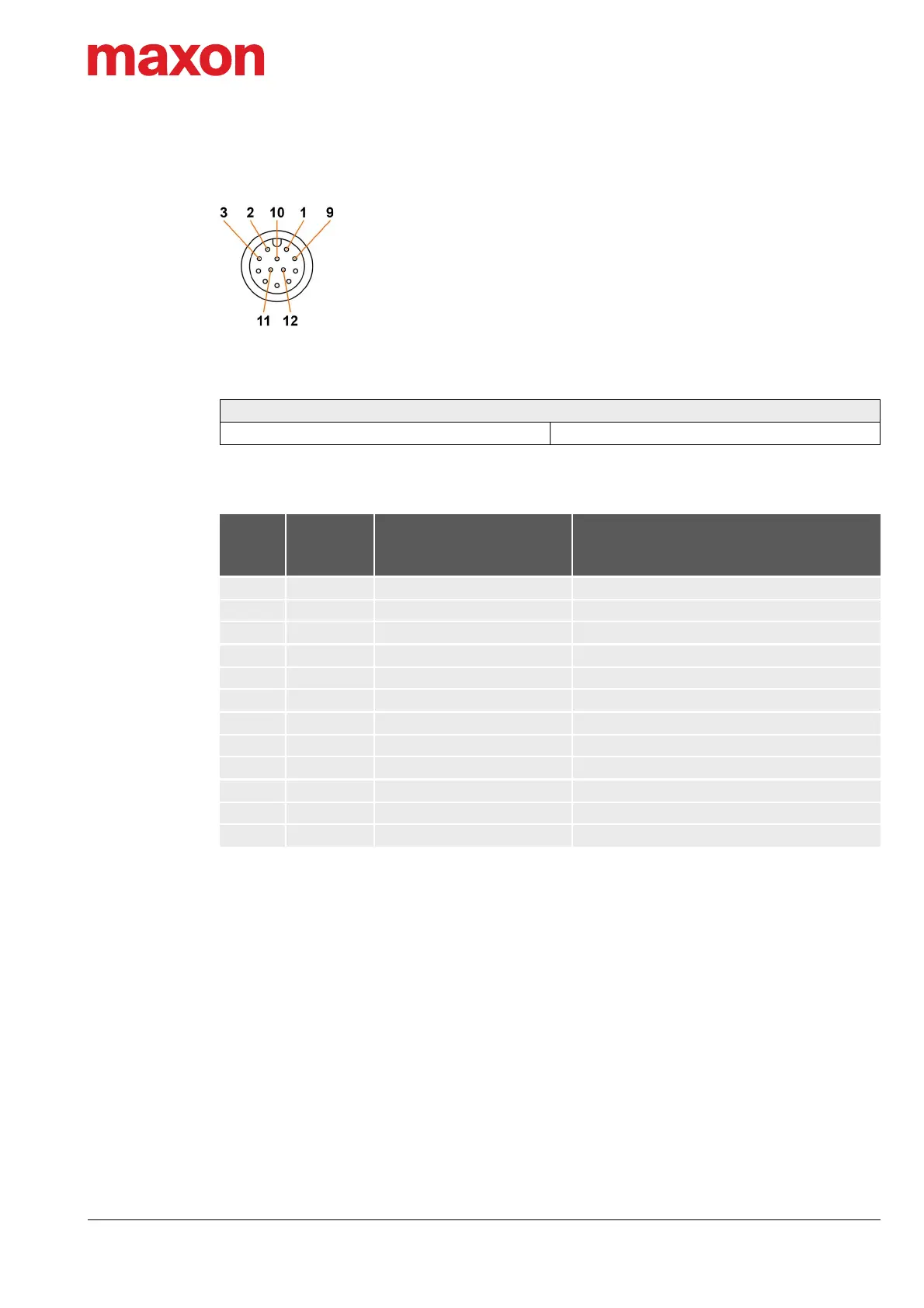

Figure 4-16 I/O connector X3

Table 4-18 I/O connector X3 – Specification

Table 4-19 I/O connector X3 – Pin assignment

For suitable prefab cable assemblies see Table 4-9 on page 4-27.

Continued on next page.

I/O connector X3

Type M12, male, 12 poles, A-coded

Head A

Prefab

cable

Signal Description

Pin Color

1 brown AnIN1+ Analog input 1, positive signal

2 blue GND I/O ground

3 white AnIN1− Analog input 1, negative signal

4 green AnIN2+ Analog input 2, positive signal

5 pink DigIN1 Digital input 1

6 yellow AnIN2− Analog input 2, negative signal

7 black DigOUT1 Digital output 1

8 gray DigIN2 Digital input 2

9 red DigIN3 Digital input 3

10 violet DigOUT2 Digital output 2

11 gray/pink DigIN4 Digital input 4

12 red/blue +VI/O I/O supply voltage (+20…+30 VDC)
