4.3.5 Supply (X4)
Adjustable power connector
The IDX can be ordered in two types—with straight or with angled power connector X4. The angled type
can be rotated up to 90°.
Make sure that the rotated power connector and the attached outgoing cable do not block out or damage
any other connector.

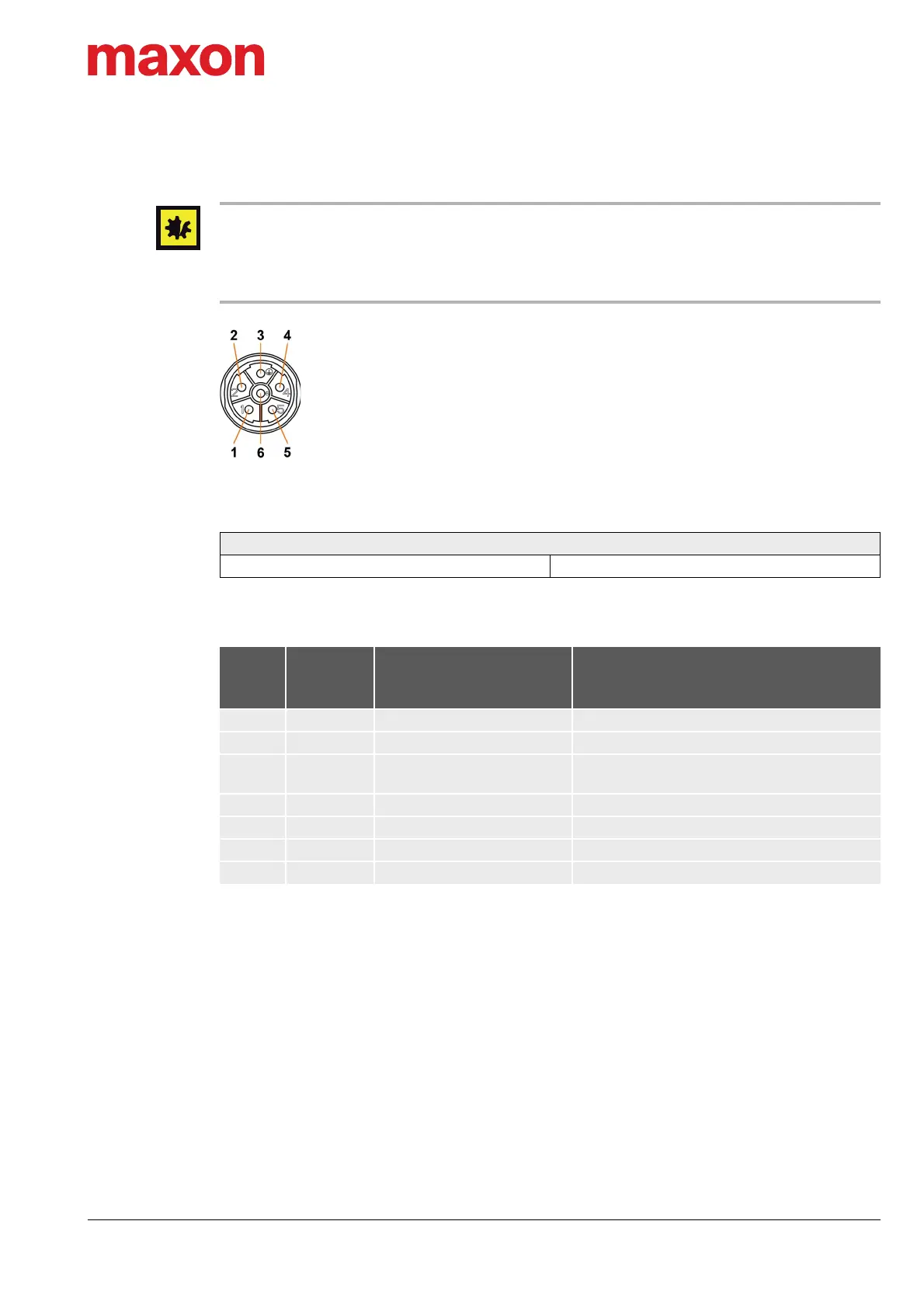

Figure 4-22 Power connector X4
Table 4-25 Power connector X4 – Specification
Table 4-26 Power connector X4 – Pin assignment
For suitable prefab cable assemblies see Table 4-9 on page 4-27.
Continued on next page.
Power connector X4
Type M23x1, male, 6 poles
X4
Head A
Prefab
cable
Signal Description
Pin Color
1 black +VCC Power supply voltage (+12…+60 VDC)
2 black GND Ground
3
green/
yellow
FE Functional earth
4 brown +VC Logic supply voltage (+12…+60 VDC)
5 white +VI/O I/O supply voltage (+20…+30 VDC)
6 black — Not connected
— Housing Shield Cable shield
