4.3.2 CAN OUT (X2)

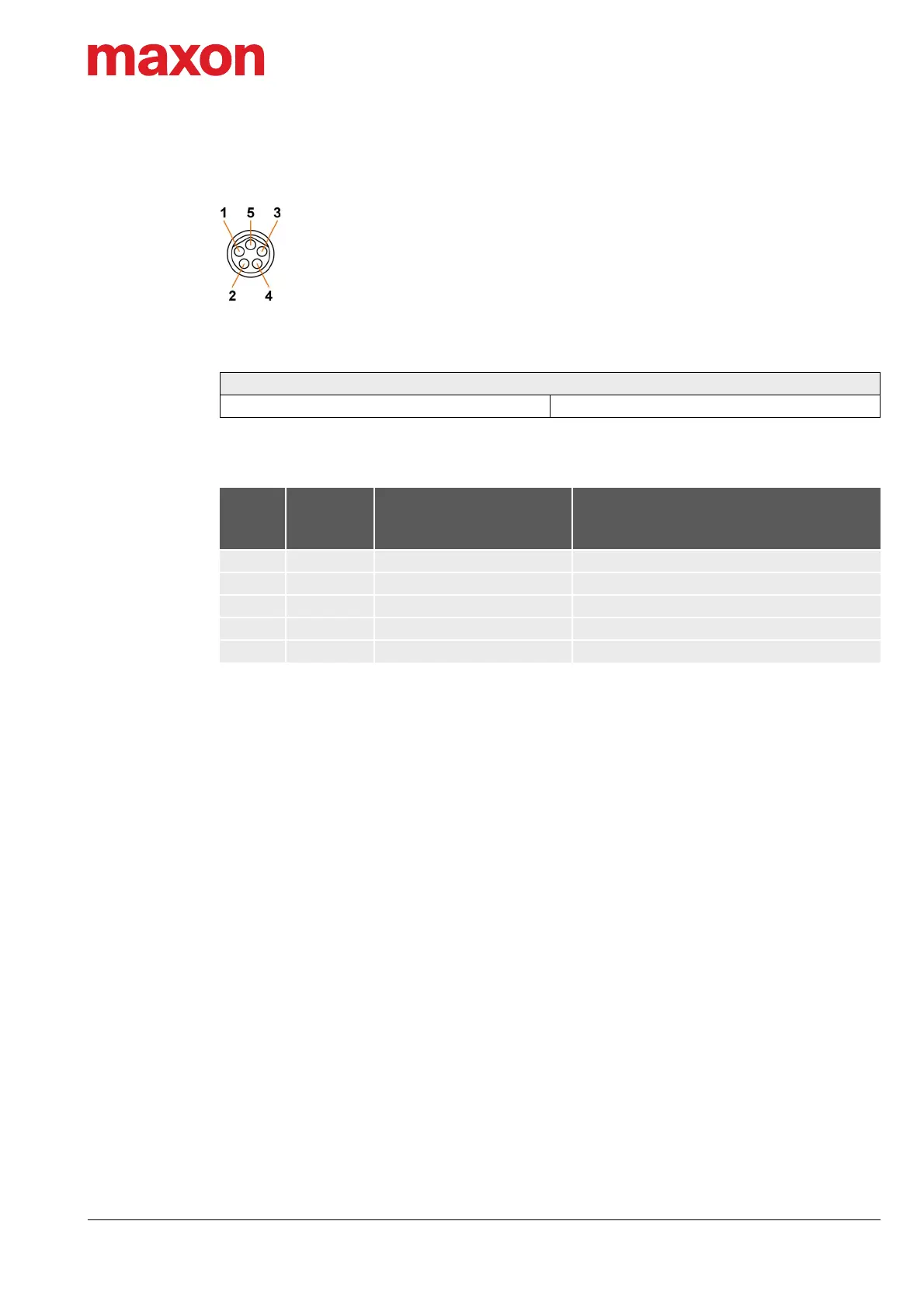

Figure 4-14 CAN OUT connector X2
Table 4-13 CAN OUT connector X2 – Specification
Table 4-14 CAN OUT connector X2 – Pin assignment
For specifications on the CAN interface and details on CAN bus termination see chapter “4.3.1 CAN IN
(X1)” on page 4-30.
For suitable prefab cable assemblies see Table 4-9 on page 4-27.
CAN IN connector X2
Type M8, female, 5 poles, B-coded
X2
Head A
Prefab
cable
Signal Description
Pin Color
1 red CAN_V+ CAN external supply voltage
2 — CAN_SHLD CAN shield
3 white CAN_H CAN high bus line
4 blue CAN_L CAN low bus line
5 black CAN_GND CAN ground
