4.4 Status Indicators

The IDX features LED indicators to display the device condition.

A NET status; the LED displays communication RUN states and errors conditions

B Device status; the LED displays the device’s operation status and error conditions

C EtherCAT port; the LEDs display the NET link activity

For detailed information see separate document «IDX Firmware Specification».

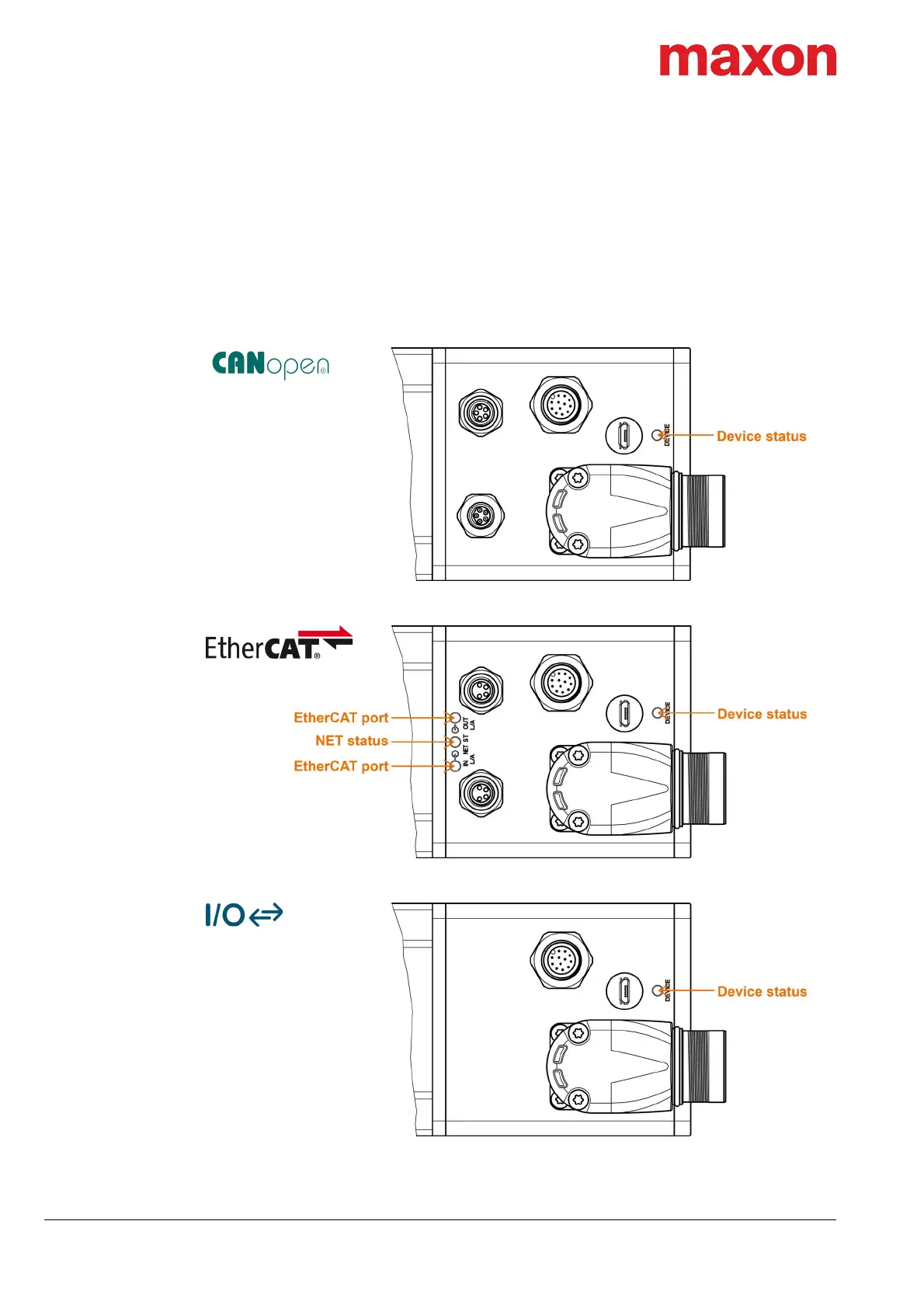

Table 4-33 LEDs
