4.5 Wiring Diagrams
USB adapter
The use of a galvanic isolated USB adapter is highly recommend.
4.5.1 IDX 70 Drive / Positioning Controller / CANopen

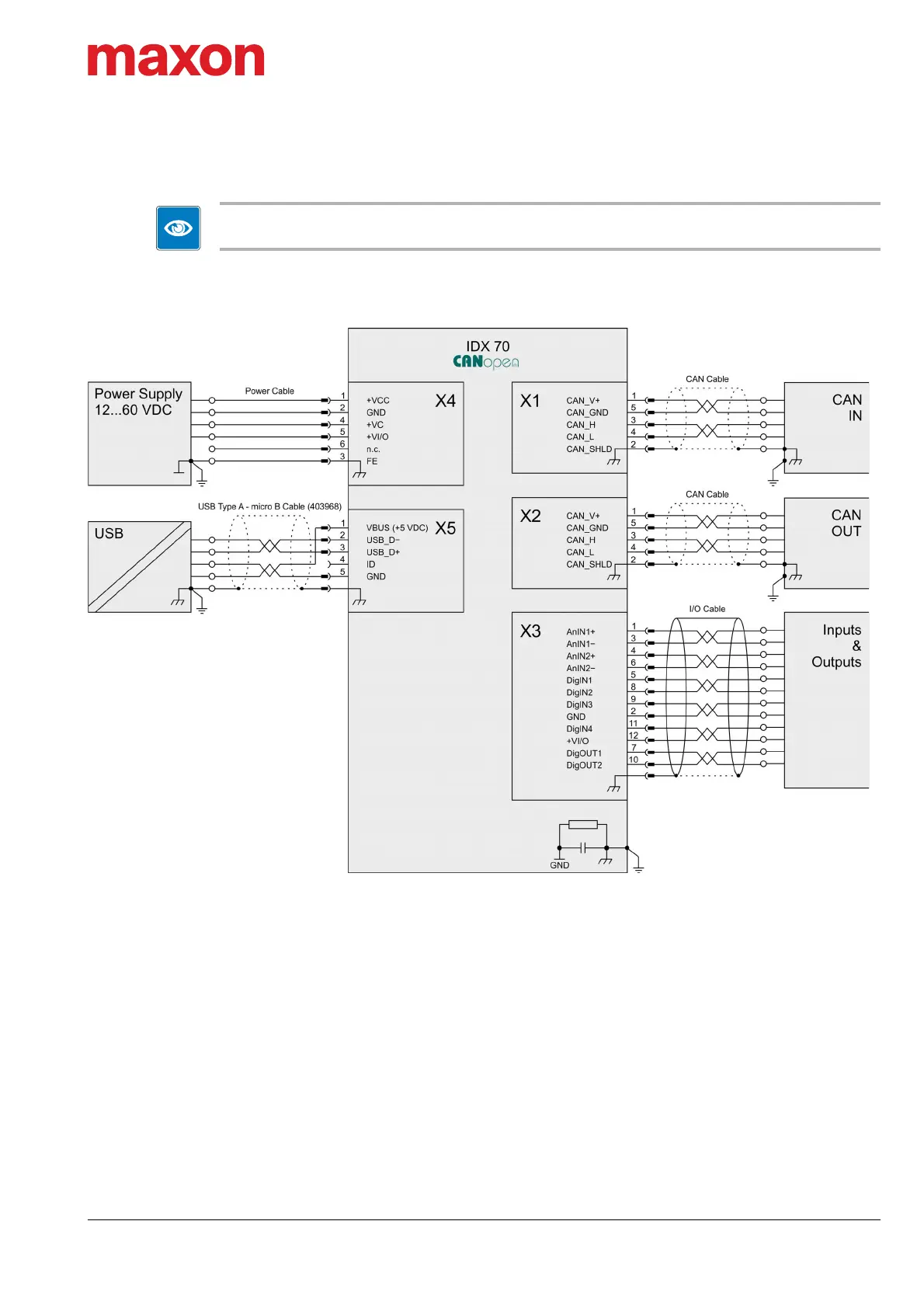

Figure 4-25 IDX 70 Drive with positioning controller and CANopen interface – wiring diagram
