Maxon IDX 70 - Connections

Electrical Installation
Connections
IDX 70 User Manual
4-28 mmag | 2022-04 | rel10520
4.3 Connections

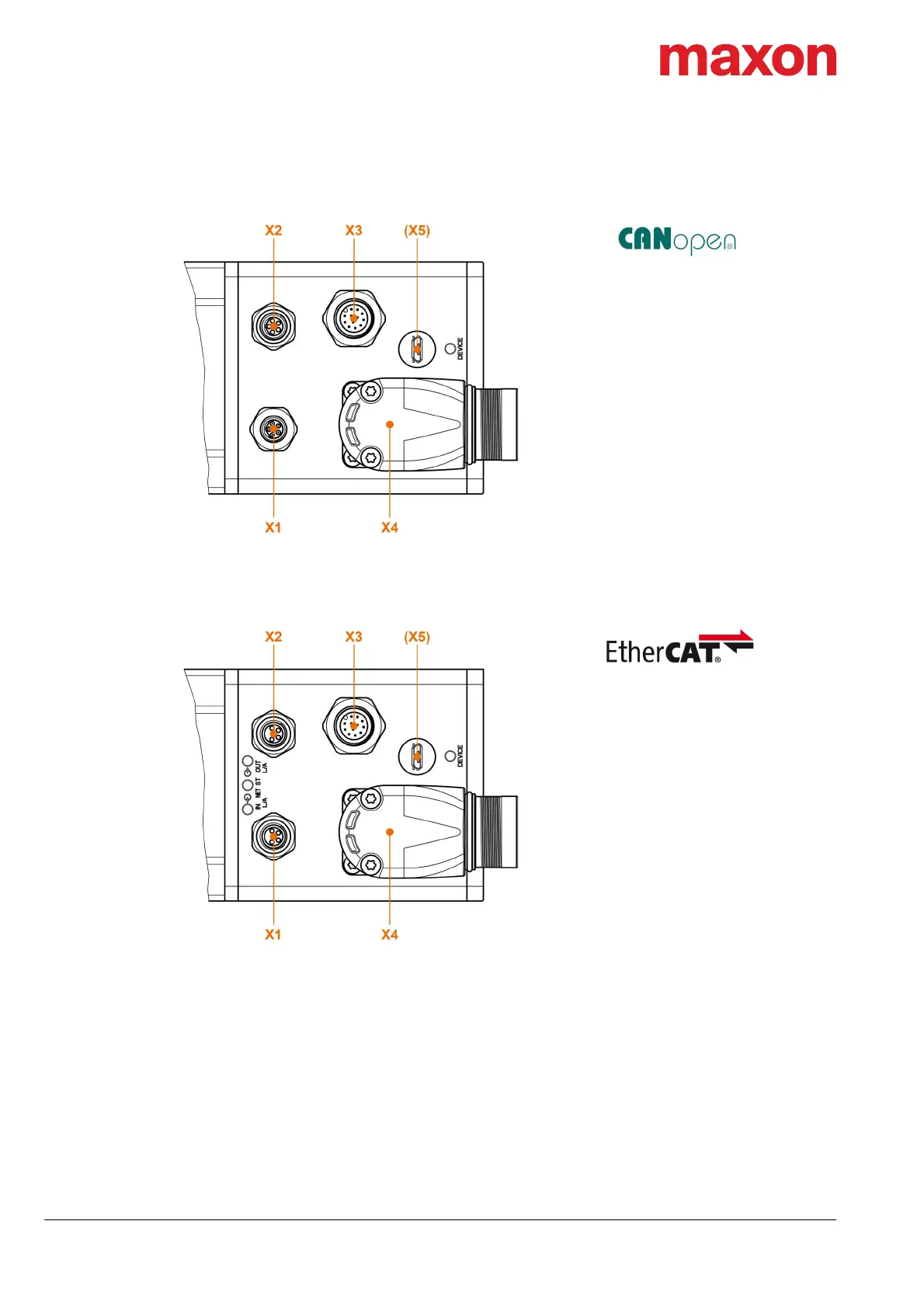

Figure 4-10 Connectors | IDX 70 CANopen
Figure 4-11 Connectors | IDX 70 EtherCAT
X1
X2
X3
X4
X5
CAN IN page 4-30
CAN OUT page 4-31
I/O page 4-33
Supply page 4-37
USB page 4-40
(behind the sealing cap)
X1
X2
X3
X4
X5
EtherCAT IN page 4-32
EtherCAT OUT page 4-32
I/O page 4-33
Supply page 4-37
USB page 4-40
(behind the sealing cap)
