Electrical Installation
Wiring Diagrams
IDX 70 User Manual
4-46 mmag | 2022-04 | rel10520
4.5.2 IDX 70 Drive / Positioning Controller / EtherCAT

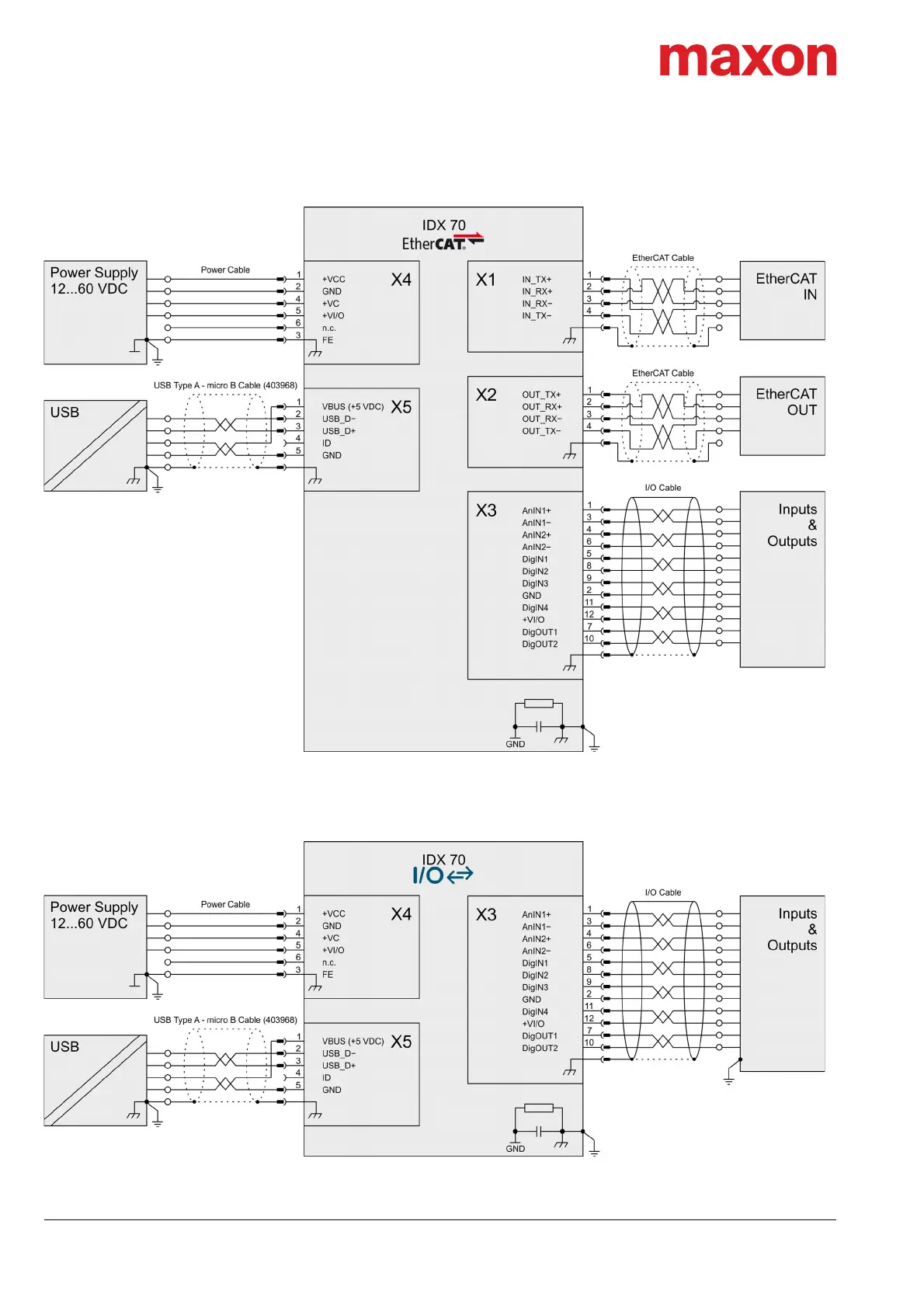

Figure 4-26 IDX 70 Drive with positioning controller and EtherCAT interface – wiring diagram
4.5.3 IDX 70 Drive / Speed Controller / I/O
Figure 4-27 IDX 70 Drive with speed controller and I/O interface – wiring diagram
