Electrical Installation
Connections
IDX 70 User Manual
4-36 mmag | 2022-04 | rel10520
Table 4-24 Analog input specification

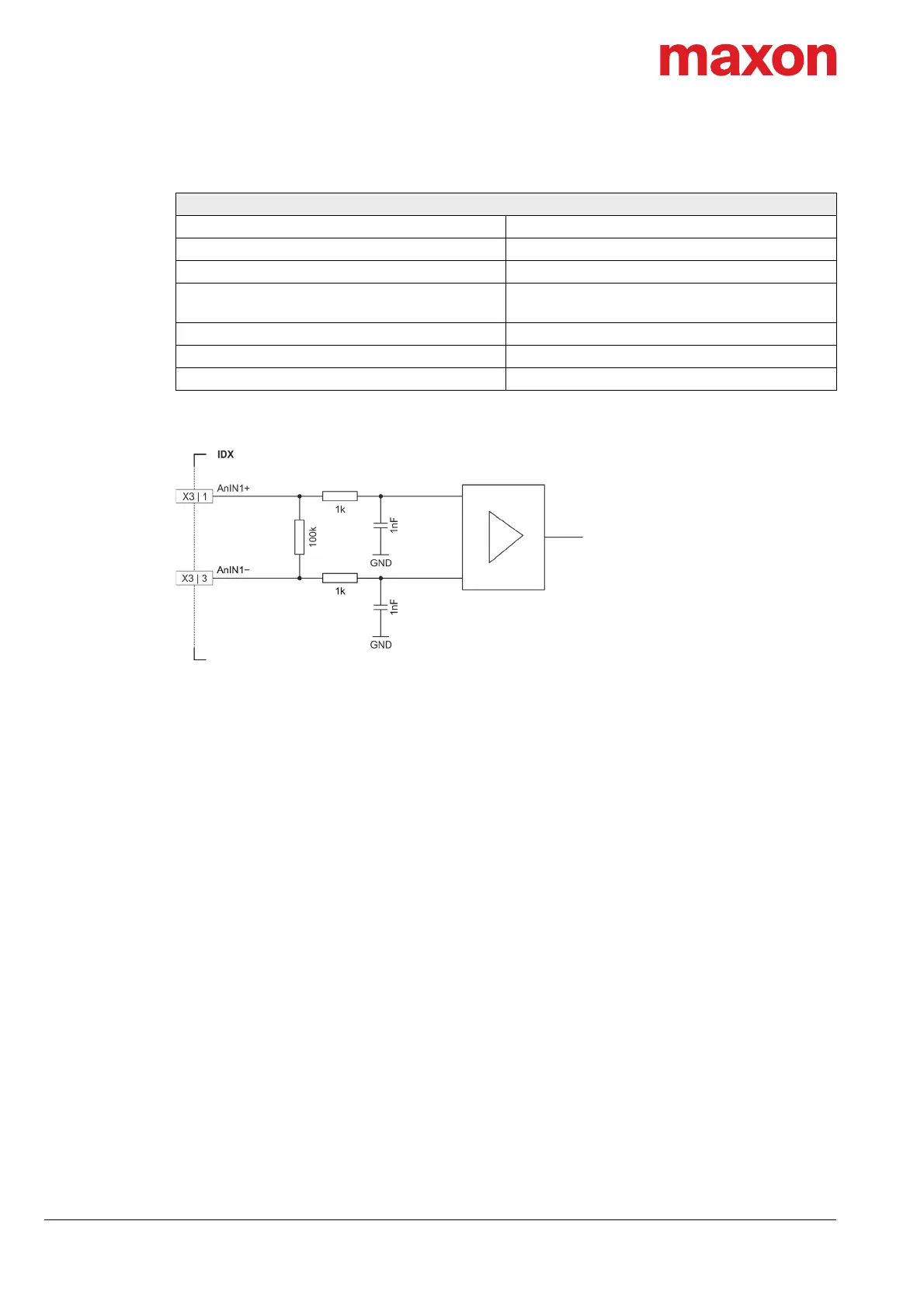

Figure 4-21 AnIN1 circuit (analogously valid for AnIN2)
Analog inputs 1…2
Input voltage ±10 VDC (differential)
Max. input voltage ±24 VDC
Common mode voltage −5…+10 VDC (referenced to GND)
Input resistance
80 kΩ (differential)
65 kΩ (referenced to GND)
A/D converter 12-bit
Resolution 5.64 mV
Bandwidth 10 kHz
