GENERAL INFORMATION
00–00–9
00–00
ELECTRICAL SYSTEM
E5U000000000E04

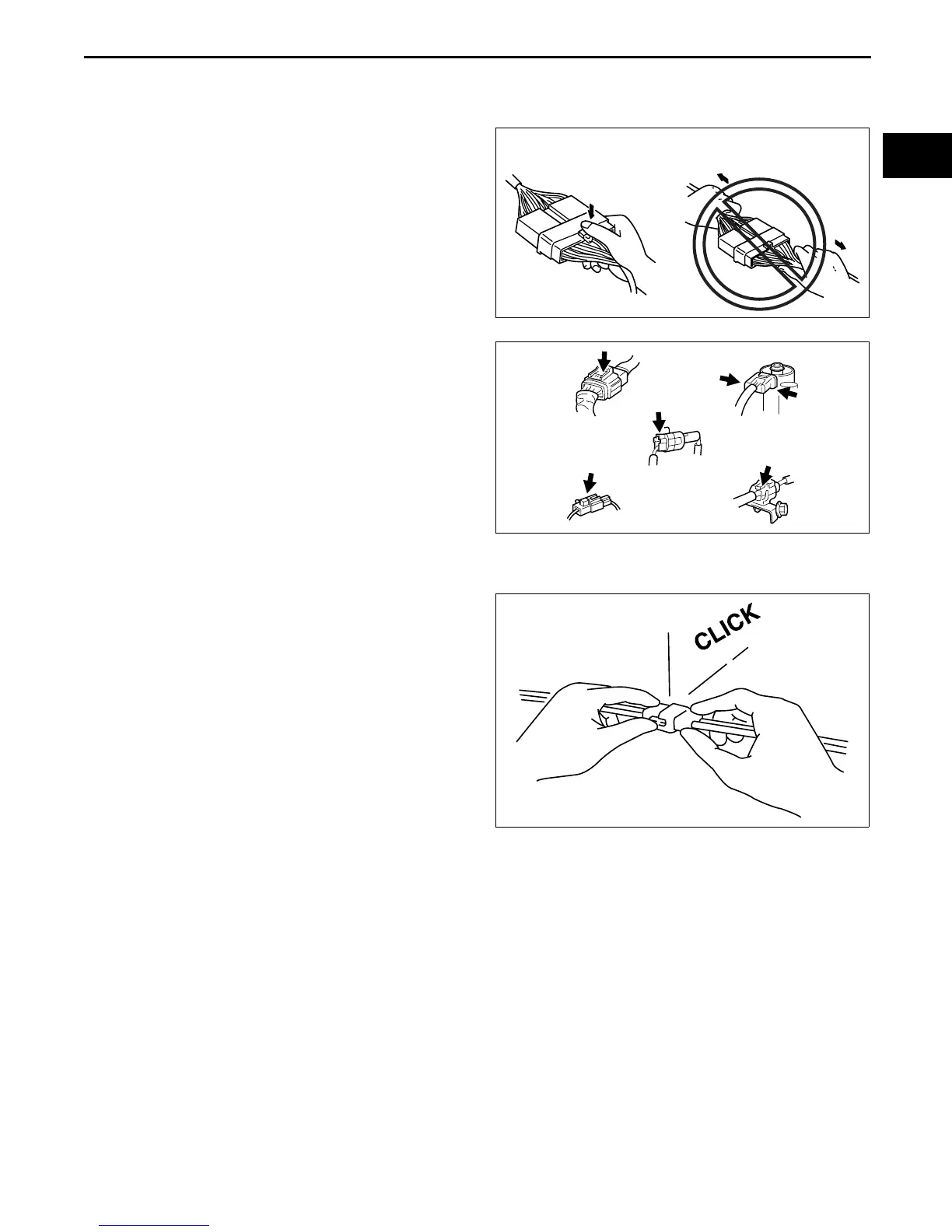

Connectors
Disconnecting connectors
• When disconnecting connector, grasp the
connectors, not the wires.
• Connectors can be disconnected by pressing or
pulling the lock lever as shown.
Locking connector
• When locking connectors, listen for a click
indicating they are securely locked.
GOOD
NO GOOD
CHU0000W014
WGIWXX0042E
WGIWXX0043E
