MECHANICAL
01–10–40

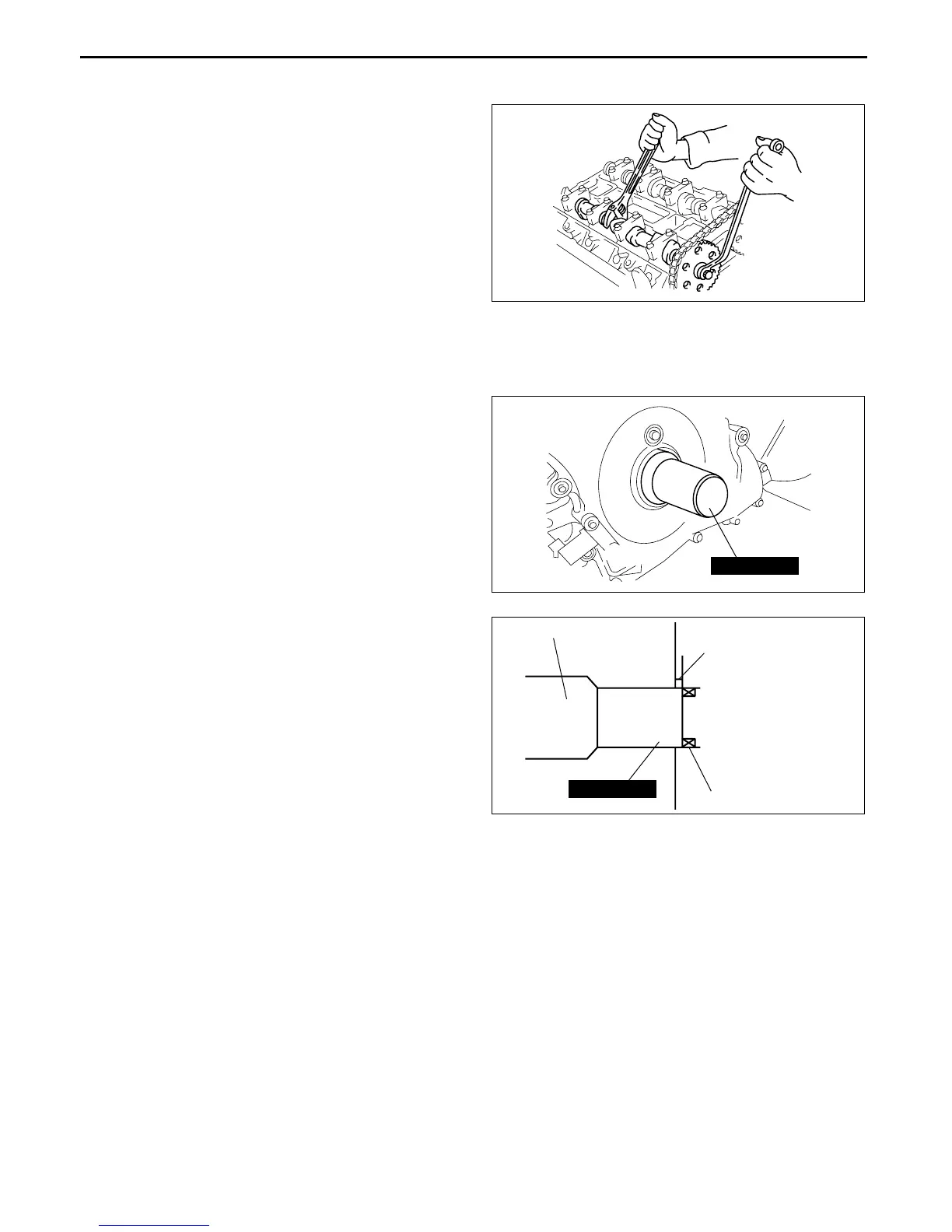

Camshaft Sprocket, Variable Valve Timing Actuator Assembly Note
1. Hold the camshaft using a suitable wrench on the cast hexagon as shown in the figure.
2. Tighten the camshaft sprocket lock bolt.
Tightening torque
69—75 N·m {7.1—7.6 kgf·m, 50.9—55.3
ft·lbf}
Front Oil Seal Assembly Note
1. Apply clean engine oil to the oil seal.
2. Push the oil seal slightly in by hand.
3. Compress the oil seal using the SST and a
hammer.
B3E0110E095
49 H010 401
B3E0110E127
HAMMER
FRONT OIL SEAL
ENGINE FRONT COVER
49 H010 401
0—0.5 mm
{0—0.019 in}
E5U110ZE7S09
