Mazda 2006-2008 RX7 Engine - Rear Oil Seal Assembly Note; Drive Plate (ATX), Flywheel (MTX) Assembly Note

MECHANICAL
01–10–33
01–10

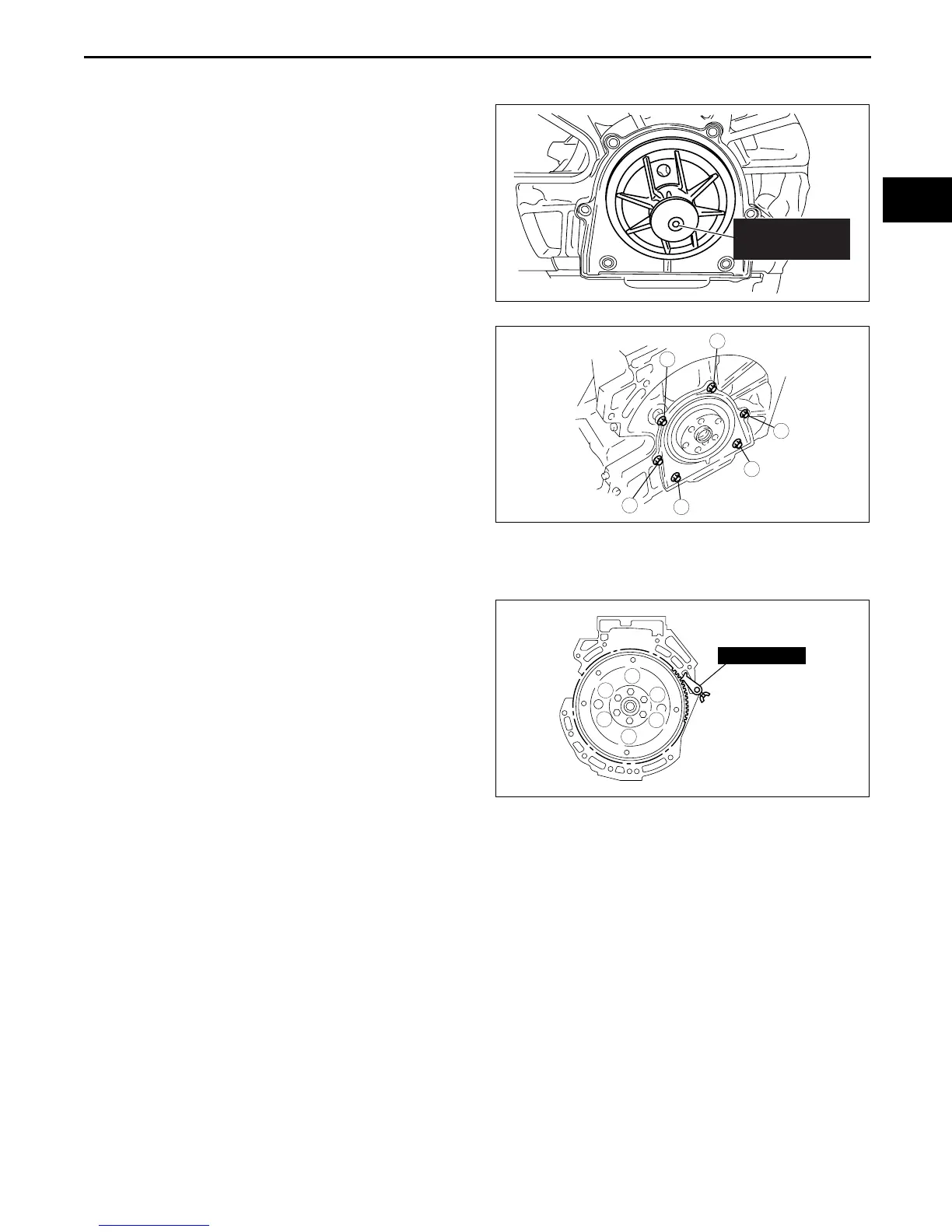

Rear Oil Seal Assembly Note
1. Apply clean engine oil to the new oil seal lip.
2. Install the rear oil seal using the SST as shown in
the figure.
3. Tighten the rear oil seal bolts in the order as
shown in the figure.
Tightening torque
8.0—11.5 N·m
{81.6—117.2 kgf·cm, 70.9—101.7 in·lbf}
Drive Plate (ATX), Flywheel (MTX) Assembly Note
1. Hold the crankshaft using the SST.
2. Tighten the bolts in the 3 steps in the figure.
Tightening torque
(1) 46—54 N·m
{4.70—5.50 kgf·m, 34.0—39.8 ft·lbf
(2) 76—84 N·m
{7.75—8.56 kgf·m, 56.1—61.9 ft·lbf
(3) 108—116 N·m
{11.1—11.8 kgf·m, 79.7—85.5 ft·lbf
303-328
(49 UN30 3328)
CUE110BW2005
5
4
3
1
2
6
B3E0110E116
5
4
3
1
2
6
49 E011 1A0
B3E0110E119
